BOILING POINT OF ENGINE COOLANTS-ASTM D1120

Compliance Standards

ASTM D1120

Applications

Covers the determination of the equilibrium boiling point of engine coolants. The equilibrium boiling point indicates the temperature at which the sample will start to boil in a cooling system under equilibrium conditions at atmospheric pressure.

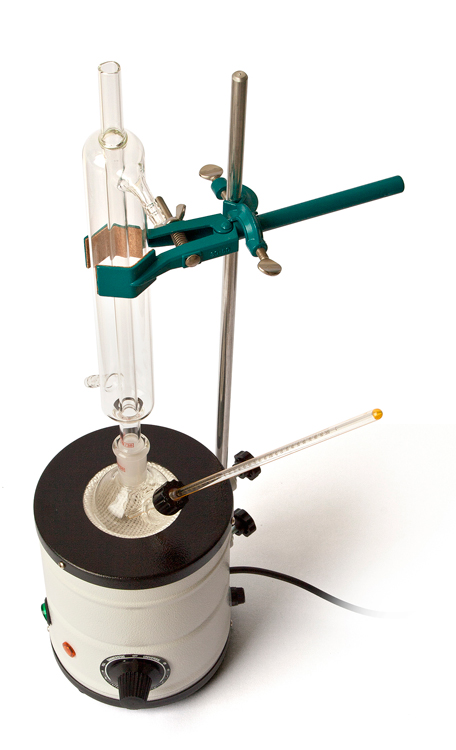

Details of apparatus

 Complete apparatus consists of following parts and accessories

1)  Flask

100 ml round-bottom short-neck, heat resistant glass flask with standard taper, female ground-glass joint and side-entering tube for the introduction of the thermometer

2)  Condenser

• Water-cooled
• Reflux glass-tube type

3)  Heating mantle

• Temp controlled by Energy regulator
• Supplied complete with rod, clamp and pliers
• Operation on : 230 volts, 50 hz, Single phase, AC Supply

4)  Thermometer

• ASTM 2C
• Equivalent to IP 62C
• Temp range : -5 to 300 °C x 1 °C
