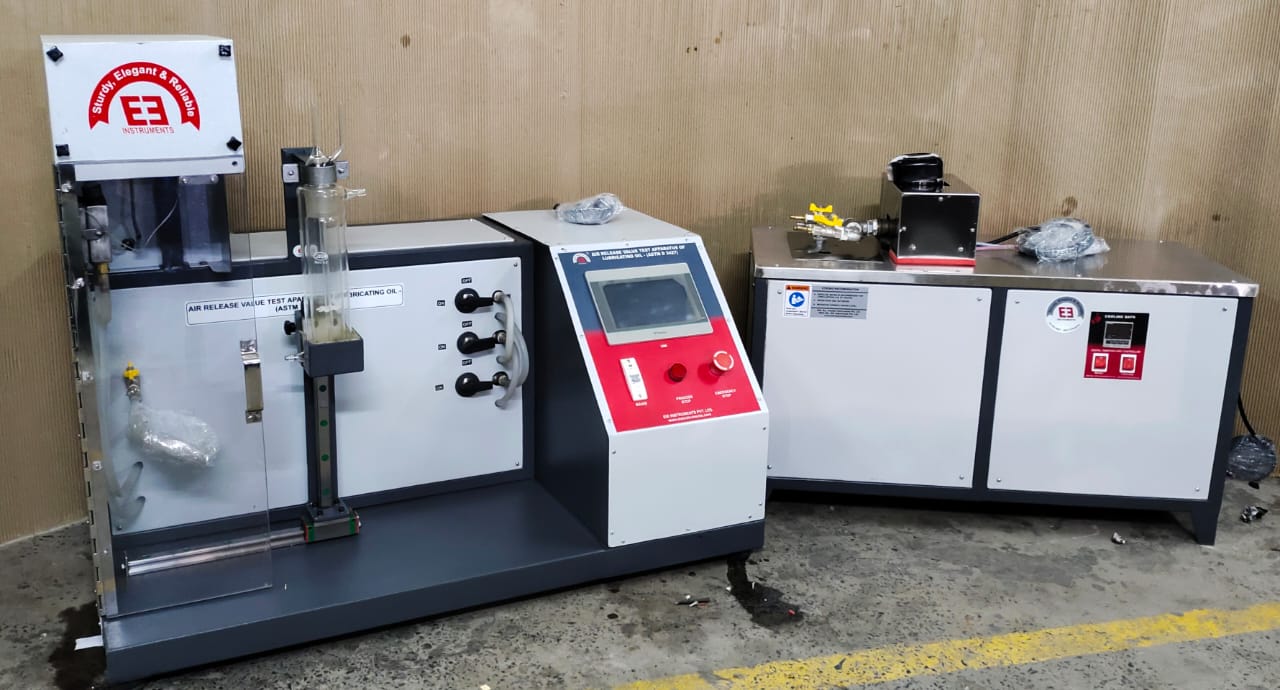

AIR RELEASE VALUE TEST APARATUS OF LUBRICATING OIL - (ASTM D3427)
Model Number : EIE-PTLT-125
Detailed Specification Please refer after commercial Part.
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
Compliance with following International Standards:
ASTM D3427, IP 313 and IS : 1448 (P‑102)
Purpose:
The ability of turbine, hydraulic, or lubricating oil to separate entrained air is a key performance characteristic in applications where agitation causes a dispersion of air bubbles in the oil. To determine air release properties, the sample is heated to a specified test temperature and blown with compressed air. After the air flow is stopped, the time required for the air entrained in the oil to reduce in volume to 0.2% is the air bubble separation time.
Construction Details :
The entire assembly consists of following parts and accessories to form the complete test apparatus.
- The main unit comprises of an air heater, fine control pressure regulator (Flow meter), pressure gauge, and mounting clip for the test vessel.
- Steel wire for sinker suspension
- Moisture trap
- Pressure gauge specifications : 0.35KPa with divisions at least every 2KPa and an accuracy of 1.5KPa with needle valve
- Manual lifting in slider area to move test vessel from air source to sinker facility
- Integrated touch screen programmable controller with data logging facility
- Integrated Digital automated density balance with stand and sinker to directly measure the density value
- Integrated Digital constant temperature circulating bath with circulating pump of flow rate 10 LPM
- Automatic calculation of final sample density for determination of air release value
Technical Specifications of Density Balance:
- Capacity : 220 grams
- Readability : 0.1 mg
- Repeatability : 0.2 mg
- Linearity : 0.2 mg
- Pan size : 90 diameter
- Response time (sec) : <5‑8
- Calibration : Auto calibration
- Supplied with under weighing hook and steel wire for sinker suspension
Technical Specifications of circulating waterbath:
- Excellent control accuracy and uniformity due to its modular and innovative design.
- Outer chamber is made from Galvanized Sheet ‑ which is powder coated in attractive shades
- Inner chamber is fabricated from S.S.304 ‑ Mirror polished material
- Fully argon welded design
- 50mm thick Glass wool Insulation is provided between the inner chamber and exterior body to prevent the direct thermal loss
- Specially designed immersion Heater for heating within the set point temperature
- ISI marked immersion Heater ‑ U shaped
- Built ‑ in boost for initial heating
- Temperature Range : Ambient + 5 °C to 120 °C
- Temperature Accuracy : ± 0.1 °C at 20 °C, 50 °C & 75 °C
- Temperature Uniformity : ± 0.2 °C at 37 °C
- Overall size : 57 cm L x 30 cm W x 22 cm D
- Working size : 35 cm L x 30 cm W x 17.5 cm D
- Bath Volume : 18 Liters
- Rating : 1.5 KW
- Stirring is achieved by an efficient, continuously rated, self cooling motor with SS shaft and propeller of anti ‑ corrosive Material,
- Stirrer is fitted on side of the bath allowing obstruction free usage of working area.
- Circulatory Pump to circulate the bath water to external apparatus
- Entire instrument Works on 230 Volt, 50 Hz, Single phase, AC Supply
