COMPARATOR BOX WITH MANUAL OBSERVATION - SINGLE APERTURE - ASTM D1500

COMPARATOR BOX WITH MANUAL OBSERVATION - SINGLE APERTURE - ASTM D1500

Model Number : EIE-PTLT-119.1A

  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton

Compliance with following International Standards

ASTM D1500, IP-19, IS 1448 (P-12)


Application

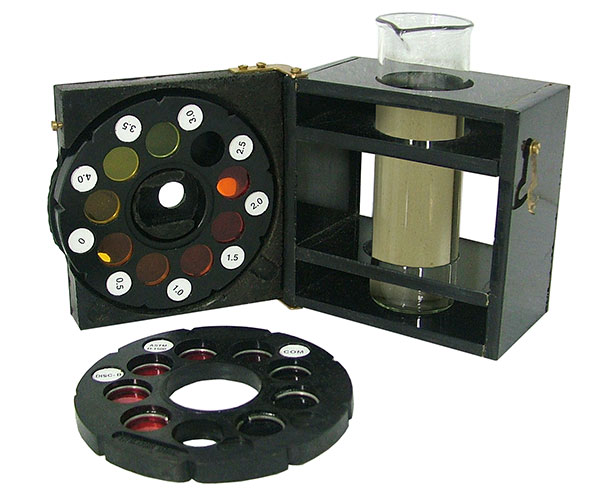

To determine the color of Lubricating oil test samples. The sample under test is taken into 33 mm diameter test tube and is placed inside the comparator. The discs are then rotated until a match is obtained. A direct reading is then made in a graded scale.


Details:

  1. Manual Observation
  2. Box made up of CRC Body powder coated in attractive shades.
  3. Single Aperture windows
  4. Single eye pieces in front
  5. Supplied Complete with 02 Nos. color discs and 01 Nos. test tube.
  6. Glass tube  : 33 mm Inner diameter
  7. Supplied complete with 02 Nos. color discs as per following range.

       (1) Disc A : Range : 0, 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0

       (2) Disc B : Range : 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0
