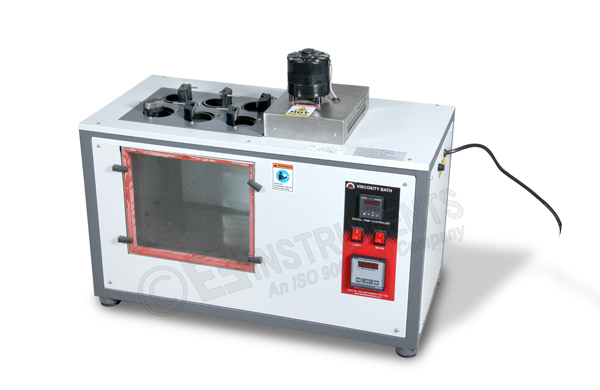

KINEMATIC VISCOSITY BATH
Model Number : EIE-PTLT-109AA4

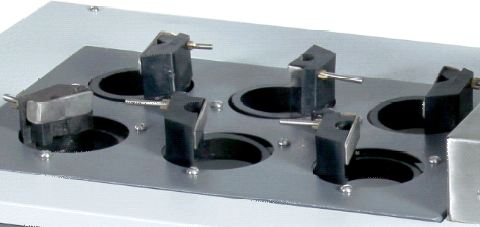

Used for determination of kinematic and intrinsic viscosity of Petroleum products, Bitumen, emulsion and allied materials at constant temperatures in Accordance with ASTM D 445/IS:1206 and other equivalent methods Double walled, outer chamber made of CRC powder coated with toughened Glass window panel, inner chamber made of S.S, FHP motorized stirrer for uniform Temperature, Dual Display Microprocessor Based Digital Temp. Controller with PT–100 sensor.Temperature range from 5° C above ambient to 120° C. Resolution and Control Accuracy ± 0.1°C(at 40°C). Complete with Low wattage lighting Attachment, Universal Viscometer Holder, Viscometer Tray. Built in Digital Stop watch and Calibration certificate with traceability. Working on 230 V single phase. The Viscosity bath can be supplied Digital temp.controller having resolution of 0.01°C at extra cost. Glass U Tube Viscometer with certificate of constant and Glass Thermometers are also available at extra cost
TYPE OF BATH
- ABOVE AMBIENT
- BELOW AMBIENT
NUMBER OF HOLES FOR VISCOMETER
- 2 VISCOMETER
- 3 VISCOMETER
- 4 VISCOMETER
- 6 VISCOMETER
- 8 VISCOMETER
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
Compliance with Following International Standards :
IP 71, ASTM D445, ASTM D446
Purpose :
Used to determine the viscosity of oils and fuel, above room temperature up to a maximum of 120 °C. Generally used @ 40°C but can also be used at any other temperature between measuring range. Can also be used for other application where full visibility of sample and constant temp. is important for the test.
Construction :
- Compact and self contained unit
- Rectangular shape
- Double walled unit with Glass wool insulation
- Inner Chamber is made of stainless steel (SS - 304)
- Outer body made of G.I. Powder Coated
- With toughened glass window panel / Heat resistant
- Observation Window on both sides (Front & Rear)
- Inner chamber is equipped with slow speed motorized stirrer
- Accommodates 4 (FOUR) Viscometers
- Work space illuminated brilliantly without glare
- Temp is controlled by Digital Microprocessor based PID Controller with certificate of calibration
- All electrical controls are mounted on a drawer chassis in the side part of the case of the bath.
- DIGITAL STOP WATCH is mounted on the control panel to precisely observe the elapsed time for fulid passing from viscometer lower mark to upper mark or vice versa
- Designed for easy cleaning and simple maintenance
- Built-in boost for initial fast heating
- Glass U Tube Viscometers of various size and shapes available. These are to be procured at extra cost.
- Digital temperature controller with resolution of 0.01 °C is also available. Price on request.
Technical specification
Temperature Range |
Ambient + 5 °C to 120 °C |
Temperature Accuracy |
@ 40 °C ± 0.1 °C |
Temperature Display |
LED Digital display |
Temperature controller |
Microprocessor based DIGITAL PID Controller |
Temperature Resolution |
0.1 °C |
Power Supply |
230 Volts, 50 Hz, Single Phase, AC Supply |
RELEVANT STANDARD |
ASTM D445 |
Temperature sensor |
PT-100 Sensor |
Heater Rating |
2000 watts |
Sample Holder |
65mm dia size |
Working Chamber Size |
270L x 220W x 350 D (mm) |
Chamber volume |
28Liters |
Overall Dimensions |
645 L X 355 B X 610 H (mm) |
Weight (Approx.) |
29 KG |
