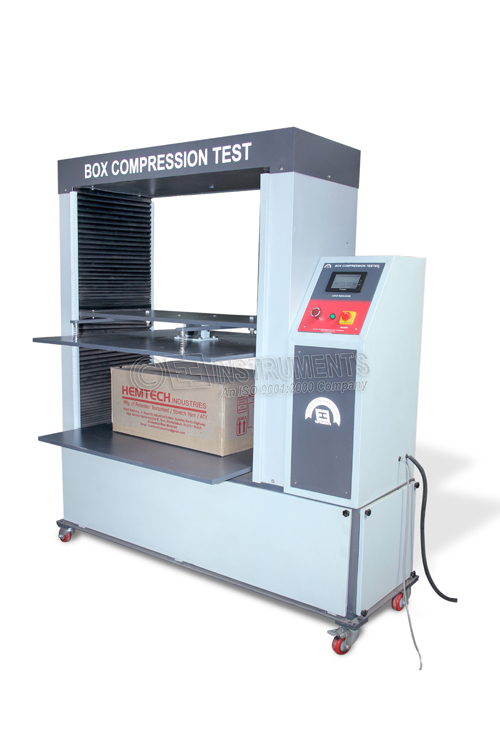

BOX COMPRESSION STRENGTH TESTER-2000 X 1000 MM-

Name: BOX COMPRESSION STRENGTH TESTER-2000 X 1000 MM-
Rating: 4.4 (89 reviews)

Model No: PT-103DP200

Digital Display - (Auto Calculation). Compliance standards IS : 7028 (Part ‑ VI), IS : 7028 (Part ‑ IX), ASTM D4577, ASTM D642, TAPPI : T804. Detailed specification as follows:

Salient Features

Digital Electro ‑ mechanical model.
Digital Model with Backlit LCD Display for easy readability
Direct Display of Load / Collapsing Force & Deflection/Compression
No Calculations Required
Auto‑stop upon completion of Test
Unlimited programmable memories
Continuous rate of Loading
Stepper Motor controlled operation
2/4 load cells for highest accuracy
Selectable compression units N/Kgf/KN
RS‑232 data output facility
PC Software (See optional accessories)
Reputed make electric motor and its drive
Supplied complete with calibration certificate of Load cell traceable to National Standards
Also, supplied complete with instruction manual and IQ/OQ/PQ Documents (For pharma industries)

Testing Principle

Constant Rate of Loading With non‑destructive testing facility for cartons at predetermined load. Unlimited programmable memories

Utilities Required (To be supplied by the buyer)

Power Supply : 440 Volts, 50 Hz, 3‑Phase AC Supply (Fluctuation Free Power required)
100 Kg Cast Iron Weights (In any combination. Preferably, 20kg x 5 nos). These weights are required for calibration at the time of installation and then every 6‑months for routine calibrations.

Loading Capacity	1000 Kgf
Least count	200 Grams (0.2 Kg)
Display	Touch screen HMI
Controlling System	PLC (programmable logic controller)
Suitable for a Testing Range	10 - 1000 Kgf
Auto Calibration facility	At 100 Kgf
Machine Platform Size	2000 x 1000 mm (Approximately)
Speed Range	0.01 - 70 mm/min
Operating Speed	10 ± 3 mm/min
Can accommodate Max Carton	1850 x 950 x 950 mm can be accommodated
Unit Selection	N / Kgf / KN
Power Supply	440 Volts, 50 Hz, 3 Phase AC Supply
