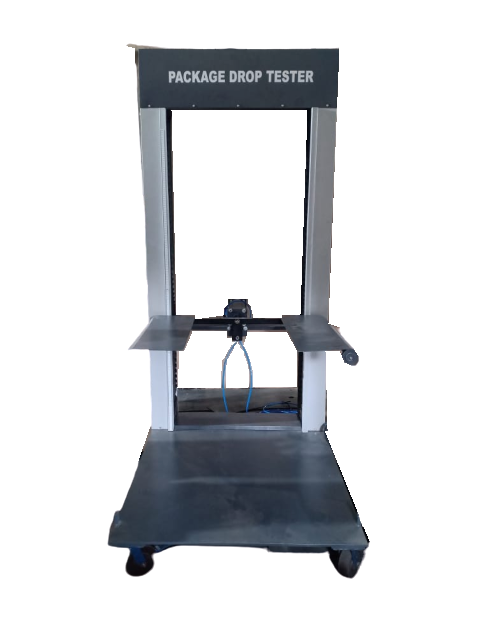

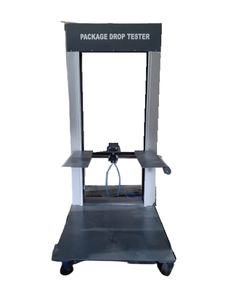

PACKAGE DROP TESTER-MOTORIZED HEIGHT ADJUSTMENT-WITH PNEUMATIC RELEASE MECHANISM

Height

1.5meter (Adjustable)

Loads

Up to 60Kgs

Min Drop Height

400mm (0.40 m)

Max Drop Height

1500mm (1.5 m)

Max sample Weight

60 Kg

Mounting table

700mm x 700 mm

Type of tests

Straight Drop, Angular Drop

Safety

Locking pin

Lifting apparatus

Programmable motorized lifting

Operation on

430 volts, 50 hz, three phase, ac supply

Overall Dimensions

1800 X 2100 X 2438 (L X W X H) mm

Weight (Approx.)

650 PER UNIT
