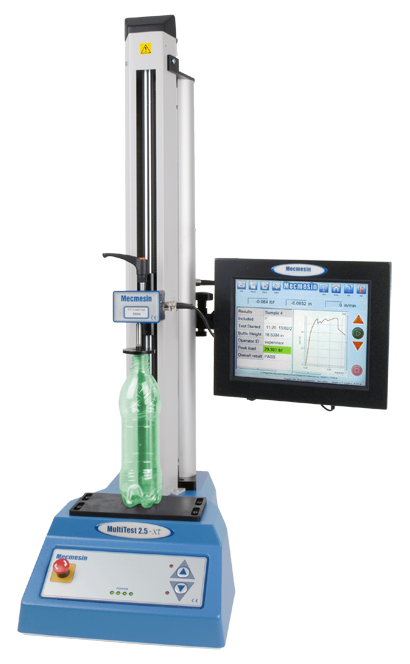

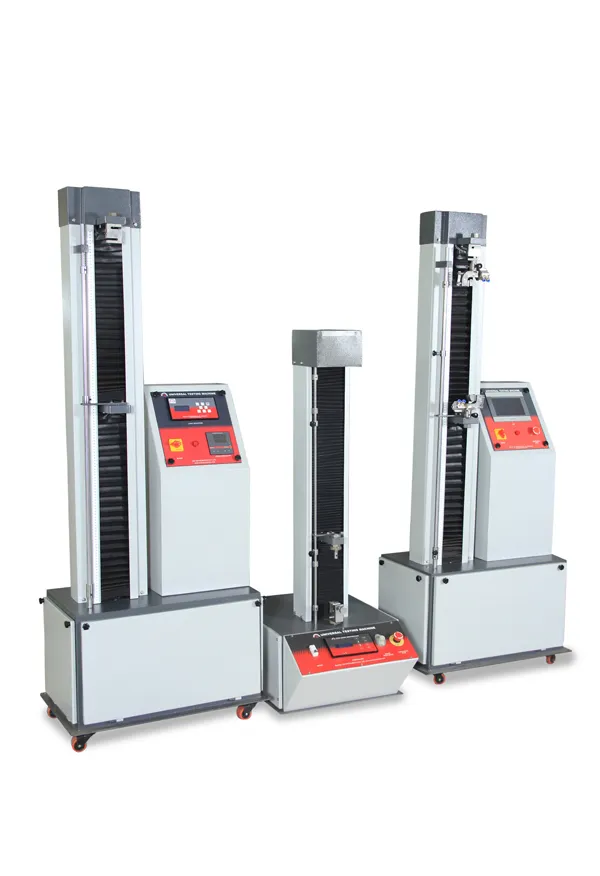

BOTTLE TOP LOAD TESTER - BOTTLE COMPRESSION TESTER
Model Number : EIE-PT-113DS
Detailed Specification as follows:
TYPE OF MOTOR CONTROL
- INDUCTION MOTOR CONTROLLED SYSTEM
- SERVO MOTOR CONTROLLED SYSTEM
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
- Bench top model
- Aesthetic outer appearance
- Unique and compact design features
- High Mechanical Stiffness
- Wide Speed Range
- High precision and improved productivity
- Equipped with combination of Imported PLC & HMI System, Servo Motor and Servo Drive System
- Servo motor Offers High Torque at very Low Speed and High Torque at very High Speed
- Auto reverse upon maximum limit is reached or when sample breaks
- Comes to home position at the end of Auto-reverse
- Precise load cell with Load-cell module for better accuracy
- Equipped with Ball screw for friction less traverse
- Rotary encoder to obtain high accuracy in elongation measurement
- Calibration of entire Machine can be carried out at Very Low Speed as per ISO : 17025 Standard
- Easy to use display unit and software
- On screen display of Maximum Load, Breaking Load, Elongation, and Speed variations
- In‑built Over Load Safety
- In‑built Over Travel Safety
- Auto Reverse facility
- Auto Break
- Specially designed Windows based Graphical Dedicated Software
- RS 232 interface with WINDOW based software to conduct the test directly from software itself
- Can store generated data with corresponding graph
- Can also store Yield Load, Yield Extension, Break Load, Break Extension, Max load and Modulus of Elasticity
- User can export the generated data in various file formats such as i.e. Excel, PDF etc
- Large Storage capacity (More than 50,000 tests) Depending upon Hard Disk capacity.
- User can change the design of generated graphs i.e. Line, Doted line, etc facility in graph
- Graph Grids color combination facility
- Graph zooming facility
- Individual graph comparison facility
- Graph overlapping facility for analysis of material property
- Auto scaling facility
- Company logo insertion facility
- Software can run various tests and can recall data for any test conducted the in history. (If Saved)
- Software is Menu Driven for easy navigation.
- Test reports and graphs directly printed on terminal printer through direct print commands
- Data and Result Units Selectable
- User can operate the machine directly from the software itself
- Please specify the test application at the time of order for preparation of the Test Jaws (Grips) accordingly.
- Only one set of Test jaws will be supplied along with machine. If you need other test jaws, for different applications, then it will cost extra @ Rs 10000/set
- User can also utilize this machine for other then here listed ASTM Standards & test applications complying with suggested speed range and load capacity. Please call us for any clarifications.
Technical specification
|
No. of screws |
Single screw mechanism, Floor standing model |
|
Exterior Body Paint |
Powder coated in attractive shades |
|
Display |
Digital LCD Display |
|
Capacity |
0 - 500 Kgf (0-5000 N) (5 KN) |
|
Load cell |
‘S Type’ load cell of reputed make |
|
Vertical Clearance |
300 mm |
|
Results displayed on screen |
Load, Elongation values, Testing speed and type of test |
|
Least count for elongation |
0.01 mm |
|
Least count for load |
10 grams (0.01 kg) |
|
Speed Range |
From 0.01mm/min to 500mm/min |
|
Load units |
Kg, Newton & KN as per selection |
|
Motor for speed variations |
Servo motor of reputed make |
|
Speed control |
Through Dedicated Servo Drive |
|
Servo Motor Rating |
1 KW |
|
Transformer Ratings |
1 KVA |
|
HMI Screen |
7"/4.3" Touch screen HMI Display |
|
Test jaws |
Compression Jaws as per ISO 8113 |
|
Power Supply |
230 Volt, 50 Hz, Single Phase, AC Supply |
