BOX COMPRESSION STRENGTH TESTER

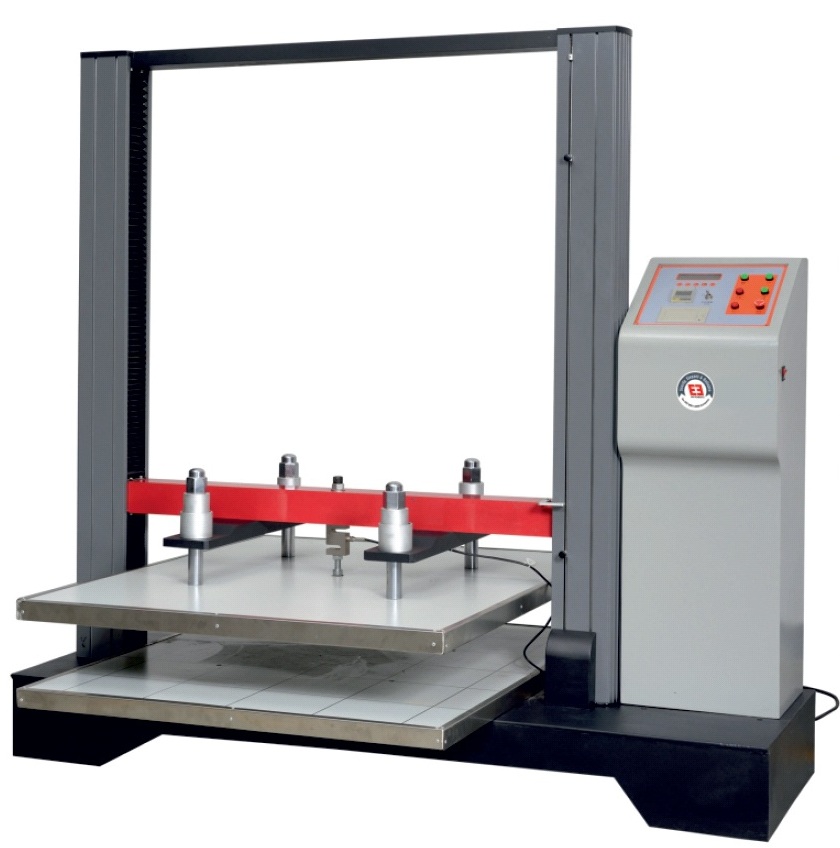

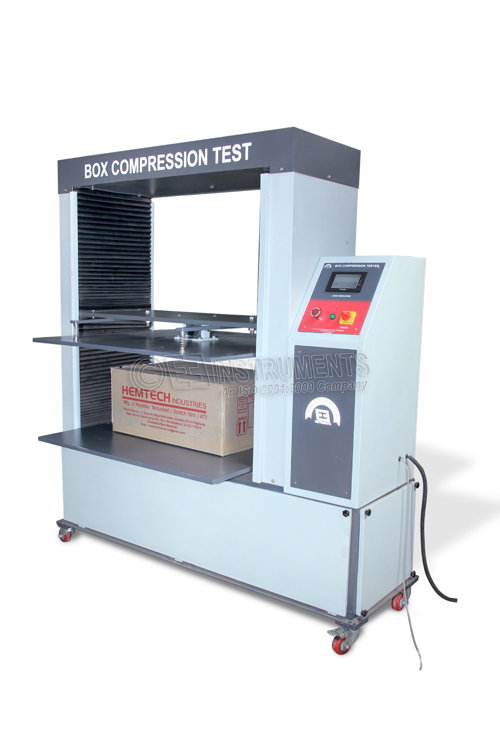

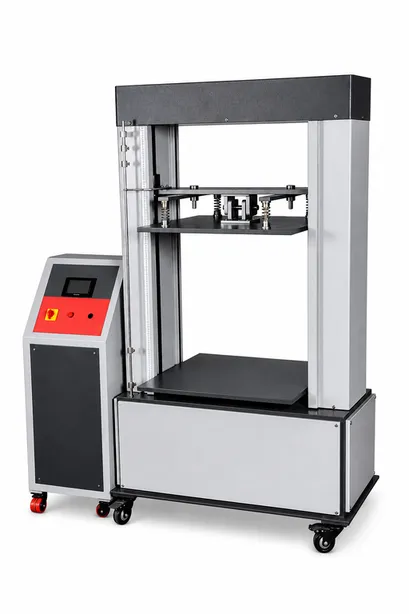

Box Compression Strength Tester

Model Number : EIE-PT-103DP100

Compliance Standards : IS 7028 (Part ‑ VI), IS 7028 (Part ‑ IX), ASTM D4577, ASTM D642, TAPPI T804

Digital Display - (Auto Calculation). Compliance standards IS : 7028 (Part ‑ VI), IS : 7028 (Part ‑ IX), ASTM D4577, ASTM D642, TAPPI : T804. Detailed specification as follows:

BOX COMPRESSION STRENGTH TESTER PLATEN SIZE
  • 450 X 450 MM
  • 600 X 600 MM
  • 1000 X 1000 MM
  • 2000 X 1000 MM
Add to Cart
  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton
Box Compression Strength Tester

Salient Features:
  • Digital Electro ‑ mechanical model.
  • Digital Model with Backlit LCD Display for easy readability
  • Direct Display of Load / Collapsing Force & Deflection/Compression
  • No Calculations Required
  • Auto‑stop upon completion of Test
  • Unlimited programmable memories
  • Continuous rate of Loading
  • Stepper Motor controlled operation
  • 2/4 load cells for highest accuracy
  • Selectable compression units N/Kgf/KN
  • RS‑232 data output facility
  • PC Software (See optional accessories)
  • Reputed make electric motor and its drive
  • Supplied complete with calibration certificate of Load cell traceable to National Standards
  • Also, supplied complete with instruction manual and IQ/OQ/PQ Documents (For pharma industries)
Testing Principle:
Constant Rate of Loading With non‑destructive testing facility for cartons at predetermined load. Unlimited programmable memories

Utilities Required (To be supplied by the buyer):
  1. Power Supply : 440 Volts, 50 Hz, 3‑Phase AC Supply (Fluctuation Free Power  required)
  2. 100 Kg Cast Iron Weights  (In any combination. Preferably, 20kg x 5 nos). These weights are required for calibration at the time of  installation and then every 6‑months for routine calibrations.

Technical specification
up-botton

Loading Capacity

1000 Kgf

Least count

20 Grams (0.02 Kg)

Display

Touch screen HMI

Controlling System

PLC (Programmable Logic Controller)

Suitable for a Testing Range

10-1000 Kgf

Auto Calibration facility

At 100 Kgf

Machine Platform Size

1000 x 1000 mm (Approximately)

Speed Range

0.01 - 70 mm/min

Operating Speed

10 ± 3 mm/min (As per standard)

Can accommodate Max Carton

950 x 950 x 950 mm can be accommodated

Unit Selection

N / Kgf / KN

Power Supply

440 Volts, 50 Hz, 3 Phase AC Supply
