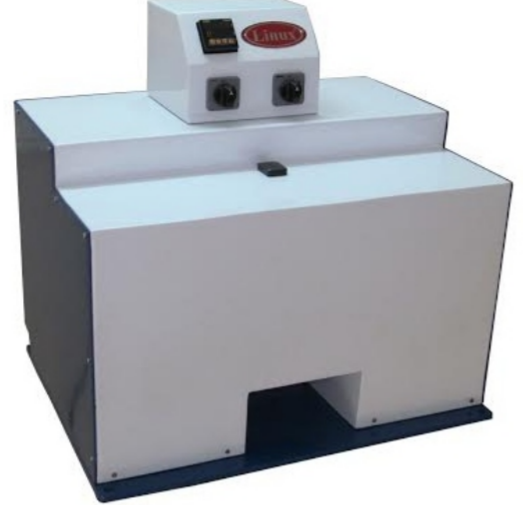

CORRUGATED FLUTTER MACHINE-CONCORA MEDIUM FLUTTER-TAPPI T809

CORRUGATED FLUTTER MACHINE-CONCORA MEDIUM FLUTTER-TAPPI T809

Detail specification please refer after commercial part.

  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton
Compliance Standards:
TAPPI T 809,  ISO 7263,  SCAN P 27

Applications:
The Concora medium fluter produces specimens of corrugated board in circumstances similar to the production process. It is used for fluting a pre-cut strip of corrugated medium ready for performing the CMT (Concora Medium Test) and the CCT (Corrugated Crush Test).

Salient Features:
  • Easy to use
  • Heated rollers
  • Precise temperature control
  • Programmable temperature with digital display : 177 °C ± 2 °C
  • Rack & Comb are supplied as standard accessories
Technical specification
up-botton
CORRUGATED FLUTTER MACHINE-CONCORA MEDIUM FLUTTER-TAPPI T809

Diameter of rolls

228.5 mm ± 0.5 mm

Rolls dimensions

16 ± 1 mm

Number of teeth

84 Nos

Radius of teeth at peak

1.50 ± 0.1 mm

Radius of teeth at base

2.00 ± 0.1 mm

Depth of teeth

4.75 ± 0.05 mm

Distance between teeth

8.55 ± 0.05 mm

Nip Load

100 ± 10N

Rotating speed

4.5 ± 1.0 r/mm

Net Weight

75 Kgs

Gross Weight

100 Kgs
