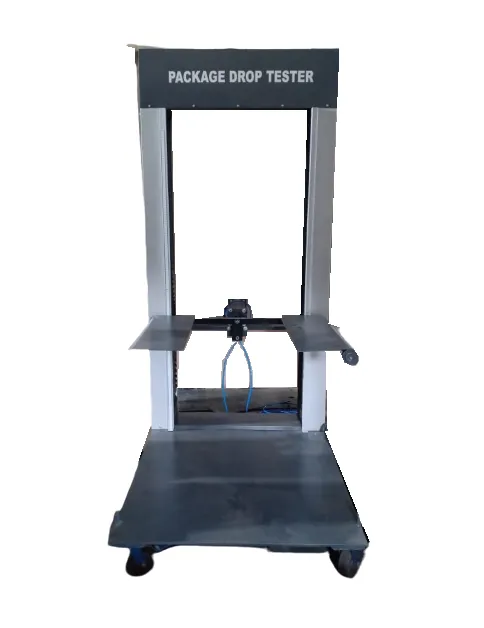

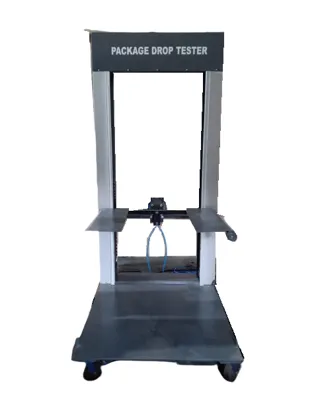

PACKAGE DROP TESTER-MOTORIZED HEIGHT ADJUSTMENT-WITH PNEUMATIC RELEASE MECHANISM
Model Number : EIE-PT-109DPA1.5
PACKAGE DROP TESTER--MOTORIZED HEIGHT ADJUSTMENT-WITH PNEUMATIC RELEASE MECHANISM
| Height | 1.5meter (Adjustable) |
|---|---|
| Loads | Up to 60Kgs |
| Min Drop Height | 400mm (0.40 m) |
| Max Drop Height | 1500mm (1.5 m) |
| Max sample Weight | 60 Kg |
| Mounting table | 700mm x 700 mm |
| Type of tests | Straight Drop, Angular Drop |
| Safety | Locking pin |
| Lifting apparatus | Programmable motorized lifting |
| Operation on | 430 volts, 50 hz, three phase, ac supply |
| Overall Dimensions | 1800 X 2100 X 2438 (L X W X H) mm |
| Weight (Approx.) | 650 PER UNIT |
