Paper Tube & Paper Cone Compression Tester

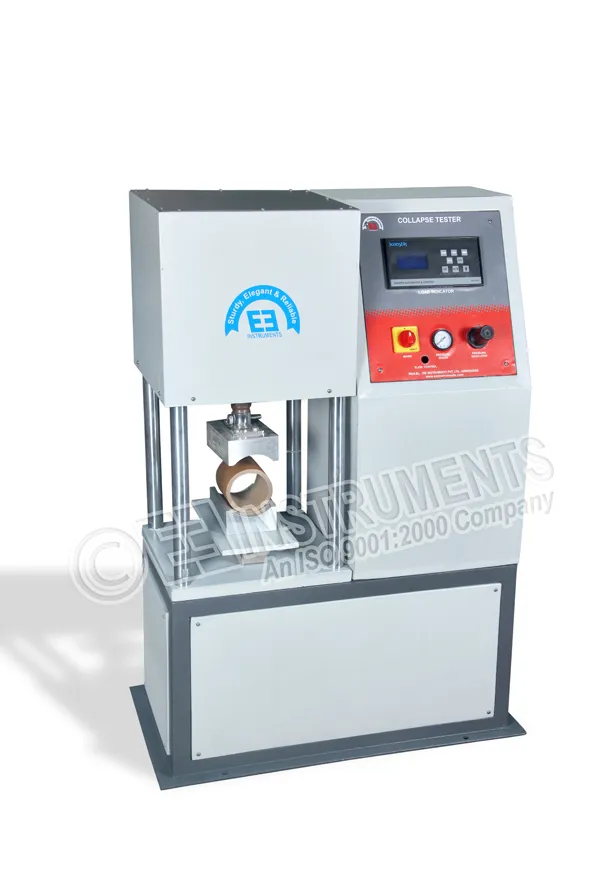

PAPER TUBE & PAPER CONE COMPRESSION TESTER - 1000 KGF CAPACITY - COLLAPSE TESTER

Model Number : EIE-PT-104A

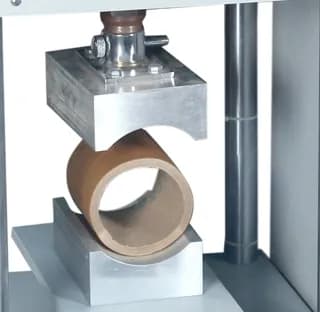

COLLAPSE TESTER FOR PAPER TUBE/PAPER CONE - ELECTRO-PNEUMATIC SYSTEM with One pair of adapter for flat crush. Radial crush adapters available at extra cost. Compressed air supply to be arranged by the user. Further details as mentioned in detailed description. For Paper Tubes / Cores used as Winding Medium / Carrier, Radial Crush Test is performed. For Paper Tubes / Cores used as Packing Material, Flat Crush Test and Vertical Crush Test can be performed. For Paper Cones used as Yarn Carrier, Radial Crush Test is performed. For Paper Cones used as Packing Material, Flat Crush Test can also be performed.

  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton

Compliance Standards:

ISO 3035, ISO 3073, ISO 7263, IS 7028


Applications:

  1. For Paper Tubes / Cores used as Winding Medium / Carrier, Radial Crush Test is performed.
  2. For Paper Tubes / Cores used as Packing Material, Flat Crush Test and Vertical Crush Test can be performed.
  3. For Paper Cones used as Yarn Carrier, Radial Crush Test is performed.
  4. For Paper Cones used as Packing Material, Flat Crush Test can also be performed.


Salient Features:

  • Unique design & Aesthetic outer appearance
  • Standard Digital Model
  • Single instrument suitable for Radial Crush Test, Flat Crush Test on Paper Tubes / Paper Cores / Paper Cones
  • Digital Model with Backlit LCD Display for easy readability.
  • Electro-Pneumatic system with embedded push buttons on Indicator panel.
  • Feather touch keypad
  • Direct Display of Load / Collapsing Force. No Calculations Required.
  • Auto-stop upon completion of Test.
  • Supplied complete with flat test adapters to carry out core test and cone test (Radial crush adaptor at extra cost)
  • All the test adapters are designed in such a manner that changing from core sample to cone sample OR from one size to another size of core sample & cone sample is very quick, handy, easy & less time consuming.
  • Peak hold facility to register the maximum load
  • Higher degree of consistency and reliability.
  • Direct display of load/collapsing force is possible without any calculations.
  • Perfect combination of price, accuracy and features.
  • With Auto-Calibration facility using standard cast Iron weights.

(Please specify tube OD x length or core OD dimensions while ordering to avoid delays.)


Note

  1. We will make provisions for adopters only up to the Minimum and Maximum Core OD specified by you, while placing the order. If you need any provisions for future sizes, inform us in advance in the PO itself.
  2. Please specify tube OD x length or core OD dimensions while ordering. We CANNOT process your order in absence of core sizes. Please provide 5 samples of each type of Tube / Core size with the PO or max within 15 days of PO. Delay in providing core sizes is to your account
  3. Large Size Models suitable for cores upto 250 mm, available @ Rs 13,500.00/= extra


Utilities Required (To be supplied by the buyer):

  1. Power Supply : 230 Volts AC at 50 Hz. (Fluctuation Free Power required)
  2. 50 / 100 Kg Cast Iron Weights - These weights are required for calibration at the time of installation and then every 6-months for routine calibrations
  3. Compressed Air supply at 5 - 6 kg/cm2 (Rust, Dirt and Moisture Free Supply)


Following adapter will be supplied at extra cost:

a.  For Texturising Tubes of 57mm ID and 62/63mm OD - Cost mentioned separately

    The top adaptor will be 200mm long, bottom Adopter will be 200mm long


b.  For Texturising Tubes of 69mm ID and 75mm OD - Cost mentioned separately

    The top adaptor will be 150mm long, bottom Adopter will be 200mm long



c.  For all POY and other types of Paper Cores

    POY Test Length = Actual, upto 150mm, Paper Core Test Length = 100mm

         i. OD up to 125mm Optional

        ii. OD 125 - 150mm Optional

        iii. OD 150 - 185/186mm Optional




Technical specification
up-botton
PAPER TUBE AND PAPER CONE COMPRESSION TESTER - 1000 KGF CAPACITY - COLLAPSE TESTER

Capacity

1000 Kgf (at 6 kg/cm2 air pressure)

Least count

1 Kgf

Accuracy

0.2% of Full Scale

Power Supply

230 Vols, 50 Hz, Single Phase, AC Supply

Exterior body

Fabricated from Mild steel material

Exterior Body Paint

Powder coating in attractive shades

Overall Dimensions

725 X 415 X 900 (L X W X H) MM

Weight (Approx.)

80 kg


Accessories
up-botton
Spares
up-botton
