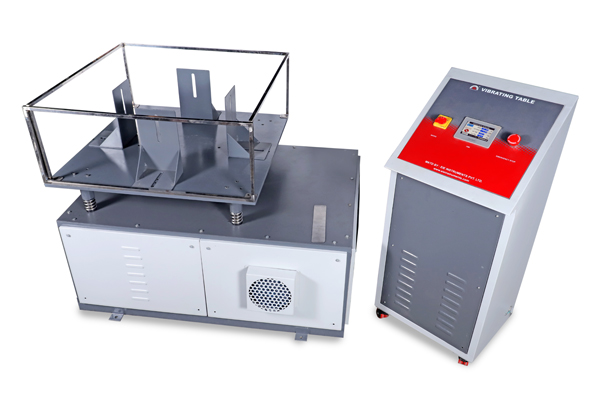

VIBRATION TESTER FOR PACKAGING MATERIAL - 50 KG LOAD CARRYING CAPACITY
Model Number : EIE-PT-114DS50
50 Kg - 5hz Max Pure Vertical Linear Motion (Speed control with Variable Frequency Drive) Detailed Specification as follows:
PLATFORM SIZE
- SMALL PLATFORM - (500 L X 500 W) MM
- LARGE PLATFORM - (800 L X 600 W) MM
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
Compliance Standards:
ASTM D999, TAPPI T17, IS 7028(part II)
Applications:
Vibration Table is a consistent tool for checking Transport worthiness of packages. It simulates the vibrations and jolts subjected to various packages and products during handling and transportation.
Salient Features:
- Digital LCD Display
- 4.3" Touch Screen HMI
- Precise PLC (Programmable Logic Controller) for accurate results
- Highly accurate test results under various frequency settings
- Digital Timer for setting test run time
- Sample Slippage protection by rail on all sides
- Strong base plate with rugged structure
- Adjustable Frequency
- The damage caused by repetitive movement of the objects is replicated by the Vibration Table.
- User can set frequency and time and examine the damage caused by visual inspection on completion of test.
Electrical/Electronics:
- Digital Timer with facility for Auto Stop after preset time
- RPM Indicator
- Push Buttons ‑EMERGENCY OFF.
- 2 Pole MCB for Short Circuit Protection and also to work as Mains Switch.
Technical specification
VIBRATION TESTER-50KG-SMALL PLATFORM SIZE-500 X 500MM
|
Table Top Throw |
25 mm |
|
Standard platform size |
500 x 500 mm |
|
Load Capacity |
5-50 kgs loading |
|
Step‑Less Frequency Variation |
1 ‑ 5 Hz with VFD Drive |
|
Step‑Less Speed Variation |
60 ‑ 300 RPM with VFD Drive |
|
Motor |
2 H.P., 1 Phase, 230 V.AC, 50 Hz |
|
Standard Platform Top |
Mild Steel Base with Stainless Steel Cover Plate |
|
Box Retainer System |
12” height Grill / Fencing. or 8” height Adjustable Sliding Supports. |
