Complies with following International Standards
ISO 2758, 2759, 2559, 3303, 3689, BS 3424, 3137, ASTM D3786, D774, D2738, T810, T403

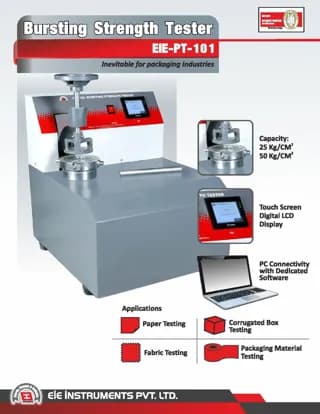

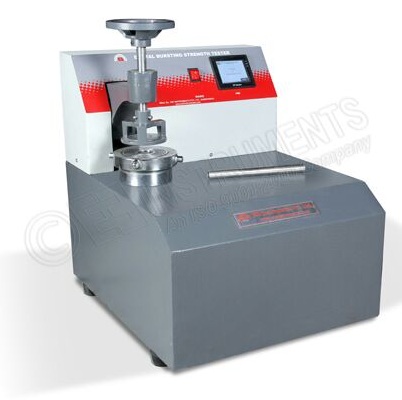

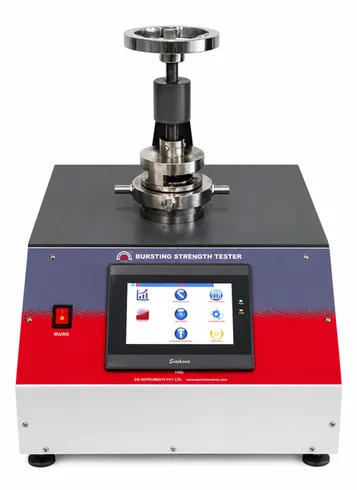

Salient Features
- Proven and reliable performance
- Scientifically calibrated through our in‑house calibration laboratory
- Sturdy in construction
- Low power consumption
- Correctly matched motor gives constant pumping rate, eliminating manual error as per ASTM, BS and ISO Standard requirements.
- Manual clamping of sample using hand wheel clamp.
- PLC & Touch Screen HMI Controlled model, Logical Detection of Sample Failure
- PLC Controller having Facility to Adjust Unit Selection viz. Kg/cm², Bar and PSI
- Stores data up to last FIVE readings & Yields Average Value, Max. Value & Min. Value of the Tests.
- Quick, Easy, Accurate & User Friendly Operation
- All replaceable parts are readily available
Salient features of HMI & PLC Controller
- Eliminates the need for holding down the push button to bulid up the pressure
- No need to inspect the sample visually
- It automatically reverses the motor operation and thereby release the pressure on completion of the test cycle
- Due to automatic pressure release mechanism, the diaphragm life is improved, which otherwise is not possible in manual pressure release mechanism.
- Customer do not need to inspect and remember the breaking force all the time as it automatically gets registered within the PLC & HMI System
- Soft touch sensitivity of Touch screen
- Highly advanced and programmable PLC Controller to eliminate human error
Supplied complete with following accessories
- A spare rubber diaphragm
- Standard aluminum foils for calibration and cross‑verification purpose.
- Test report & Calibration certificate
|
Instrument Body |
Fabricated from Mild Steel Material |
|
Paint |
Powder coating in attractive shades |
|
Body size |
22” x 14” x 21” (L x W x H) |
|
Test Fluid |
Glycerin or EP 140 Gear Oil |
|
Capacity of Test Fluid tank |
250 ml |
|
Rate of Fluid Displacement |
170 ± 16 ml / Minute (For corrugated board and paper board) |
|
Rate of Fluid Displacement |
96 ± 6 ml / Minute (For Paper material) |
|
Opening of upper clamp |
31.50 mm (For corrugated board) / 30.50 mm (For paper) |
|
Opening of upper clamp |
31.50 mm (For corrugated board) / 33.10 mm (For paper) |
|
Electric Motor |
Reputed make stepper motor to yield constant rate of pumping |
|
Pressure transducer |
Honeywell / Danfoss make |
|
Controller |
3.5” Colour touch screen with PLC (Programmble logic controller) |
|
Display |
LCD Display with back light indication |
|
Pressure Resolution |
0.1 Kg/cm2 |
|
Unit Selection |
Yes - Kg/cm2, Bar, PSI |
|

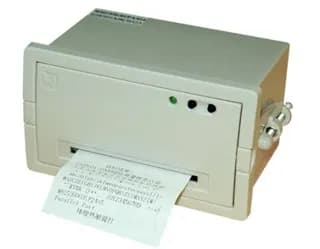

Data Storage |
Up to last 10 readings and further expandable (See optional accessories) |
|
Power Supply |
220 Volts, 50 Hz, Single Phase, AC Supply |
