COBB SIZING TESTER - (WATER ABSORPTION TEST OF PAPER)-(TAPPI T441)

COBB SIZING TESTER - (WATER ABSORPTION TEST OF PAPER)-(TAPPI T441)

Model Number : EIE-PT-105

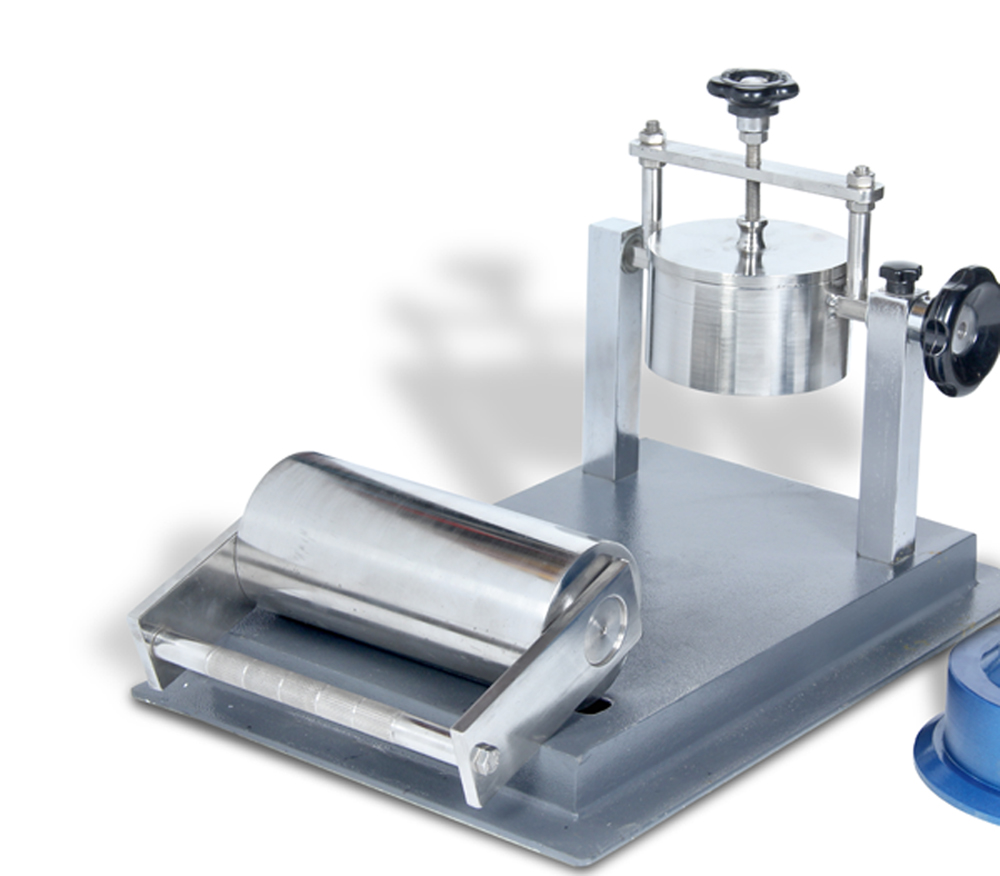

An equipment to determine the water absorption property of paper, paper board and corrugated fiberboard in specified time under standardized conditions. Detailed Specification as follows:

  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton

Compliance standards :

IS 1060, TAPPI ‑ T441, ISO 535


Applications

An equipment to determine the water absorption property of paper, paper board and corrugated fiberboard in specified time under standardized conditions.


Details:

  1. Complete With measuring cylinder for pouring 100 ml water.
  2. User friendly tilting device
  3. Suitable for 60 / 120 Second Test of Paper and 30 Minute Test of Fiber board


Cobb Sizing Tester Exported in Russia, Bangladesh, Nepal, Bhutan, Sri Lanka, Indonesia, Taiwan, South Africa, Kenya, Morocco, Egypt, Malaysia.

Technical specification
up-botton
COBB SIZING TESTER-WATER ABSORPTION TEST OF PAPER-TAPPI T441

Machine Body

Corrosion resistant main body

Structure

Rugged and Light weight at the same time

Weight of couch roll

10 Kg

Couch Roll

Non Corrosive Material (Stainless Steel)

Test Area

100 cm2

Sample Diameter

112 mm

Depth of Cylinder

60 mm

Diameter of rubber pad

145 mm

Water level indicator in cylinder

10 mm and 25 mm
