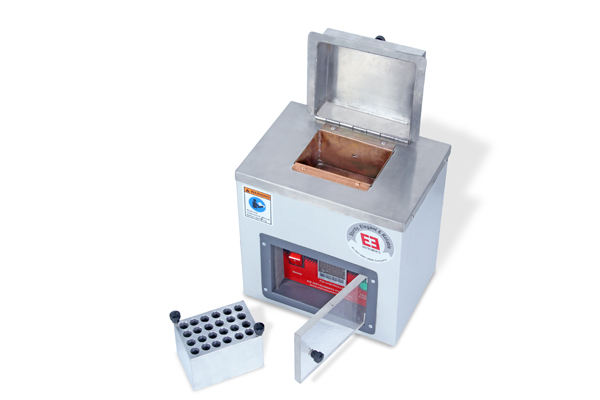

DRY BATH - MULTI BLOCK HEATER - 10 MM DIA X 100 NOS HOLES - DIGITAL MODEL
Salient Features:
- Easy to operate
- Compact & bench top design
- Aesthetic outer appearance

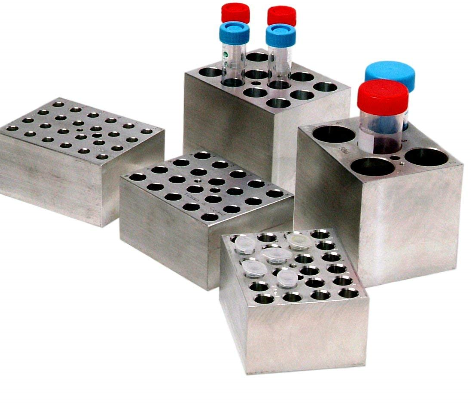

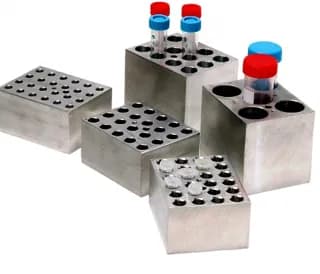

- Interchangeable blocks (sold separately) to accommodate a wide variety of tubes, plates and slides.
- Supplied with a Block Lifter that enables the user to exchange blocks easily, even when the block is hot.
- Supplied with test report and calibration certificate
- Supplied without test tubes/Plates/Slides.
- Please specify additional block requirement at the time of order.
|
Construction |
Mild Steel & Powder Coated in attractive shades. |
|
Heating element |
Aluminum die casted blocks |
|
Temp Controller |
Microprocessor based AUTO TUNE PID Digital controller cum indicator |
|
Temp display |
LED Display |
|
Temp sensor |
PT 100 Sensor |
|
Temp Range |
5°C above ambient 180 °C |
|
Temperature Accuracy |
0.5 °C or better |
|
Display Resolution |
0.1 °C |
|
Temp Uniformity |
±0.5°C |
|
Rise time |
≤ 25 minutes (From room temp to 100°C) |
|
Power Ratings |
Up to 500 Watt approx |
|
Power Supply |
230 volts, 50 Hz, Single Phase, AC Supply |
|
Dimensions |
430 W x 310 D x 120mm H |
|
Overall Dimensions |
350 X 350 X 450 (L X W X H ) MM |
|
Weight (Approx.) |
18.350 kg |
