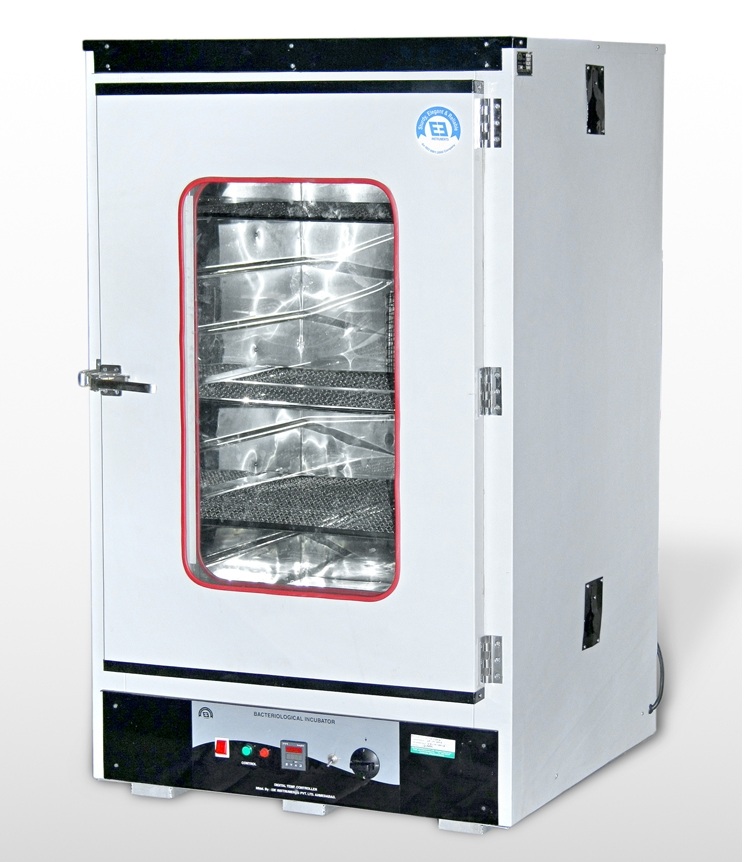

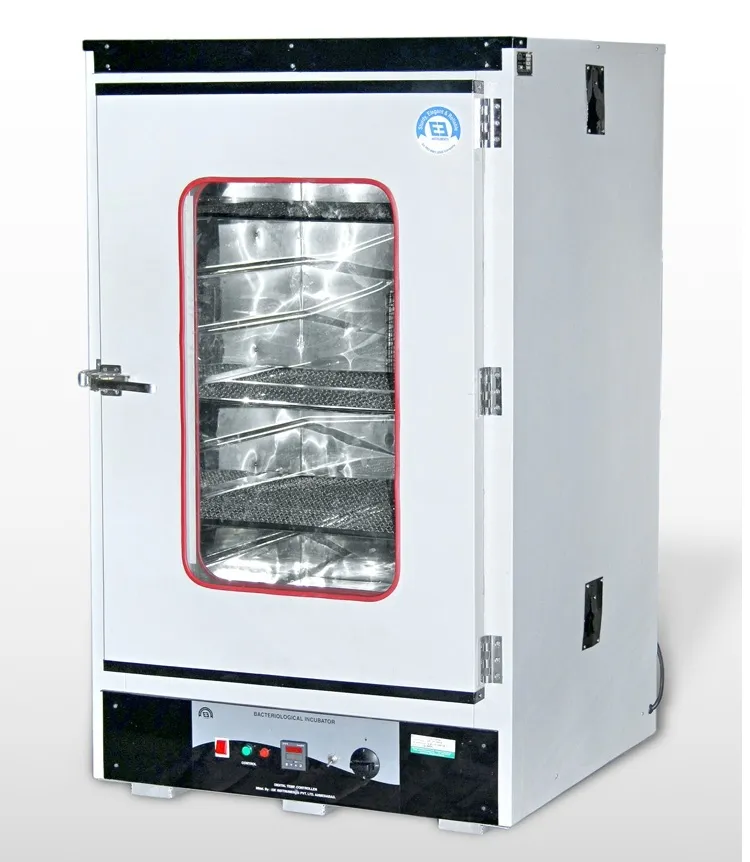

BACTERIOLOGICAL INCUBATOR
Model Number : EIE-201DP216
Double walled, Inner chamber S.S. 304, Outer Mild Steel Powder Coated, 65mm thick glass wool insulation, Glass viewing window for test observation, Temp. range 5°C above ambient to 70°C 80/20 nichrome heating elements placed under ribs at bottom and sides for uniform heat distribution, Auto tune Dual Display. Digital temp. controller, forced air circulation, working on 230 V AC Single Phase. On site Validation at extra cost. Detailed specification as follows:
BACTERIOLOGICAL INCUBATOR SIZE (H x W x D)
- 30 X 30 X 30 CM
- 35 X 35 X 35 CM
- 45 X 45 X 45 CM
- 60 X 60 X 60 CM
- 60 X 45 X 45 CM
- 90 X 60 X 60 CM
- 90 X 60 X 45 CM
- 125 X 90 X 90 CM
MATERIAL OF CONSTRUCTION
- INNER S.S.
- COMPLETE S.S.(GMP)
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
- Outer chamber of Mild Steel, Powder Coated
- Inner chamber of S.S.304 - mirror polished
- Full length inner Glass door for test observation
- 65mm high density Glass wool insulation on all sides for minimum heat loss
- With heating elements on three sides, ensuring uniform temp. distribution throughout
- Sealed and enclosed heaters to working chamber for minimum heat loss
- Auto tune PID Digital indicator cum controller
- 80/20 nichrome heating elements, ensuring long lasting and continuous heating
- Special heavy duty Stainless steel lock and door hinges with spring and roller mechanism
- Stainless steel crimped wire mesh Shelves to withstand heavy load and minimum resistance to air circulation for better heat distribution
- Provision to add more shelves, as per requirement of test - Shelves adjustable to place test samples or Glassware of varying dimensions
- Adjustable air ventilation at top
- With forced air circulation arrangement for uniform temperature distribution.
- With Digital Controller & Forced air circulation
- Complete with pilot indicating lamps, 2 meter cord wire and power plug.
Technical specification
|
Construction |
Double walled |
|
Inner chamber |
Fabricated from Stainless Steel S.S. - 304 Material |
|
Exterior body |
Fabricated from Mild Steel material |
|
Inner working size |
60 x 60 x 60 cm (W x D x H) |
|
Chamber volume |
216 Liters |
|
Thermal Insulation |
High Density Glass wool Insulation Of 65mm |
|
Temperature Range |
5 °C above ambient - 70 °C |
|
Temperature Resolution |
0.1 °C |
|
Temperature Accuracy |
± 0.5 °C or better |
|
Temperature Uniformity |
± 2 °C or better |
|
Temperature Control |
Microprocessor based PID Controller |
|
Display |
LED Display |
|
Temperature sensor |
High Quality PT-100 Sensor |
|
Heating source |
Nichrome Heating elements (Sealed & Enclosed heaters) |
|
Heater watts |
1.5 Kw |
|
Blower |
Forced air circulation for Uniformity |
|
No. of trays |
03 Nos |
|
Observation |
Glass observation window |
|
Electrical |
230 Volts, 50 Hz, Single Phase, AC Supply |
|
Overall Dimensions |
780 L X 950 B X 935 H (mm) |
Accessories
DIGITAL TEMPERATURE CONTROLLER WITH SOAK TIMER
The function of a soak timer PID Controller is to control the temperature at the specified setpoint for the period of soak time set by user. After the soak time is over the control output will be disabled. The second relay can be configured as an annunciator to indicate that soak is finished. Soak time is in minutes .
OVER TEMP PROTECTION SYSTEM-WITH AUDIO ALARM
The over temp. protection system is designed to protect your Instrument from overheating. It will cut the power to the heating element when the temperature of the Instrument gets too high. If one temp.control system fails, this system will take over. This will cut off the current to the heater at the preset temp. with audible alarm.
