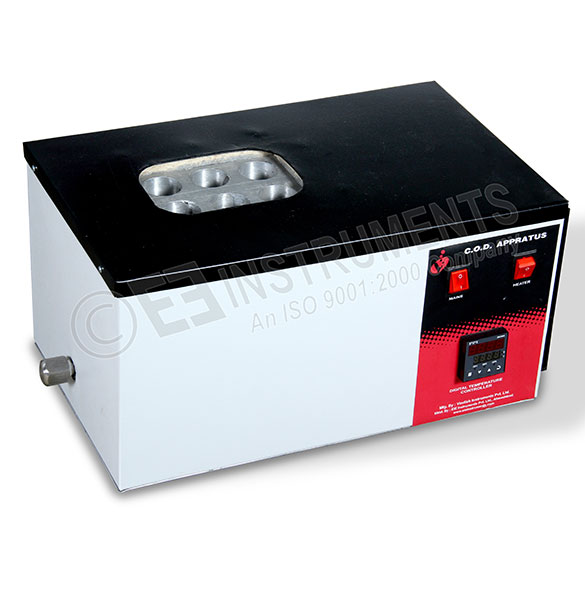

C.O.D. DIGESTION APPARATUS - FOR 6 SAMPLES WITH GLASSWARE

C.O.D. DIGESTION APPARATUS - FOR 6 SAMPLES WITH GLASSWARE

Model No: EIE-217DP6G

For 6 tests, with 6 sets of Glasswares (COD TUBE & CONDENSER ONLY) but without optional accessories as mentioned in the detailed specifications.

Introduction:

DIGITAL COD DIGESTOR is suitable for COD method for monitoring wastewater in-fluent and effluent, industrial process water, and more. This instrument is used by Pollution Control Labs.


Construction Details:

  1. Outer cabinet is made of mild steel duly powder coated.
  2. Double wall construction with insulation for minimum heat losses increases the efficiency of the system.
  3. Aluminum Block with holes (Dimension 38 mm Diameter x 76 mm Depth) is used to hold 6 nos COD tubes.
  4. Aluminum Block is heated to maintain temperature up to 180° C
  5. Solid state Digital Temperature Controller, appropriate heater & insulation selection assure uniformity in all the samples.
  6. Selectable timer up to 120 min/h alarm is provided to set the digestion period (Refluxing).
  7. After digestion, analyze the sample with titrimetric method. (without chemicals and accessories for Titration)

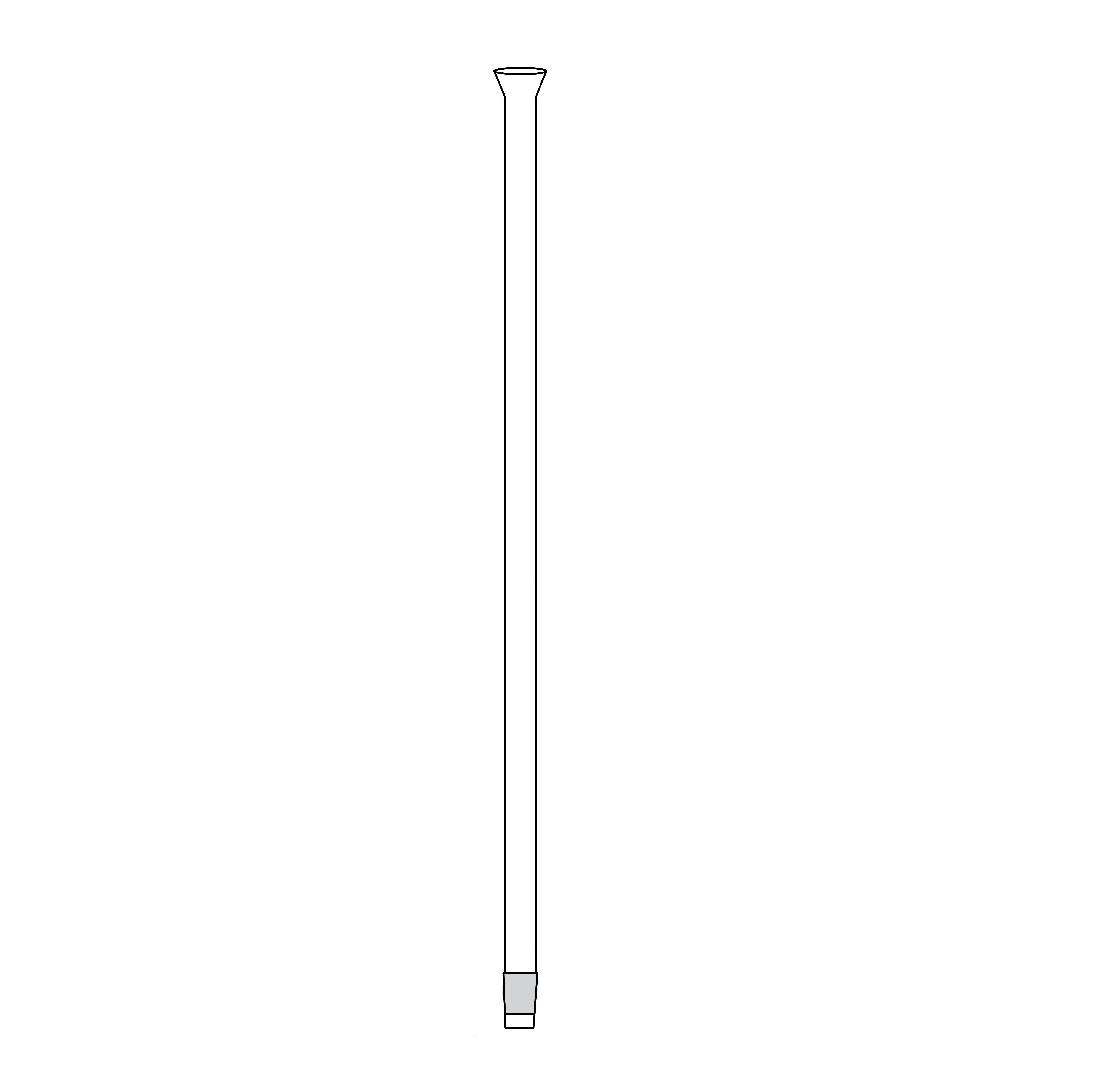

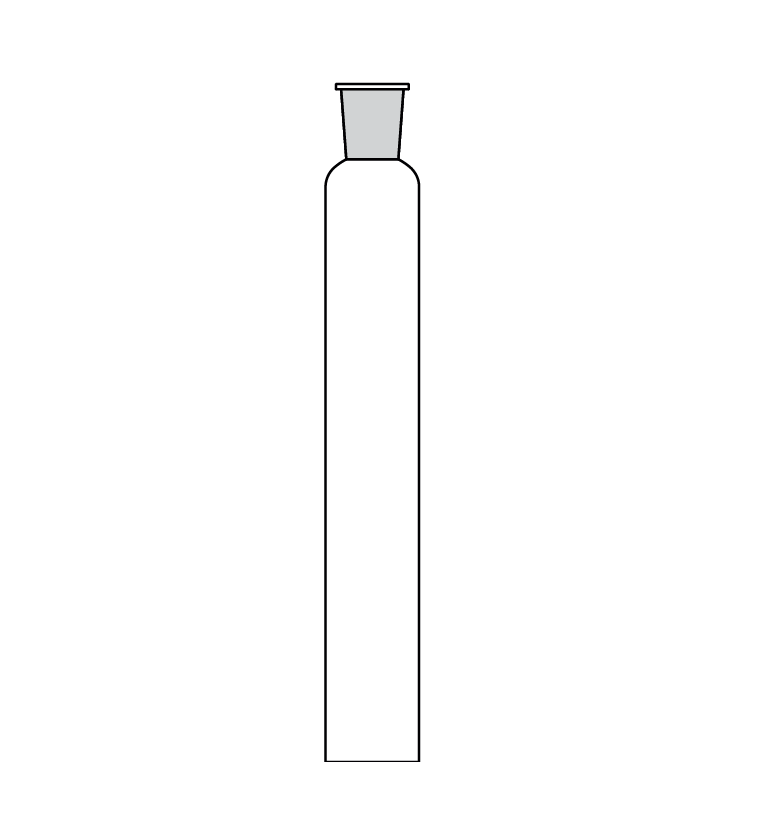

  8. Supplied with 6 sets of Glassware (COD Tubes and COD Air Condensers)



Note:

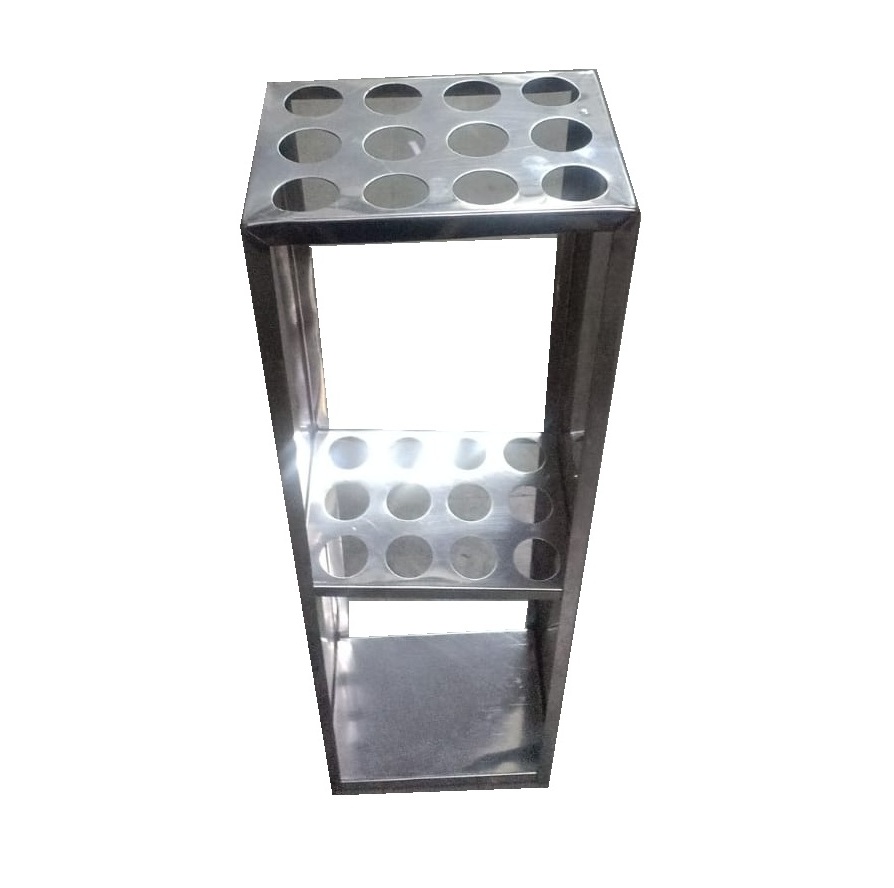

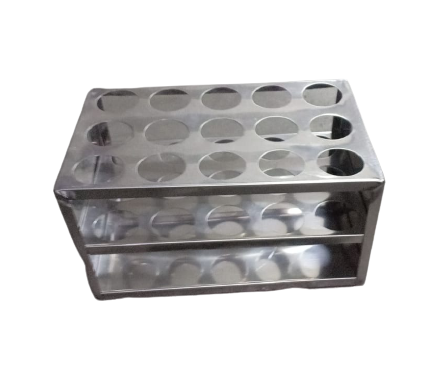

  1. Supplied without OPTIONAL stand for keeping Glass wares.
  2. Supplied without bath for immediate and fast cooling of glass wares (Quoted separately).
  3. Chemicals, Glass burette and titration stand required for Titration has to be arranged by the customer or can be provided by us at extra cost.
Temperature Range Above ambient to 180° C or higher
Temperature Resolution 0.1° C
Display Digital 12mm Red LED
Control Digital Electronic Temperature Controller
Heater Rating 750 Watts
Sensor PT‑100
Timer Selectable 15, 30, 45, 60, 90 or 120 minutes with alarm
Hole Size 38mm Diameter x 76mm Depth
Glass Tube 36mm diameter, 06 no (2 x 3 rows)
Sample Volume 20 ml Each
Overall size 21 x 12 x 11"
Net weight w/o packing 21 kilograms
