Introduction

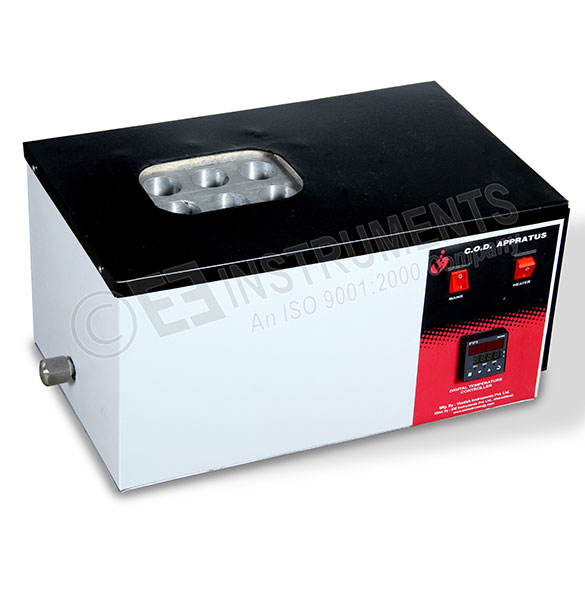

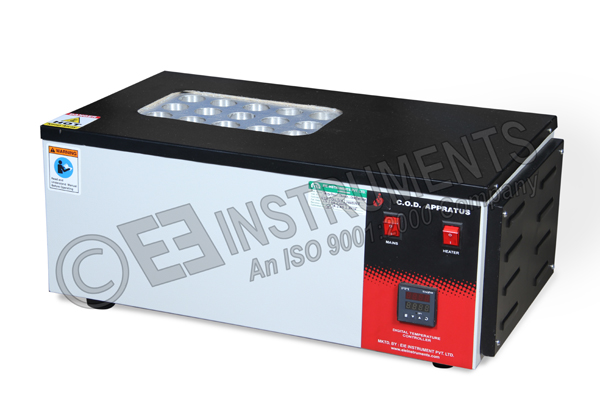

DIGITAL COD DIGESTOR is suitable for COD method for monitoring wastewater influent and effluent, industrial process water, and more. This instrument is used by Pollution Control Labs.
Construction Details
- Outer cabinet is made of mild steel duly powder coated.
- Double wall construction with insulation for minimum heat losses increases the efficiency of the system.
- Aluminum Block with holes (Dimension 16 mm Diameter x 80 mm Depth).
- Aluminum Block is heated to maintain temperature up to 180° C
- Solid state Digital Temperature Controller, appropriate heater & insulation selection assure uniformity in all the samples.
- Selectable timer up to 120 min/h alarm is provided to set the digestion period (Refluxing).
- After digestion, analyze the sample with titrimetric method. (without chemicals and accessories for Titration)
Note
Supplied without OPTIONAL stand for keeping Glass wares and bath for immediate and fast cooling of glass wares (Quoted separately) Chemicals, Glass burette and titration stand required for Titration has to be arranged by the customer or can be provided by us at extra cost.
|
Temperature Range |
Above ambient to 180° C or higher |
|
Temperature Resolution |
0.1° C |
|
Display |
Digital 12mm Red LED |
|
Control |
Digital Electronic Temperature Controller |
|
Heater Rating |
750 Watts |
|
Sensor |
PT‑100 |
|
Timer |
Selectable 15, 30, 45, 60, 90 or 120 minutes with alarm |
|
Hole Size |
16mm Diameter x 80mm Depth |
|
Glass Tube |
16mm diameter |
|
Sample Volume |
20 ml Each |
|
Overall size |
21 x 12 x 11" |
|
Net weight w/o packing |
21 kilograms |
