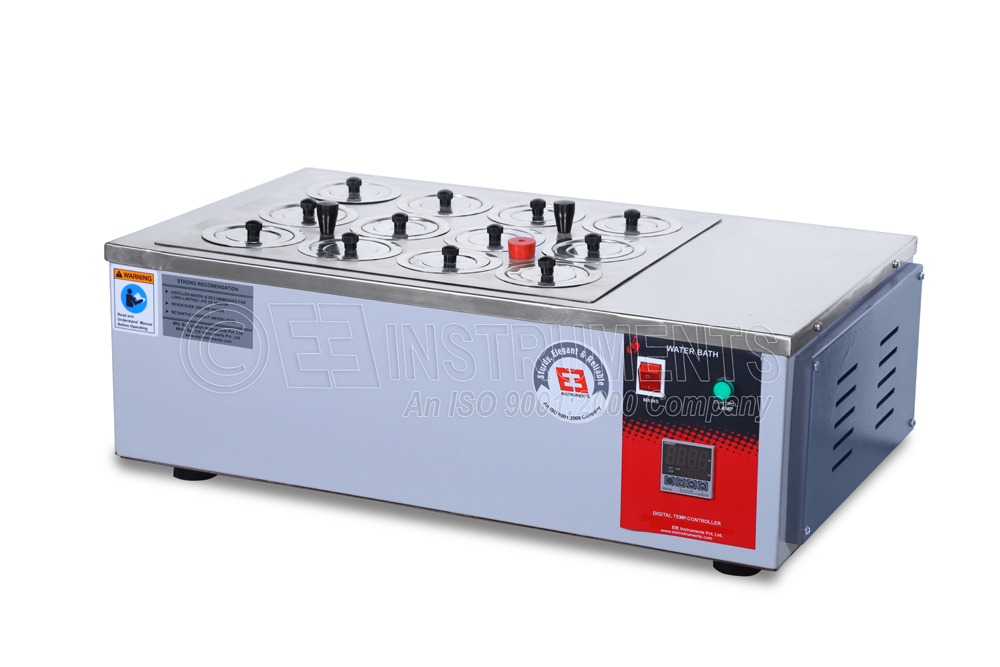

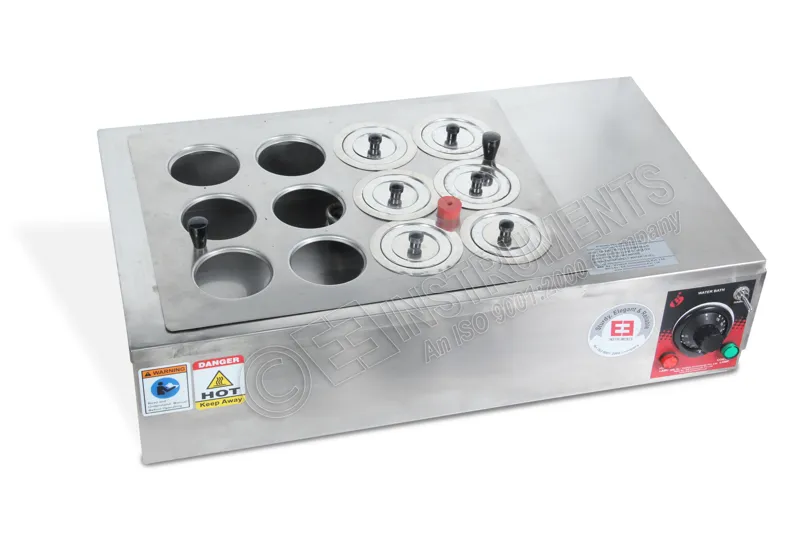

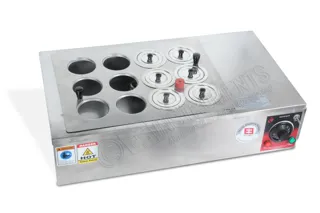

DOUBLE WALLED WATERBATH
Model Number : EIE-402DP12
Double walled, Outer Chamber CRC sheet- power coated, Inner Chamber Stainless Steel - 304, fully argon welded, Rockwool insulation, Temp. range 5°C above ambient to 99°C , Temp. control By Auto Tuning dual display PID Digital Controller, with Stainless steel lid with 12 Holes of 3"dia with concentric rings and power plug with cord wire ,working on 230 V AC single phase. Use of DM/RO Water as feed water to the working chamber is mandatory, Detail Specification as per following page.
NUMBER OF HOLES IN WATERBATH
- 6 HOLE
- 12 HOLE
MATERIAL OF CONSTRUCTION
- INNER S.S.
- COMPLETE S.S.(GMP)
WATERBATH CONTROLLING SYSTEM
- THERMOSTATIC
- DIGITAL
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
Double walled, Outer Chamber CRC sheet- power coated, Inner Chamber Stainless Steel - 304, fully argon welded, Rockwool insulation, Temp. range 5°C above ambient to 99°C , Temp. control By Auto Tuning dual display PID Digital Controller, with Stainless steel lid with 12 Holes of 3"dia with concentric rings and power plug with cord wire ,working on 230 V AC single phase.
Salient Features :
- Aesthetical exterior appearance
- Design simplicity and superior quality
- Easy cleaning and Maintenance free operation
- Fitted with drain plug
Note
Use of DM/RO Water as feed water to the working chamber is mandatory, warranty void in case of non compliance.
Technical specification
|
Construction |
Double walled |
|
Outer Chamber |
Fabricated from CRC Sheet, which is powder coated in attractive shades. |
|
Inner chamber |
20 SWG Stainless Steel ( AISI 304) ARGON WELDED |
|
Insulation |
Rockwool insulation |
|
Chamber Size |
40 cm x 30 cm x 10 cm (W x D x H) |
|
Chamber volume |
12 Liters |
|
Temperature Range |
5°C above ambient to 95°C |
|
Temperature Control |
By Microprocessor based Auto Tune PID Digital Temperature Controller Cum Indicator |
|
Temperature Display |
LED Display |
|
Temperature Accuracy |
0.5 °C |
|
Temperature Resolution |
0.1 °C |
|
Temperature Measurement |
By PT-100 sensor |
|
Operation on |
220/230 volts AC single phase |
|
Overall Dimensions in Inches (L x W x H) |
27 x 16.5 x 11 |
|
Weight (Approx.) |
19 kg |
