Job Application

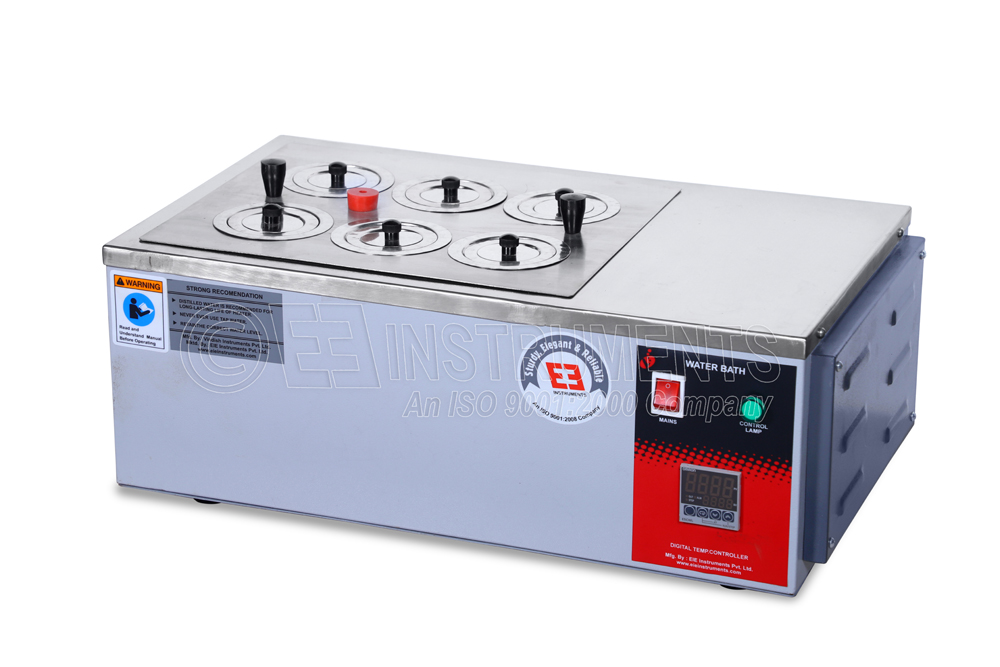

Double walled, Outer Chamber CRC Sheet - Power Coated, Inner Chamber Stainless Steel-304, Fully Argon Welded, Rockwool Insulation, Temp. Range 5°C above ambient to 99°C, Temp. Control by Auto Tuning Dual Display PID Digital Controller, with Stainless Steel Lid with 6 Holes of 3" dia. with concentric rings and power plug with cord wire, Working on 230V AC Single Phase.
Salient Features :
- Aesthetical exterior appearance
- Design simplicity and superior quality
- Easy cleaning and Maintenance free operation
- Fitted with drain plug
Note
Use of DM/RO Water as feed water to the working chamber is mandatory, warranty void in case of non compliance.
|
Construction |
Double walled |
|
Outer Chamber |
CRC Sheet - Powder coated |
|
Inner chamber |
20 SWG Stainless Steel ( AISI 304) ARGON WELDED |
|
Insulation |
Rockwool insulation |
|
Chamber Size |
35 cm x 25 cm x 10 cm (W x D x H) |
|
Chamber volume |
8.75 Liters |
|
Temperature Range |
5 °C above ambient to 99 °C |
|
Temperature Control |
By Microprocessor based Auto Tune PID Digital Temperature Controller Cum Indicator |
|
Temperature Display |
LED Display |
|
Temperature Accuracy |
0.5° C |
|
Temperature Resolution |
0.1° C |
|
Temperature Measurement |
By Pt 100 sensor |
|
Operation on |
220/230 volts AC single phase |
|
Standard Accessories |
Stainless steel lid with 06 holes of 3” diameter concentric rings, Power plug with cord wire |
|
Overall Dimensions |
600 X 350 X 250 (L X W X D) mm |
|
Weight (Approx.) |
16 kg |
