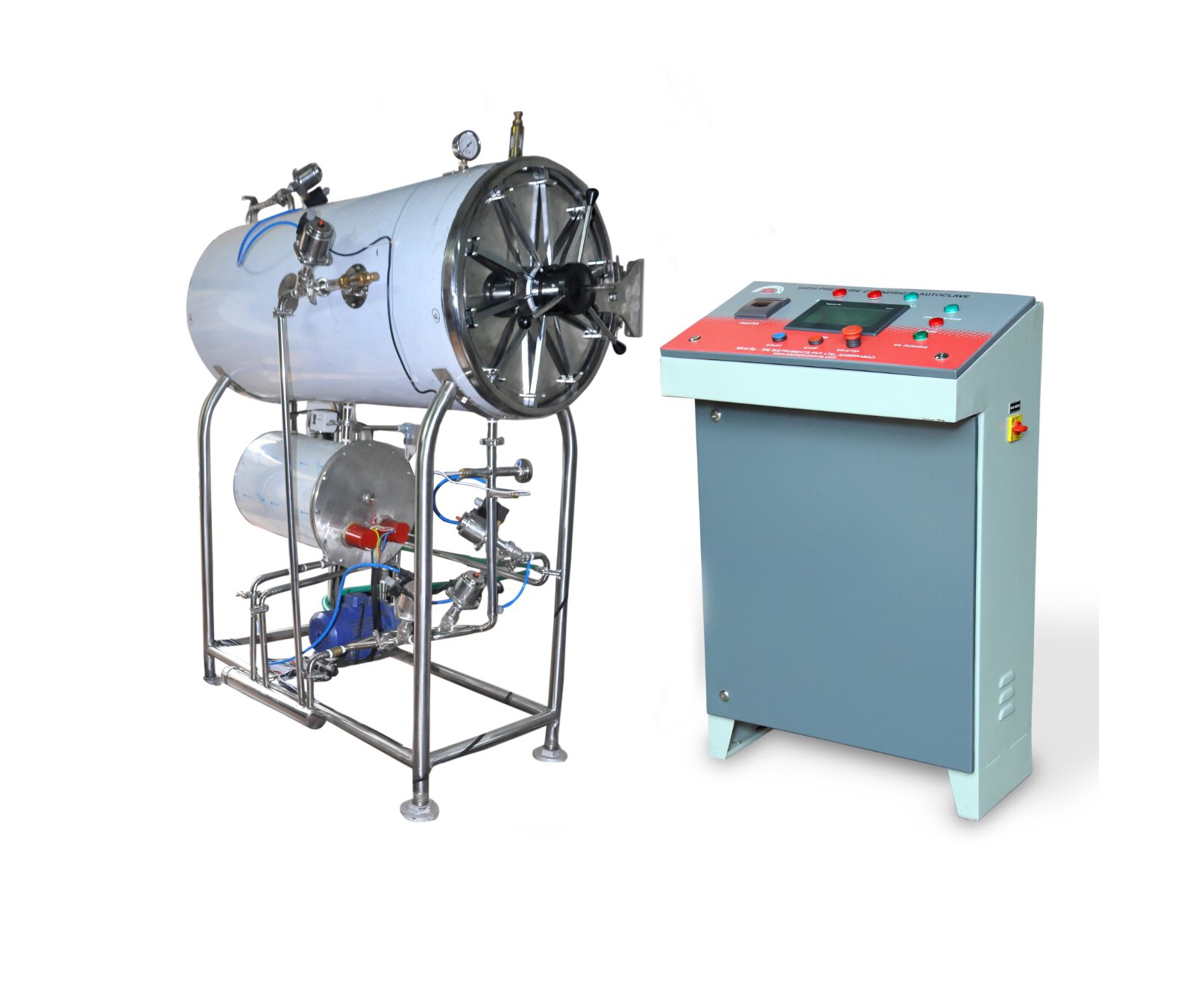

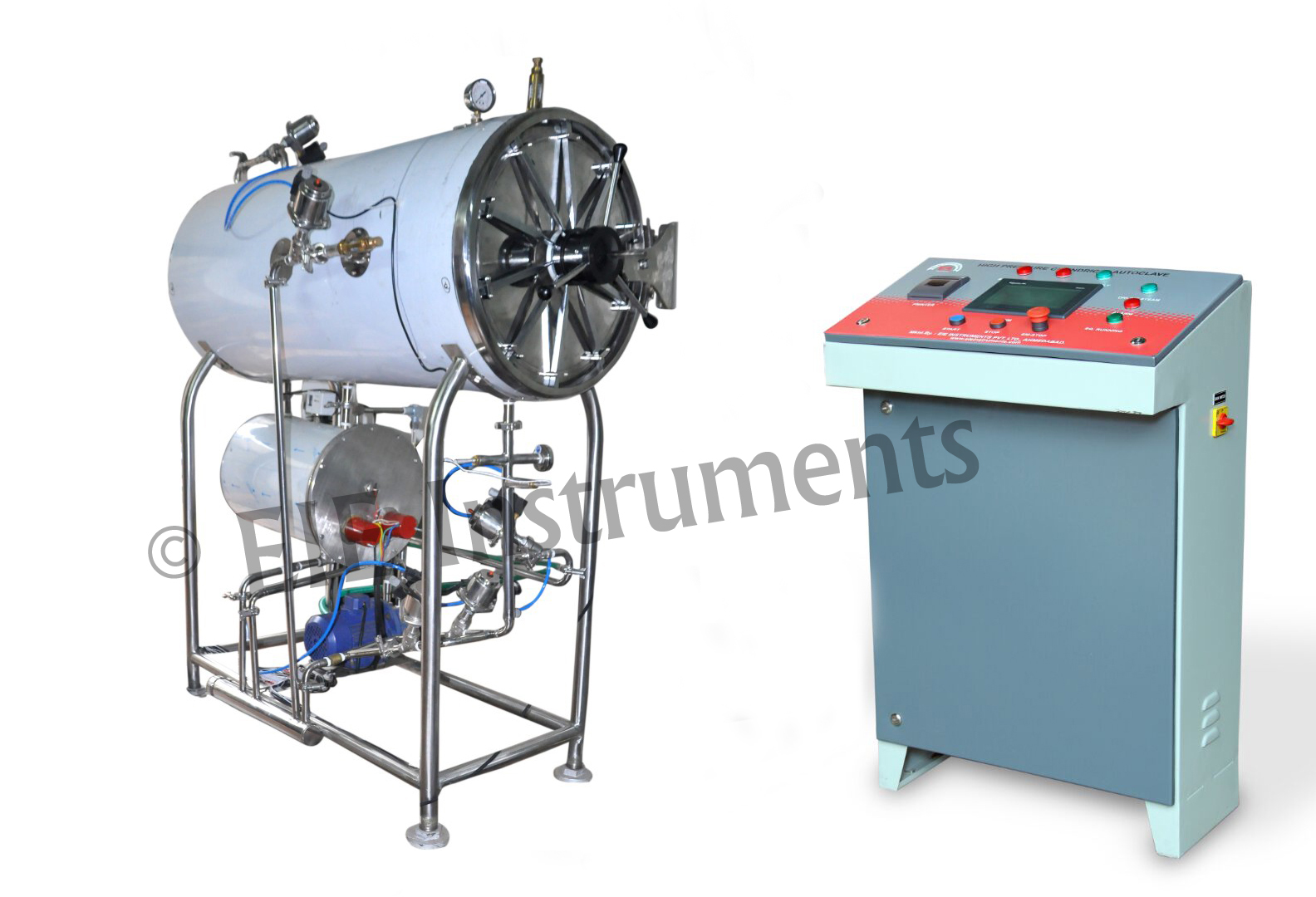

HIGH PRESSURE CYLINDRICAL HORIZONTAL STERILIZER
None
INNER CHAMBER SIZE
- 16 X 24 INCH
- 16 X 44 INCH
- 18 X 30 INCH
- 20 X 36 INCH
- 20 X 48 INCH
- 20 X 60 INCH
- 24 X 36 INCH
- 24 X 43 INCH
TYPE OF DOOR
- SINGLE HINGED DOOR
- DOUBLE HINGED DOOR
TYPE OF OPERATION
- MANUAL
- FULLY AUTOMATIC
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
1) Process-lock to prevent opening of the door during the process.
2) Process-lock to prevent opening of the door after successful completion of the test cycle.
- One TEMPERATURE SENSOR will be provided; - Fitted at drain outlet. Inputs/outputs of all sensors and electronic parts are monitored, processed and controlled by Microprocessor based PID Controller for accurate data processing.
- A pressure gauge is connected with the inner chamber to indicate the steam pressure.
Technical specification
|
Type |
Horizontal Steam sterilizer, Double door, Cylindrical Type |
|
Working Chamber Size |
18'' X 30'' 3 drum capacity |
|
Chamber volume |
|
|
Inner Chamber thickness |
3 mm |
|
Jacket thickness |
2mm |
|
Chamber working Pressure |
2.1 kg/cm2 |
|
Jacket working Pressure |
2.1 kg/cm2 |
|
Hydro test (Pressure chamber) |
3.5 Kg/Cm2 |
|
Hydro test ( jacket) |
4.0 Kg/cm2 |
|
Inner Chamber |
Fabricated with S.S. 304 |
|
Jacket |
Fabricated with S.S. 304 |
|
Operating Temperature |
121°C |
|
Door |
S.S.304 plates on contact & Mild Steel non contact Sides |
|
Door gasket |
Silicon Door Gasket (Food grade) |
|
Door gasket size |
12” x 12” |
|
Hinge & Locking Rod |
Fabricated with mild steel |
|
Central Locking parts |
C.I. Casting, Wrinkle black painted |
|
Shooting Bolts |
Tempered, Chrome coated |
|
Stand |
M.S. Round Pipe |
|
Operation |
Manual cycle (For automatic Cycle, please refer to the optional accessories) |
|
Tempe Indication |
Microprocessor based PID digital temperature controller & indicator |
|
Temperature Accuracy |
0.10°C |
|
Pressure Indication |
Analogue pressure gauge |
|
Steam Generator |
Cylindrical shape steam generator made of S.S. 304 Material, Will be attached to underneath the jacket. It will be fitted with ISI marke |
|
Pressure least count |
0.2 PSI |
|
Heating |
2 Industrial immersion heaters of 9Kw and 18Kw |
|
Other accessories |
Steam trap, pressure switch, float switch , Temp Sensor , Pressure Gauge , Temp Gauge , Non return valve, PID Controller. |
|
Wheels |
Castor Wheel on all 4 stands |
|
Documents |
Operation & Maintenance Manual (SOP) DQ/IQ/OQ/PQ |
|
Safety features |
Safety valve, safety cut off device. |
|
Multi port valve |
Cylindrical shape steam generator made of S.S. 304 Material, Will be attached to underneath the jacket. It will be fitted with ISI marked |
|
Operation on |
230 Volts, 50 Hz, Single Phase, AC Supply |
