High Temperature Furnaces

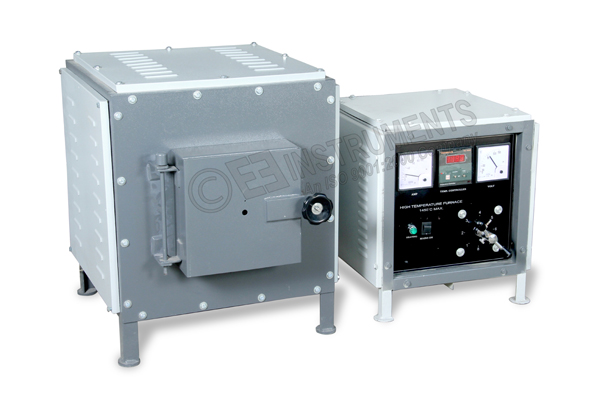

Model Number : EIE-108H14DP2.25
Detailed specification as follows:
FURNACE WORKING TEMPERATURE RANGE
- 1400°C
- 1500°C
FURNACE WORKING SIZE
- 9 X 4 X 4"
- 10 X 5 X 5"
- 12 X 6 X 6"
- 12 X 8 X 8"
- 18 X 9 X 9"
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
Construction Details:
- Table mounting type
- Aesthetic exterior appearance
- Fabricated from Mild Steel Material
- Box type fabrication in a composite assembly of two sections
- Powder coated in attractive shades.
- The heating cavity is located on the left of the assembly, while the control panel with electrical gearing is positioned on the right.
Refractory:
- Internal refractory lining made of Hot Face,, High Alumina, Refractory Fiber insulation backed by low heat capacity.
- Ceramic fiber insulation of different grades with fan cooling for low skin temperature.
Heating Element:
Furnace is Equipped with Matched set of Silicon Carbide Heating Elements, which are horizontally mounted, radiate directly on both sides of the Heating Cavity to derive symmetrical heat distribution.
Optional Accessories (at extra cost)
- Hour Meter
- Over temperature protection with audio alarm
- Data Logger blind - Multi point recorder with software
- Safety door switch
- Programmable Temperature controller/Profile Controller with 16 Profiles (Programs) of 16 Segments Each (8 Ramp + 8 Soak)
Technical specification
|
Maximum Temperature |
1400°C |
|
Working Temperature |
1350 °C |
|
Temperature Accuracy |
±2°C |
|
Temperature Resolution |
1°C |
|
Chamber volume |
2.25 Liters |
|
Inner working size |
9" X 4" X 4" (H x W x D) |
|
Construction |
Fabricated from Mild steel material, which is powder coated in attractive shades |
|
Insulation |
Ceramic Fiber wool insulation |
|
Temperature Control |
Microprocessor Based PID Temperature Programmer/controller with 32 Ramp/dwell segments and 0-5 volts output for the thyristor system. |
|
Temperature sensor |
R - Type Thermocouple |
|
Heating |
Silicon carbide Heating Element - 6 Nos. 18mm dia x 300 mm Length |
|
Door System |
Insert type, swing aside |
|
Time to reach 1250°C |
2.5 hour |
|
Power Control |
Thyristor system |
|
Rating |
5.0 Kw |
|
Power Supply |
230 Volts, 1-phase, A.C. Supply, 50 Hz |
|
Overall Dimensions |
1250(L) X 850W) X 710(H) (mm) Approx. |
|
Weight (Approx.) |
Accessories
fcbd12.png "UNIVERSAL PROGRAMMABLE PROFILE CONTROLLER-RAMP SOAK CONTROLLER-FOR FURNACE, OVEN, INCUBATORS, WATERBATH")
OVER TEMP PROTECTION SYSTEM-WITH AUDIO ALARM
The over temp. protection system is designed to protect your Instrument from overheating. It will cut the power to the heating element when the temperature of the Instrument gets too high. If one temp.control system fails, this system will take over. This will cut off the current to the heater at the preset temp. with audible alarm.
Spares
