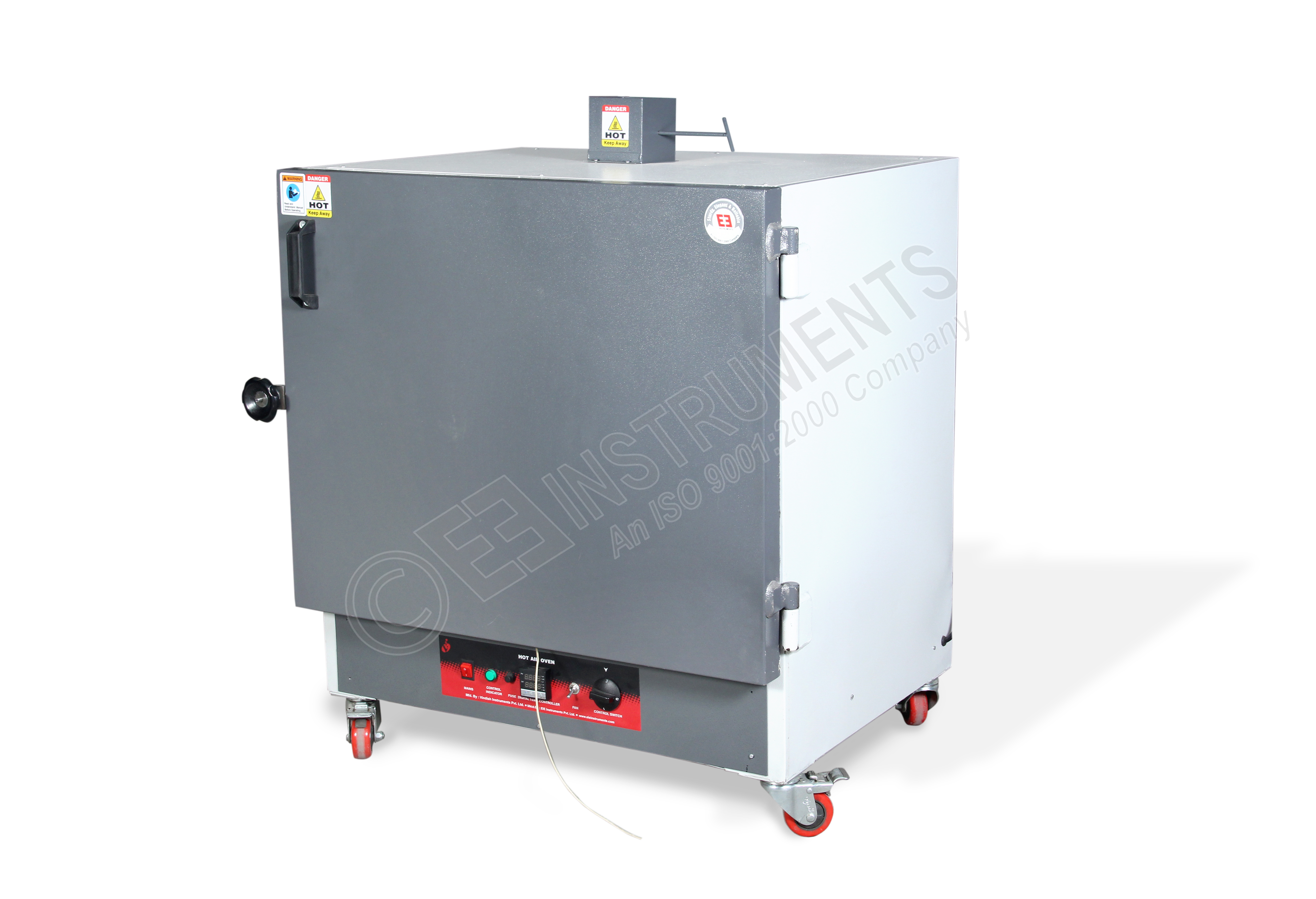

HIGH TEMPERATURE OVEN
Model Number : EIE-103DP121A
Triple walled design for precise temperature control and excellent uniformity.Heaters mounted in preheating chamber at sides of oven 100mm thick insulation, with Digital Temp. controller and forced Air circulation, Inner chamber made of S.S 304, Outer chamber CRC – Powder coated. Working on 230 V AC Single Phase / 440 V AC Three Phase.
Oven Temp.Range
- 350°C
- 450°C
OVEN WORKING SIZE
- 35x35x35 CM
- 45x45x45 CM
- 60X45X45 CM
- 60X60X60 CM
- 90X60X60 CM
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
In This System, There Is One Path Of Circulating Hot Air Between The Inner Chamber And Insulation. Forced Air Moved By The Motorised Blower Is Called Perfect System. It Results In Minumum Temperature Variation At Any Given Point In Working Space.
Construction Details
Triple walled design for precise temperature control and excellent uniformity. Heaters mounted in preheating chamber at sides of oven, 100mm thick insulation, with Digital Temperature controller and forced Air circulation, Inner chamber made of S.S - 304, Outer Chamber CRC - Powder Coated, working on 440 V AC Single PhaseTechnical specification
|
Chamber Size |
60 x 45 x 45 cm (H x W x D) |
|
Chamber volume |
121.50 Liters |
|
No. Of Shelves |
03 Nos. |
|
Rating |
4.0 KW |
|
Outer Chamber |
Exterior body manufactured from Mild steel material - powder coated in attractive shades |
|
Inner chamber |
Fabricated from Polished Stainless steel Material (S.S.- 304 Material) |
|
Insulation |
About 100mm thick glass wool insulation |
|
Heater |
Heating elements placed at sides for uniform heat Distribution |
|
Temp. Range |
100°C - 350°C |
|
Temp. control |
Microprocessor based Auto-Tune Digital PID Temperature Indicator Cum Controller |
|
Temp. Accuracy |
± 1°C or better |
|
Temp. Resolution |
± 0.1°C |
|
Temp. Display |
LED Display |
|
Temp. Sensor |
PT-100 probe |
|
Air ventilation |
Adjustable air ventilation mounted at top |
|
Operation |
Three Phase, 440 Volts, 50 Hz, AC Supply |
|
FAC |
With built-in forced air circulation arrangement for uniform heat distribution inside the working chamber |
|
Standard Supply |
Perforated and adjustable S.S. trays, Pilot indicating lamps, ON/OFF switches, Cord wire and power plug. |
|
Shelves |
Stainless steel crimped wire mesh Shelves to withstand heavy load and to offer minimum resistance to air circulation for better heat distri |
|
Additional Features |
Provision to add more shelves, as per requirement of test - Adjustable Shelves to place test samples or Glass wares of varying dimensions |
Accessories
DIGITAL TEMPERATURE CONTROLLER WITH SOAK TIMER
The function of a soak timer PID Controller is to control the temperature at the specified setpoint for the period of soak time set by user. After the soak time is over the control output will be disabled. The second relay can be configured as an annunciator to indicate that soak is finished. Soak time is in minutes .
