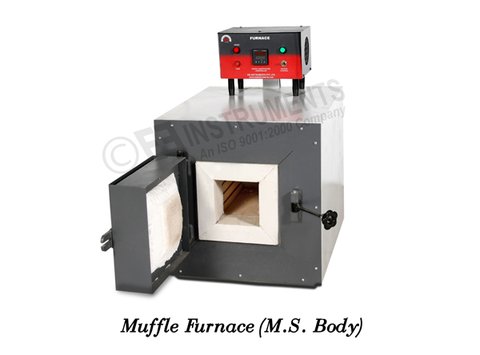

LABORATORY FURNACE

Laboratory Furnace

Model Number : EIE-108DG12

Light weight with ceramic ceramic wool insulation. The outer casing made of thick Stainless steel-matt finished. Heating chamber consit of grooved refractory bricks in which heating elements are inserted in coil form and are easily replaceable. Temperature controlled by Dual display microprocessor based Digital temperature indicator cum controller with K type sensor. compensating cable etc.working on 440 V .Max. Temperature. : 1200 °C & Working Temp. : 1150 °C. Detailed Specification as follows:

TYPE OF FURNACE
  • MUFFLE FURNACE (900°C)
  • REFRACTORY FURNACE (1200°C)
MATERIAL OF CONSTRUCTION
  • COMPLETE S.S.(GMP)
  • OUTER CRC WITH POWDER COATED
FURNACE WORKING SIZE
  • 9 X 4 X 4"
  • 10 X 5 X 5"
  • 12 X 6 X 6"
  • 12 X 8 X 8"
  • 18 X 9 X 9"
Add to Cart
  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton

Salient Features :

  1. Horizontal, front loading type
  2. Improved model
  3. Exterior body made of Stainless Steel ‑ S.S. 304 Grade
  4. Ceramic fiber wool insulation (instead of brick insulation)
  5. Ceramic fiber wool insulation results in weight and size reduction of furnace.
  6. The weight and size of the furnace is (1/4 times )and 30% less respectively as compared to brick furnace.
  7. The heat up time is less
  8. Heat loss is very low‑resulting in power saving
  9. Supplied with calibration certificate for Digital temperature controller cum indicator
  10. Supplied complete with IQ, OQ, PQ Documentation and instruction manual


Vent Port :

Built in vent port for removal of noxious gases etc preferably with a provision of connecting the extension pipe with vent lid should be air tight for Volatile Matter analysis.


Calibration port (If required by indenter) :

Provision of hole with cover will be provided in the furnace door for putting temperature sensor for calibration of equipment


Safety Features :

Thermocouple breaks protection to cut power to the heating element in order to prevent thermocouple failure runway condition.


Standard Fittings supplied with the instrument :

  1. Compensating cable
  2. Indicating lamps
  3. Indian Standard Power plug & cord


Optional Accessories (at extra cost)

  1. Hour Meter
  2. Over temp.protection with audio alarm
  3. On site Validation services
  4. Data Logger blind - Multi point recorder with software
  5. Safety door switch
  6. Programmable Temp.controller/Profile Controller with 16 Profiles (Programs) of 16 Segments Each (8 Ramp + 8 Soak)


Note : The heating coils of the furnace are warranted for 1000 working hours or 12 Months whichever earlier from the date of usage.


Technical specification
up-botton

Maximum Temperature

1200°C

Working Temperature

1150 °C

Temperature Accuracy

± 2 °C

Temperature Resolution

± 1 °C

Inner working size

12" x 08" x 08" (300 mm D x 200 mm W x 200 mm H)

Outer Size

24" x 24" x 30" (600 mm D x 600 mm W x 750 mm H)

Chamber volume

12 liters

Temperature sensor

K type sensor (Thermocouple)

Rating

7.5 KW

Temperature Control

Dual display microprocessor based AUTOT TUNE Digital PID temperature indicator cum controller

Construction

Exterior body made of Stainless Steel Material - S.S. 304 Grade

Insulation

Ceramic fiber wool insulation

Heating

KANTHAL A 1 wire in coil form placed in the Elements ribs & easily replaceable

Circuit Wiring

As per CE Norms

Operation on

440 Volts, three phase, AC Supply
