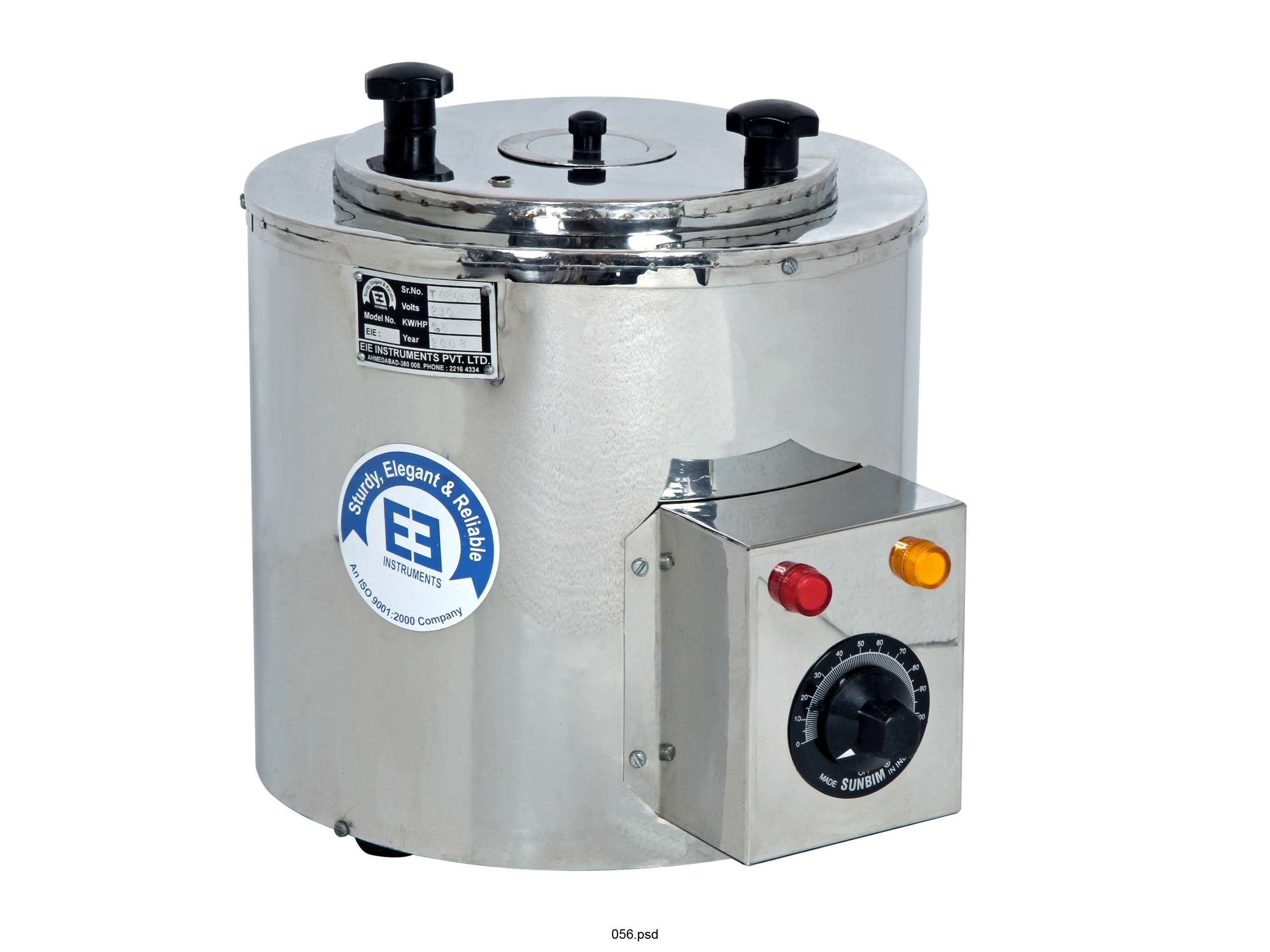

OIL BATH-ROUND-WITH JACKETED CHAMBER-COMPLETE S.S.-300 MM DIA X 450 MM HEIGHT

Model No: EIE-407DG30

Double walled, Full S.S.304 construction, Fully argon welded, with Digital Temp.controller. The Oil bath accommodates 5 Ltrs RB Flask or similar vessel. Working on 230 Volts AC single Phase.

Applications:

Laboratory high temperature heating applications
Temperature sensor calibration also possible

Salient Features:

Aesthetic outer appearance
Unique design
Compact and bench top design
Jacketed inner chamber
Highly insulated chamber
Indirect heating through jacketed chamber
Excellent heating accuracy
All interior and exterior parts are argon welded
Easy to operate
Complete Stainless Steel Design
Supplied without high temperature oil (Provided at extra cost)
Supplied complete with cord wire and power plug.

Optional accessories at extra cost:

Holder for temperature sensors/Thermometers @ Rs 1000.00

Note:

Customer has to specify the exact application of Oil Bath at the time of order.

Chamber Dimensions	300 x 450 mm (12" x 18") (Dia X Height)
Bath Volume	30 Liters
Can accommodate	20 Liters Flask Capacity
Construction	Triple walled Construction with Jacketed inner chamber
Inner chamber	Fabricated from polished stainless steel material S.S. - 304 grade
Exterior body	Fabricated from matt finished Stainless Steel material S.S. - 304 Grade
Insulation	Glass wool insulation between inner chamber and exterior body to prevent direct thermal heat loss
Temperature Range	From 5 °C above ambient to 300 °C
Heating	Heated by Immersion heaters installed within the inner chamber
Temperature controller	Microprocessor based Auto-Tune PID Digital Temperature controller cum indicator
Temperature Stability	± 0.5 °C
Temperature Resolution	0.1 °C
Temperature Accuracy	± 1 °C
Temperature Uniformity	± 2 °C
Temperature sensor	PT-100
Heating type	Indirect heating due to Jacketed chamber
Heater control	By control switch installed in the control panel
Heater Status	Control indication lamp
No of SSR (Solid State Relay)	01 No - UNISON/Reputed Make
Perforated Platform	For placement of the flask or other glass wares
Power Consumption	5.0 KW
Operation on	230 Volts, 50 Hz, Single phase, AC Supply
