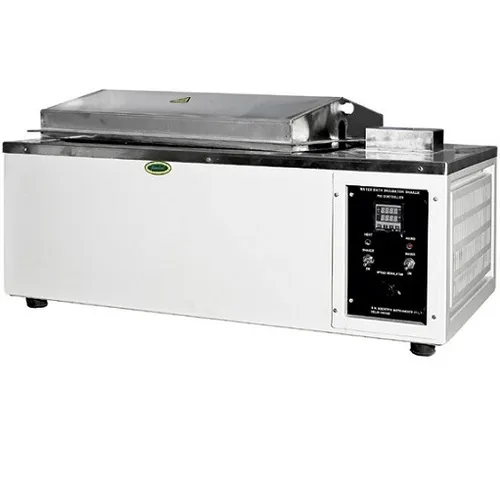

Double walled, inner chamber S.S.304, Outer chamber CRC - Powder coated, with Plain S.S.Lid to restrict evaporation, Rockwool insulation, Temp.range from 5°C above ambient to 100°C, Suitable to accommodate 4 test tube racks or stand but supplied without test tube rack or stand. Higher capacity bath to accommodate upto 8 racks also available. Gabled Lid as shown in photograph is available ay extra cost
Salient Features:
- Double walled design
- Inner chamber is made of mirror polished stainless steel material S.S. 304
- Exterior body is fabricated from Mild steel material which is powder coated in attractive shades
- The gap between the inner chamber and exterior body is filled with glass wool insulation to avoid thermal loss
- The bath is ARGON WELDED to ensure lifetime leakage free performance. (No soldering)
- Bath is fitted with specially designed Tubular Heating Element extending to the length of the bath for uniformity of temperature
- Bath Panel consists of 2 pilot LED lamps & on/off switch
- Instrument is also equipped with drainage valve facility to empty the bath after the end of experiment.
Note:
Water baths in full S.S. construction is also available. Price on request.
Overall Dimensions |
810 X 425 X 505 (L X W X D) mm |
