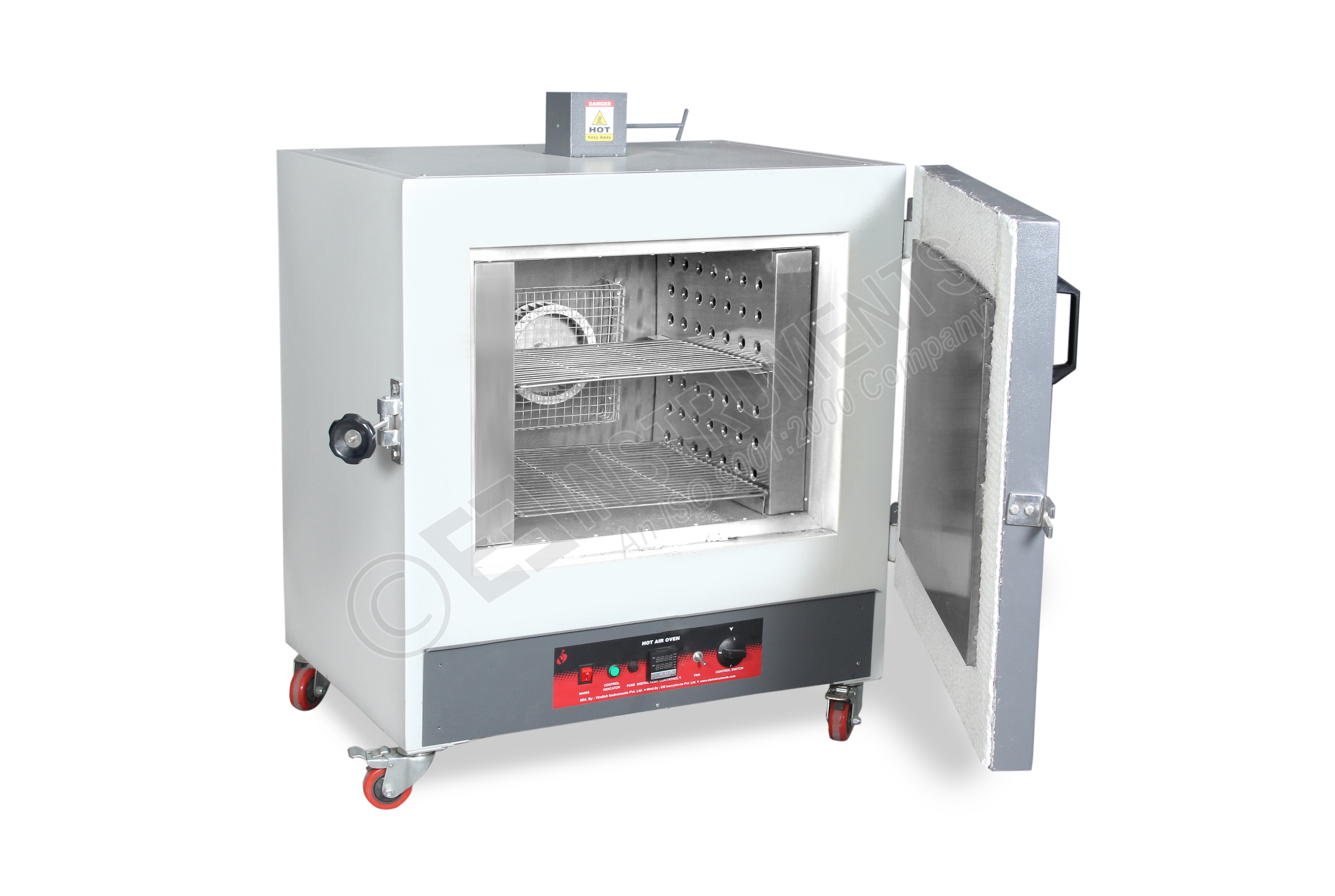

UNIVERSAL OVEN
Model Number : EIE-102DP247
Double Walled, Outer CRC - powder coated, Inner S.S.304, 100 mm thick glass wool insulation, 80 / 20 nichrome heating elements placed under ribs at bottom and sides for uniform heat distribution,Temp. Range. 50˚C to 300˚C thermostatic control or Auto tune dual display digital controller, built in forced air circulation arrangement, Working on 230V AC .
UNIVERSAL OVEN SIZE
- 35X35X35 CM
- 45X45X45 CM
- 60X45X45 CM
- 60X55X75CM
- 60X60X60 CM
- 90X60X45 CM
- 90X60X60 CM
UNIVERSAL OVEN CONTROLLING SYSTEM
- THERMOSTATIC-300°C
- DIGITAL-300°C
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
Technical specification
Working size |
60 X 55 X 75 cm ( H X W X D) |
No. Of Shelves |
03 Numbers |
Rating |
3.0 KW |
Outer Chamber |
CRC - powder coated |
Inner chamber |
S.S.304 mirror polished |
Insulation |
100mm high density Glass wool insulation on all sides for minimum heat loss |
Heating element |
With heating elements on three sides, ensuring uniform temp. distribution throughout the chamber |
Heater |
Sealed and enclosed heaters to working chamber for minimum heat loss |
Temperature Range |
50°C to 300°C |
Controller |
Auto tune PID Digital indicator cum controller |
Control Accuracy |
+/1°C or better |
Heating element |
80/20 nichrome heating elements, ensuring long lasting and continuous heating |
Door lock |
Special heavy duty Stainless steel lock and door hinges with spring and roller mechanism |
Shelves |
Stainless steel crimped wire mesh Shelves to withstand heavy load and minimum resistance to air circulation for better heat distribution |
Other provisions |
Provision to add more shelves, as per requirement of test Shelves adjustable to place test samples or Glass wares of varying dimensions |
Ventilation |
Adjustable air ventilation at top |
Blower |
Motorized blower for forced air circulation |
Operation on |
220/230V AC single phase |
Complete with |
Pilot indicating lamps, 2 mtr. cord wire and power plug. |
