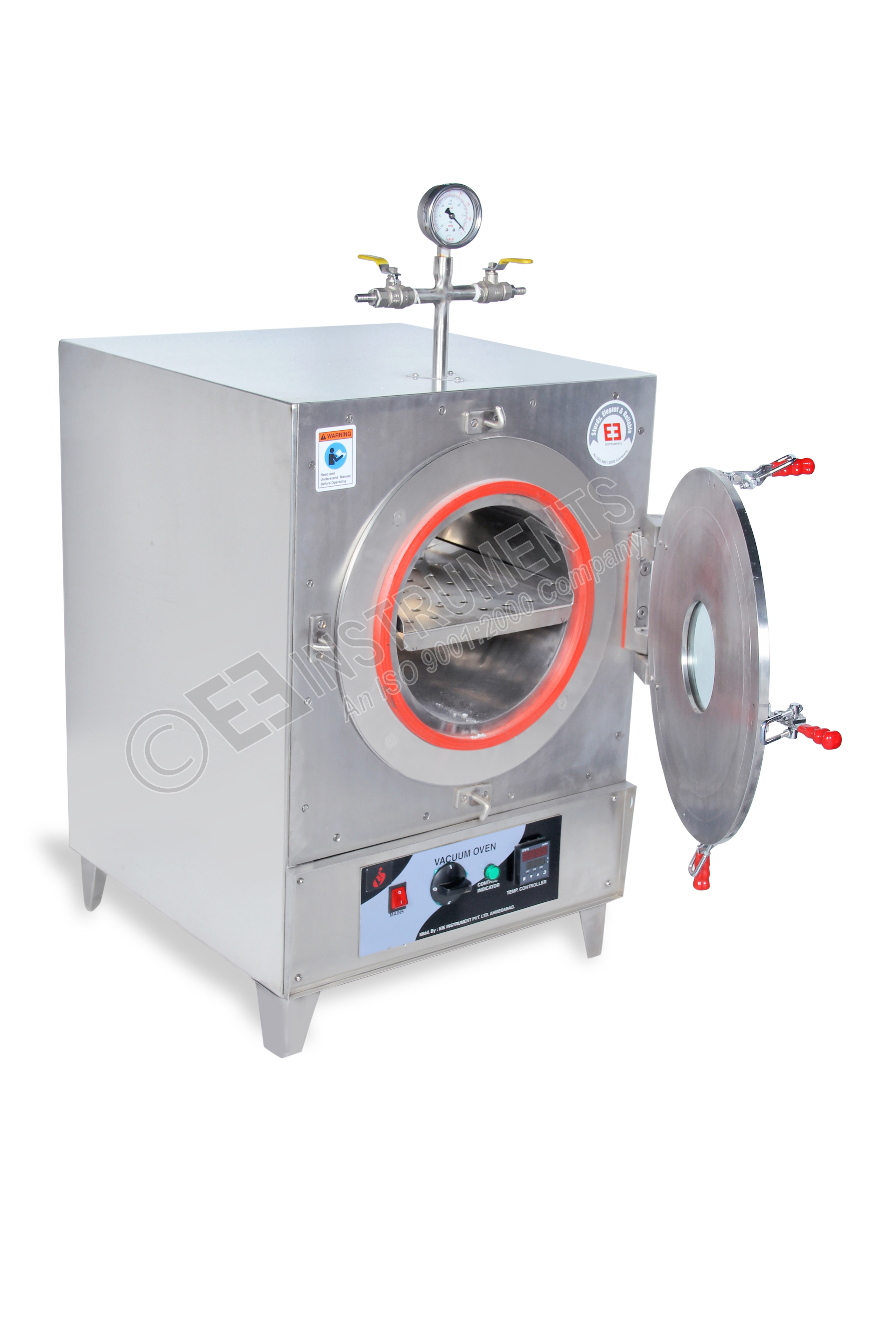

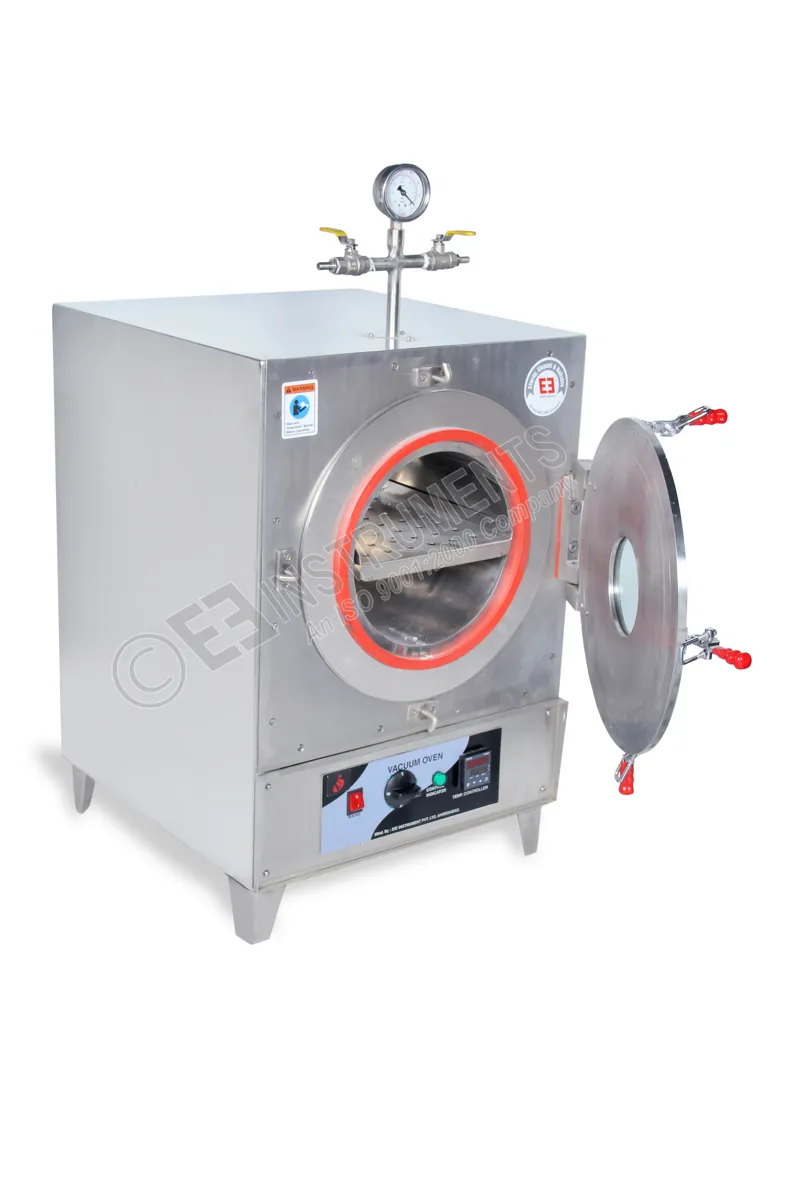

VACUUM OVEN
Model Number : EIE-104ROG08
Double walled, working chamber of cylindrical design made of S.S.316 mirror polished and outside made of S.S.304. The door is of S.S. with center glass window for viewing without opening the door. Temp.controlled from 50°C - 200°C by AUTO TUNING PID Digital Temp. indicating controller, complete with Vacuum gauge, vacuum release valve, a removable shelf but without vacuum Pump. Working on 230 V AC Single phase.
MATERIAL OF CONSTRUCTION
- INNER S.S.
- COMPLETE S.S.(GMP)
OVEN SIZE
- 20 X 25 CM
- 25 X 30 CM
- 30 X 30 CM
- 30 X 38 CM
- 30 X 30 X 30 CM
- 35 X 35 X 35 CM
- 45 X 45 X 45 CM
- 45 X 45 X 60 CM
CHAMBER TYPE
- ROUND
- RECTANGULAR
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
Double walled, working chamber of cylindrical design made of S.S.316 mirror polished and outside made of S.S.304. The door is of S.S. with center glass window for viewing without opening the door. Temp.controlled from 50°C - 200°C by AUTO TUNING PID Digital Temp. indicating controller, complete with Vacuum gauge, vacuum release valve, a removable shelf but without vacuum Pump. Working on 230 V AC Single phase.
Salient Features
- Compact and unique design
- Aesthetic exterior appearance
- Highly reliable results
- Reliable components and accessories to ensure quality
- Gasket door with lock provides temperature safety and stability.
- Toughened glass window for easy viewing of the samples
- Automatic high‑temperature safety cut‑off system.
Note
- Complete with Vacuum gauge, vacuum release valve and a removable shelf, but without vacuum Pump.
- Client has to arrange vacuum pump on his own or can order optionally.
Technical specification
|
Temperature Range |
50 to 200°C |
|
Temperature controller |
Microprocessor Based Auto-Tune PID Temperature controller |
|
Temperature Accuracy |
± 3°C |
|
Chamber volume |
08 Liters |
|
Chamber Size |
20 cm Dia x 25 cm Depth |
|
Kilo Watt |
0.75 kw |
|
Temperature sensor |
PT-100 Type |
|
Temperature Display |
LED Display |
|
Exterior body |
Made of S.S. 304 Grade polished material |
|
Inner chamber |
Made of thick 316 grade polished stainless steel material |
|
Insulation |
High Quality Glass Wool Insulation |
|
Door material |
S.S. door with toughened glass viewing window |
|
Door gasket |
Silicon Door gasket |
|
Maximum Vacuum |
760mm Hg with separate vacuum pump |
|
Vacuum Indication |
2" Vacuum gauge |
|
Provided with 1/2 Nos |
316 grade SS trays (removable) |
|
Operates on |
230 Volt, 50 Hz, Single Phase, Ac Supply |
|
Overall Dimensions |
520 X 600 X 960 (L X W X D) mm |
