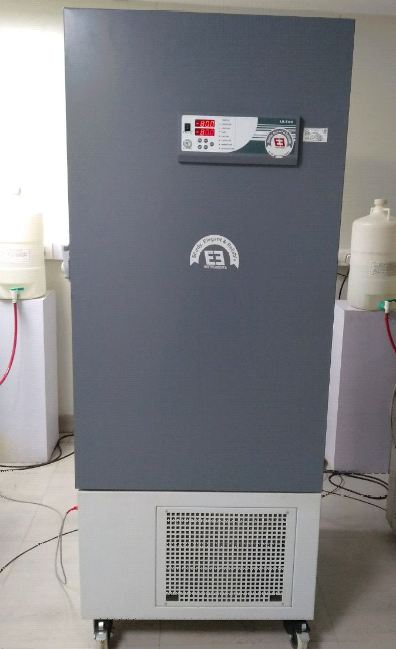

VERTICAL DEEP FREEZER

VERTICAL DEEP FREEZER

Model Number : EIE-205VP549

Detailed Specification as follows.

VERTICAL DEEP FREEZER SIZE
  • 30 X 30 X 30 CM
  • 70 X 35 X 40 CM
  • 90 X 43 X 45 CM
  • 110 X 40 X 40 CM
  • 110 X 50 X 50 CM
  • 110 X 55 X 55 CM
  • 110 X 60 X 60 CM
  • 130 X 65 X 65 CM
DEEP FREEZER TEMPERATURE RANGE
  • -25 °C
  • -40 °C
  • -80 °C
Add to Cart
  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton

Specifications :

  1. Temp. Range     :  0°C  to - 26°C
  2. Tempe Controller : Microprocessor based Auto-Tune Digital PID controller
  3. Sensor              : PT-100 sensor
  4. Resolution        : 0.1 °C
  5. No of trays       : 3 Nos - Adjustable
  6. Audio Alarm for high and low temperature.
  7. CFC free refrigeration system.
  8. Heavy duty Castor wheels for easy movement
  9. Control of temperature within 3°C of set temperature.
  10. Duly Polished 304 Grade Stainless Steel inner chamber.
  11. Outer made of Mild Steel with powder coated.
  12. Fin & Tube type air-cooled condenser.
  13. Double walled main door (Interior lined with stainless steel) with sub doors.
  14. Sub doors made of stainless steel sheet.
  15. Gasket system for leak proof.
  16. Heavy duty hinges.
  17. Lock with key for door.
  18. Polyurethane Insulation (PUF).


Technical specification
up-botton
DEEP FREEZER-VERTICAL--25 C-130 X 65 X 65 CM-

Working Chamber Size

130 x 65 x 65 cm (H x W x D)

Chamber volume

549 Liters

Exterior body

Mild steel material

Paint

Powder coating in attractive shades

Operates on

230 volts, 50 hz, Single Phase, AC Supply

Mobility

On castor wheels
