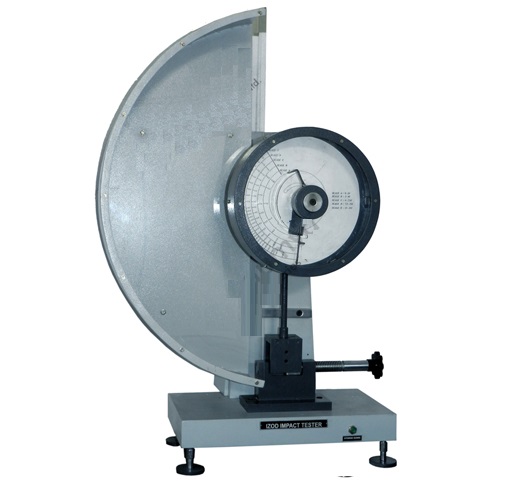

IZOD IMPACT TESTING MACHINE
Model Number : EIE-PVC-07A
None
TYPE OF MODEL
- ANALOG
- DIGITAL
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
Compliance standards:
ASTM D256
Applications:
Izod Impact Tester covers the determination of the resistance to breakage by flexural shock of plastics and electrical insulating materials.
Test method:
The specimen is held as a vertical cantilever beam and is broken by a single swing of the pendulum with the line of initial contact, at a fixed distance from the specimen clamp and from the centerline of the notch and on the same face as the notch. The measurement is in kg.
Technical specification
IZOD IMPACT TESTING MACHINE - PLASTIC - ANALOG - ASTM D256-
Weight |
120 kgs |
Angle of fall of pendulum |
1.3725 kg |
Minimum graduation |
0.005 kg |
Striking Velocity of Pendulum |
2.3402 m/s |
Maximum permissible loss by friction and winding |
0.5% |
Hammer and vice |
As per ASTM D256 |
