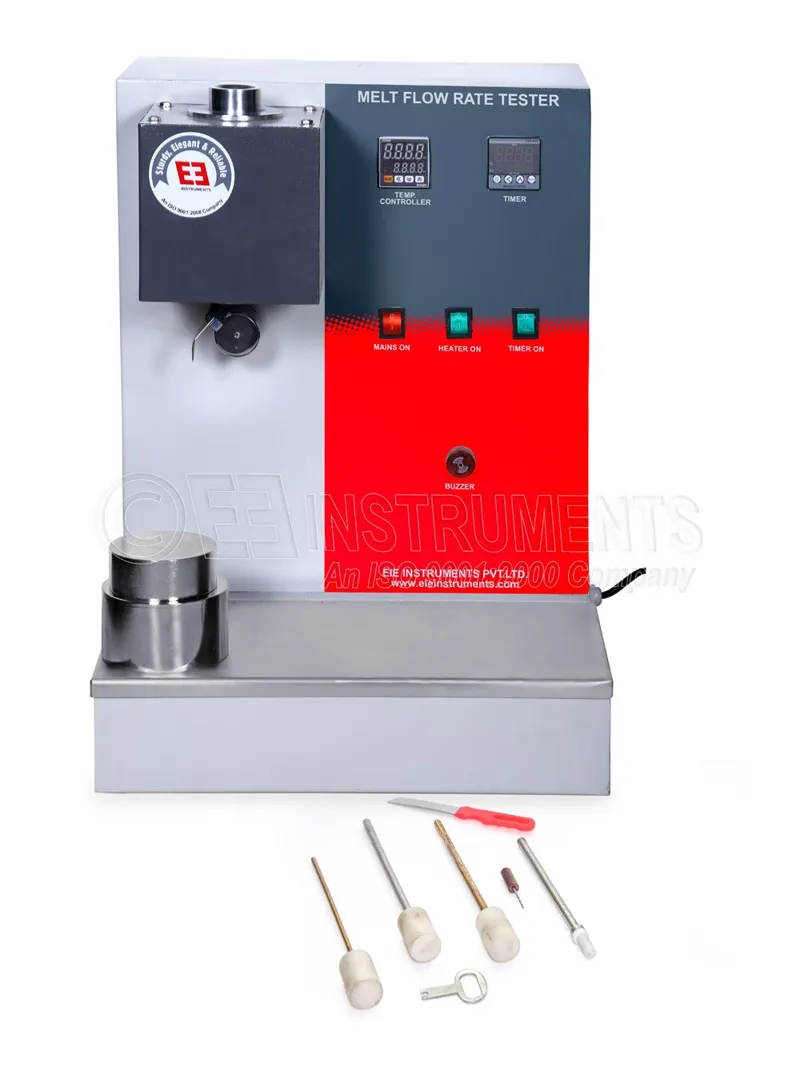

MELT FLOW INDEX TESTER
Model Number : GT-109MCMW
ECONOMY model with manual cutting and Manual sample weighing as per ASTM method A. Further details as mentioned under description.
MFI OPERATION
- MANUAL SAMPLE CUTTING
- AUTOMATIC SAMPLE CUTTING
- FULLY AUTOMATIC OPERATION
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
Technical specification
Temperature controller |
Microprocessor based Digital Temperature Controller |
Temperature Range |
0 to 400 ⁰C, |
Temperature Resolution |
up to 0.1 ⁰ C |
Temperature Accuracy |
± 0.1 % F.S.D. |
Timer |
Microprocessor based Digital Timer |
Timer Range |
0 - 999.9 Seconds and having Preset facility with buzzer output |
Dead weight |
2.16 Kg & 5 Kg hard chrome plated weights. |
Accessories Supplied |
Orifice, Piston, Material charger, Barrel Cleaner, Orifice cleaner, Sample cutter |
Sample cutting |
Manual Type |
Weight Lifting |
Manual Type |
Sample weighing |
Manually With external Electronic balance |
Exterior body |
Fabricated from Mild Steel Material |
Body Paint |
Powder Coated in attractive shades |
Power Supply |
230 Volt , 50 Hz, Single Phase, AC Supply |
Amperes |
4 Amps |
Dimensions |
17" x 17" x 25" (W x D x H) |
Weight |
45 Kgs |
Model |
Table Top Model |
