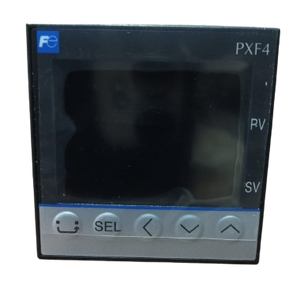

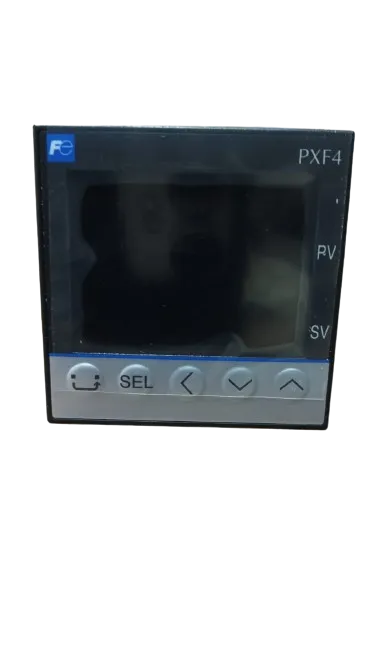

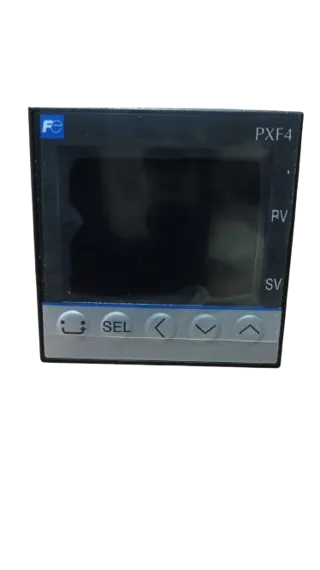

UNIVERSAL PROGRAMMABLE PROFILE CONTROLLER-RAMP SOAK CONTROLLER

Print

For Programming the Rate of Temp. rise v/s time

More Information
Technical specification
Accessories
Spares

More Information

Universal Input (Thermocouples, RTD Pt100, DC Linear mA/mV/V)
Universal Control Output (Relay / SSR Drive / DC Linear)
Programmable Range / Resolution for DC Linear Inputs
Programmable Input Signal Conditioning (Digital Filter & Zero Offset)
16 Profiles (Programs) of 16 Segments Each (8 Ramp + 8 Soak)
Facility to Link Programs to Build Larger Profiles (Upto 256 Segments)
Programmable Hold Band for Each Profile
Online Profile Pause, Segment Skip / Advance
Programmable Repeat Cycles for Each Profile
Optional Programmable Event Outputs per Segment
Self Tune PID, On-Off, Manual Control Mode
Uni-Directional / Bi-Directional Control
Optional Programmable Alarms / Retransmission Outputs
Optional Serial Communication Port
Sizes (mm) : 48(H) X 48(W) X 110(D)
