DIRECT SHEAR APPARATUS
Model Number : TM-065-5010
As per IS:2720 (Part XXXIX)/ IS 11593. Supplied with Load Frame, shear box assembly, set of weight, High sensitivity Proving Ring for shear load measurement, capacity : 30 kN (3000 kgf), Consolidation Dial Gauge 0.01 mm x 25 mm, Strain Dial Gauge 0.01 mm x 25 mm with magnetic spacer, etc. Suitable for operation on 415 volts, 50 Hz, 3 phase, A.C. Supply. Further details as per the following pages.
SHEAR BOX MOULD SIZE
- REGULAR VERSION (60 X 60 MM SQUARE SHEAR BOX)

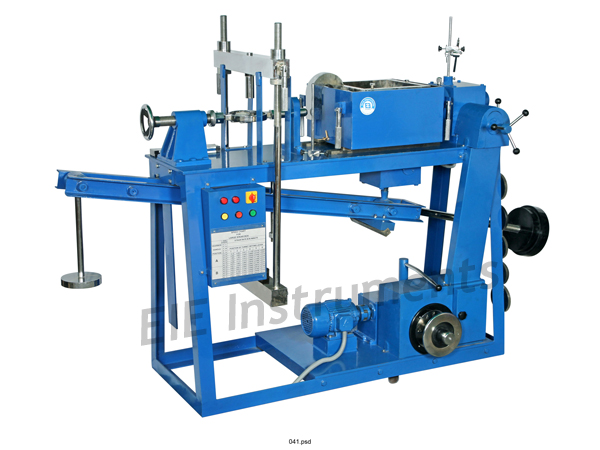

- LARGE VERSION (300 X 300 MM SQUARE SHEAR BOX)
TYPE OF OPERATION
- WITH PROVING RING & DIAL GAUGE
- ELECTRONIC CONTROLLER WITH PC SOFTWARE
SPEED VARIANT
- SINGLE SPEED MODEL

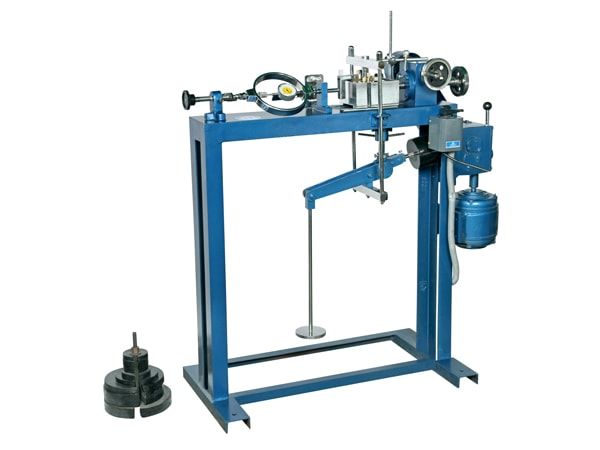

- TWELVE SPEED MODEL
- 72 SPEED MODEL
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
The apparatus consist of :
- Load Frame Fitted with a motor, gear box & loading lever system. Shear Load Capacity : 50kN (5000kgf) Vertical Load
- Capacity : 50 kN/m2 , No. of Speeds : 72-ranging from 0.0014 mm/min to 10.16 mm/min. change gears : 12
- Shear Box assembly for square specimen size 30 x 30 x 15 cm, 1 off
- Plain gripper plates 2 off
- Perforated Gripper Plates, 2 off
- Perforated Spacer Plates, 2 off
- Base Plate, 1 off
- Loading Pad, 1 off
- Shear Box housing, large, complete with two ball roller strips, 1
&
Set of Weights :
- 20 kg-5 off each to give 50 kN / m2 (0.5 kg/cm 2)
- 10 kg-2 off each to give 25 kN / m2 (0.25 kg/cm 2)
Supplied with following accessories :
- High sensitivity Proving Ring for shear load measurement, capacity : 50kN (5000 kgf) one.
- Consolidation Dial Gauge 0.01 mm x 25 mm one.
- Strain Dial Gauge 0.01 mm x 25 mm with magnetic spacer, one
- Suitable for operation on 415 volts, 50 Hz, 3 phase, A.C. Supply.
