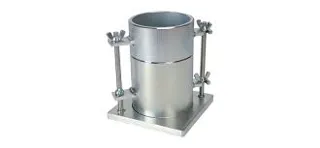

PROCTOR COMPACTION MOULD 100MM DIA - MILD STEEL*

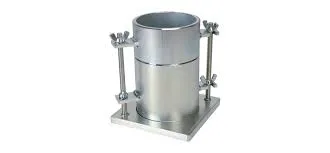

PROCTOR COMPACTION MOULD 100MM DIA - IS 10074

Model Number : EIE-ST-24ISSm

Standard compaction mould, As per IS 2720 (Part VII) 1980 and IS 10074-1982. With base plate and collar. Proctor Rammer available at extra cost. Also available as per ASTM D1557 / BS 1377-4


Compliance Standards

IS 2720 (Part VII) 1980, IS 10074


Details

  1. Cylindrical mould of Mild steel having volume of 1000 cc with an internal diameter of 100 ± 0.1mm and an internal effective height of 127.3cm ± 0.1mm.
  2. Fitted with a detachable base plate and removable extension collar with 60mm height.
  3. The internal surface of the mould will be smooth.
  4. Proctor Rammer available at extra cost
  5. Proctor Mould also available in Gun metal (Optional)
  6. Also available as per ASTM D1557 / BS 1377-4

Overall Dimensions

170 X 170 X 200 (L X W X D) mm

Weight (Approx)

4.600 kg
