PROVING RING-COMPRESSION TYPE-25 KN - WITH DIAL GAUGE

COMPRESSION PROVING RING-25 KN

Model Number : TM-135-25K

As per IS 4169:2014 (ISO 376:2011, Reaffirmed 2020). Proving rings are typically made from high-grade steel alloys, chosen for their elastic properties and durability. The special manufacturing process ensures the consistent and precise force measurements. Available in the capacity ranging from 0.5 KN to 3000 KN.


  1. Provided with self aligning compression Pads.
  2. Repeatability is as stipulated in IS : 4169-1967.
  3. The ring is supplied complete with dial gauge and calibration chart.

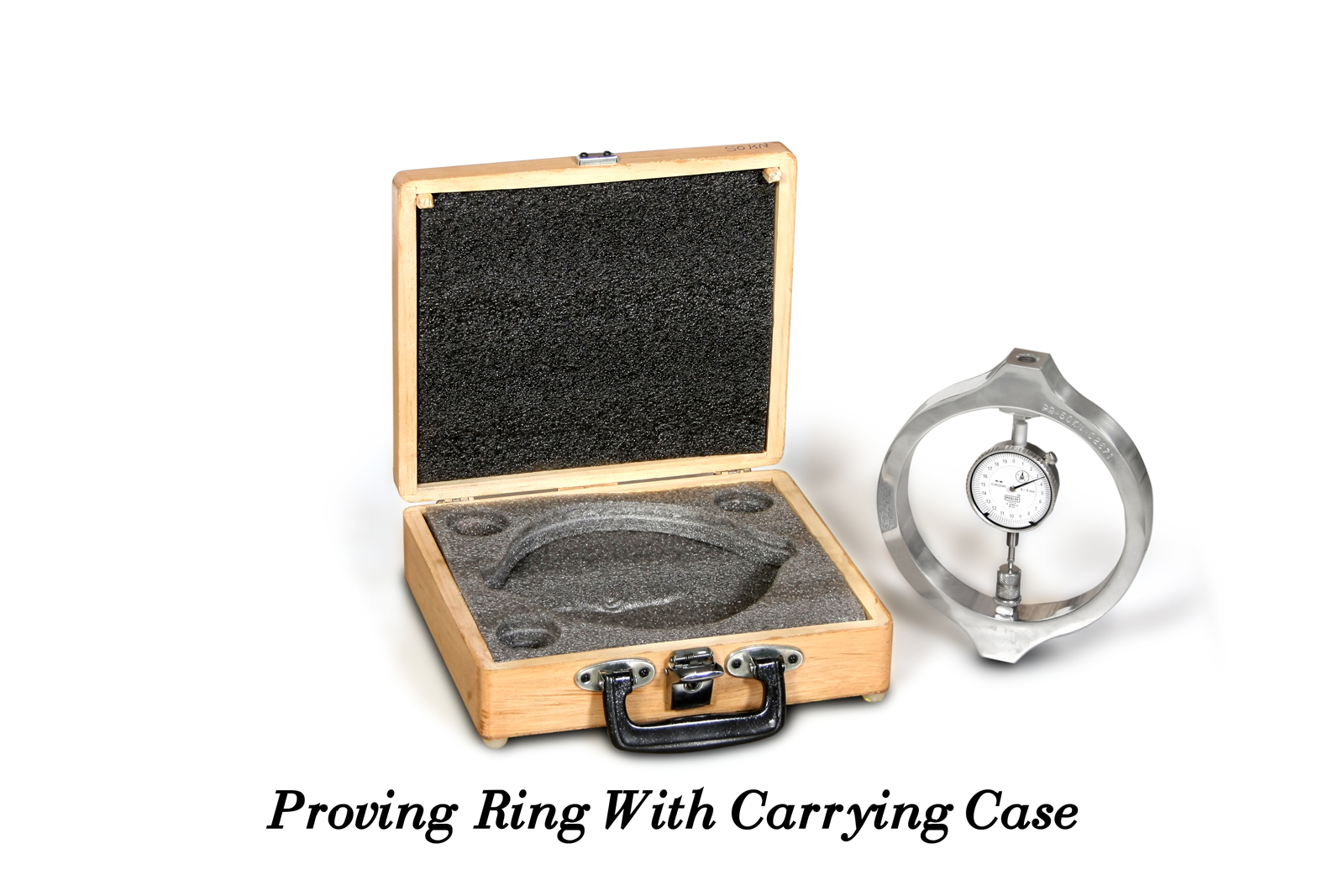

  4. Packed in polished wooden boxes.
  5. NABL/NCCBM Calibration available at extra cost
  6. Tension/Compression Provings / Digital Load Cell with indicators are also available.


Overall Dimensions

280 X 275 X 80 (L X W X D) mm

Net weight (in kg)

3.5
