RELATIVE DENSITY APPARATUS

RELATIVE DENSITY APPARATUS

Model Number : TM-144

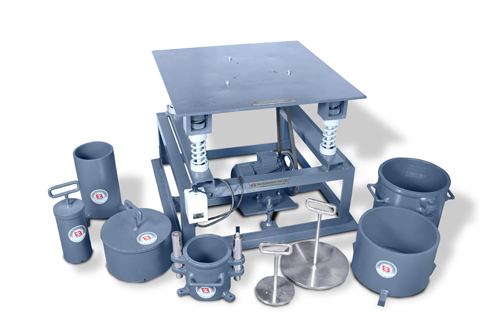

The equipment comprises a motorized vibratory table of size 75 mm x 75 mm, which operates on 440 Volts, Three phase, A.C. Supply. Also, consists of a cylindrical mould 3000 cm3 and 15000 cm3, guide sleeve with clamp for moulds, surcharge base plate, surcharge weight for 3000 and 15000 cm3, handle for base plate, dial gauge holder, dial gauge 0.01 mm x 50 mm travel with extension piece calibration bar 75 x 300 x 3 mm.


Compliance with following International Standards:

AS PER IS: 2720 (PART XIV)


The equipment comprises following:

  1. A motorized vibratory table of dimensions 75cm x 75cm .
  2. It will vibrate at a frequency of approx. 3600 vibration per minute under a load of 115 kg with fixed amplitude.  It will be suitable for operation on 415V, 50Hz, 3‑Phase AC Supply.
  3. Cylindrical Mould of 3000 cm3 capacity complete with guide sleeves and clamp, assembly surcharge weight with base plate and handle is equivalent to 140 gm/cm2.
  4. Cylindrical Mould of 15000 cm3 capacity complete with guide sleeves and clamp, assembly surcharge weight with base plate and handle is equivalent to 140 gm/cm2.
  5. Dial Gauge Holder
  6. Dial Gauge 0.01mm x 50mm with travel with extension piece ‑ 1 No
  7. Calibration bar 75mm x 300mm x 3mm ‑ 1 Set
  8. Complete with Tool Kit & Instruction Manual.


Overall Dimensions

920 X 840 X 1170 (L X W X D) mm

Net weight (in kg)

343 kg
