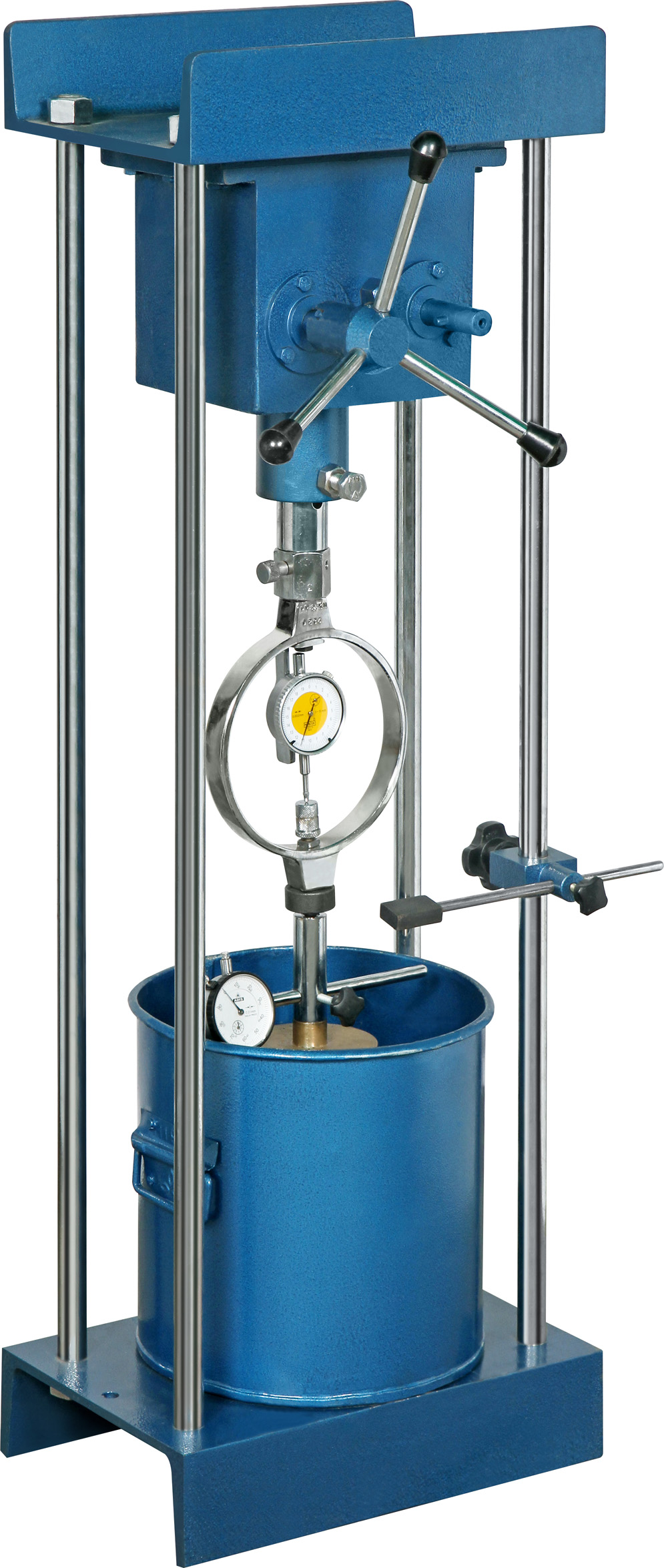

SWELL PRESSURE TEST APPARATUS WITH PROVING RING AND DIAL GAUGE*

SWELL PRESSURE TEST APPARATUS - IS: 2720(Part 41)1977 / IS: 11550 (1985)

Name: SWELL PRESSURE TEST APPARATUS - IS: 2720(Part 41)1977 / IS: 11550 (1985)
Rating: 4.4 (89 reviews)

Model Number : TM-164-1

The swell pressure test apparatus for soil, as per IS: 2720 (Part 41) 1977 and IS: 11550 (1985), is designed to measure the swelling pressure exerted by expansive soils when they come into contact with water and swell under a confined state.

More Information
Techincal Specification

As PR IS: 2720(Part 41)1977 / IS: 11550 (1985)

One loading unit hand operated 5000 kg capacity with two rates of travel
One Gun metal mould, 100mm dia x 127.3 cm height X 1000 cc volume with base plate & collar
One perforated swell plate 100mm dia X 16mm thick
One spacer 100mm dia X 12.7mm thick
Two porous stone of 100mm dia X 12.7mm thick
One load transfer bar
One steel ball & one soaking tank, 250mm dia x 210mm high
Dial gauge 0.01mm X 25mm travel
Proving ring of 2.5 KN capacity with calibration chart and carrying case.
