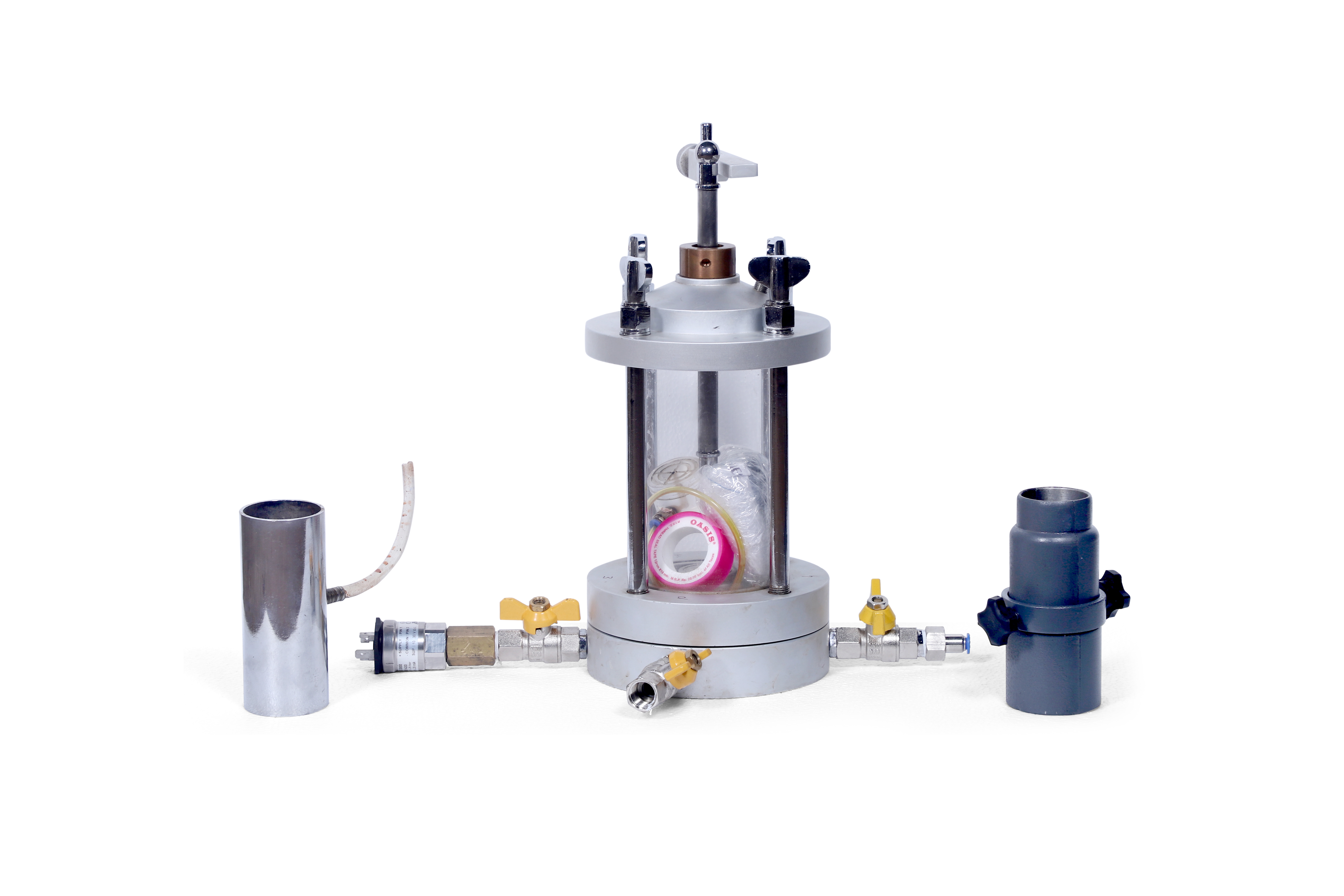

TRIAXIAL CELL - 38MM & 50MM DIA SOIL SPECIMEN

TRIAXIAL CELL - 38MM & 50MM DIA SOIL SPECIMEN

Model Number : TM-172-3

A triaxial cell is a crucial component in the triaxial shear test of soil to determine soil shear strength parameters, particularly the cohesion and angle of internal friction. The triaxial cell provides a controlled environment where soil samples can be subjected to stress conditions similar to those encountered in the ground, including both confining pressure and axial stress.


As Per IS : 2720 (PART -XII) (Stationary Bushing) for 38mm and 50mm dia. Specimens.

Pressure-tight Chamber: The cell is made of high-quality, corrosion-resistant material to maintain a sealed, pressure-tight environment. It can withstand the maximum confining pressures required for different types of soils.

Membrane and O-ring Seals: A rubber membrane encases the soil sample to prevent water entry, with O-ring seals at both ends to prevent fluid leakage.

Piston for Axial Load: The triaxial cell haa a piston (loading ram) that transfers the axial load to the sample. This piston is carefully aligned and frictionless to avoid additional forces on the specimen.

Valves for Saturation and Drainage: It haa ports for drainage and saturation, allowing water or air to be added or removed as needed for different test configurations (e.g., consolidated-drained or consolidated-undrained tests).

Supplied complete with :

  1. Loading pad made of Perspex for 38mm & 50mm Dia. Specimens.
  2. Pair of plain discs made of Perspex for 38mm & 50mm Dia. X 6mm thick.
  3. Pair of porous stone 38mm & 50mm Dia. X 6mm thick.
  4. Split sand former for 38mm & 50mm Dia. Specimen.
  5. Sheath stretcher for 38mm & 50mm Dia. Specimen.
  6. One dozen rubber sheaths for 38mm & 50mm Dia. Samples.
  7. For synthetic rubber 'O' rings for 38mm & 50mm Dia. Specimen.
  8. One Plastic drainage tube.

Also availble as per ASTM D4767, ASTM D2850,BS 1377-7 and EN ISO 17892-8/9

Overall Dimensions

180 X 180 X 310 (L X W X H) mm
