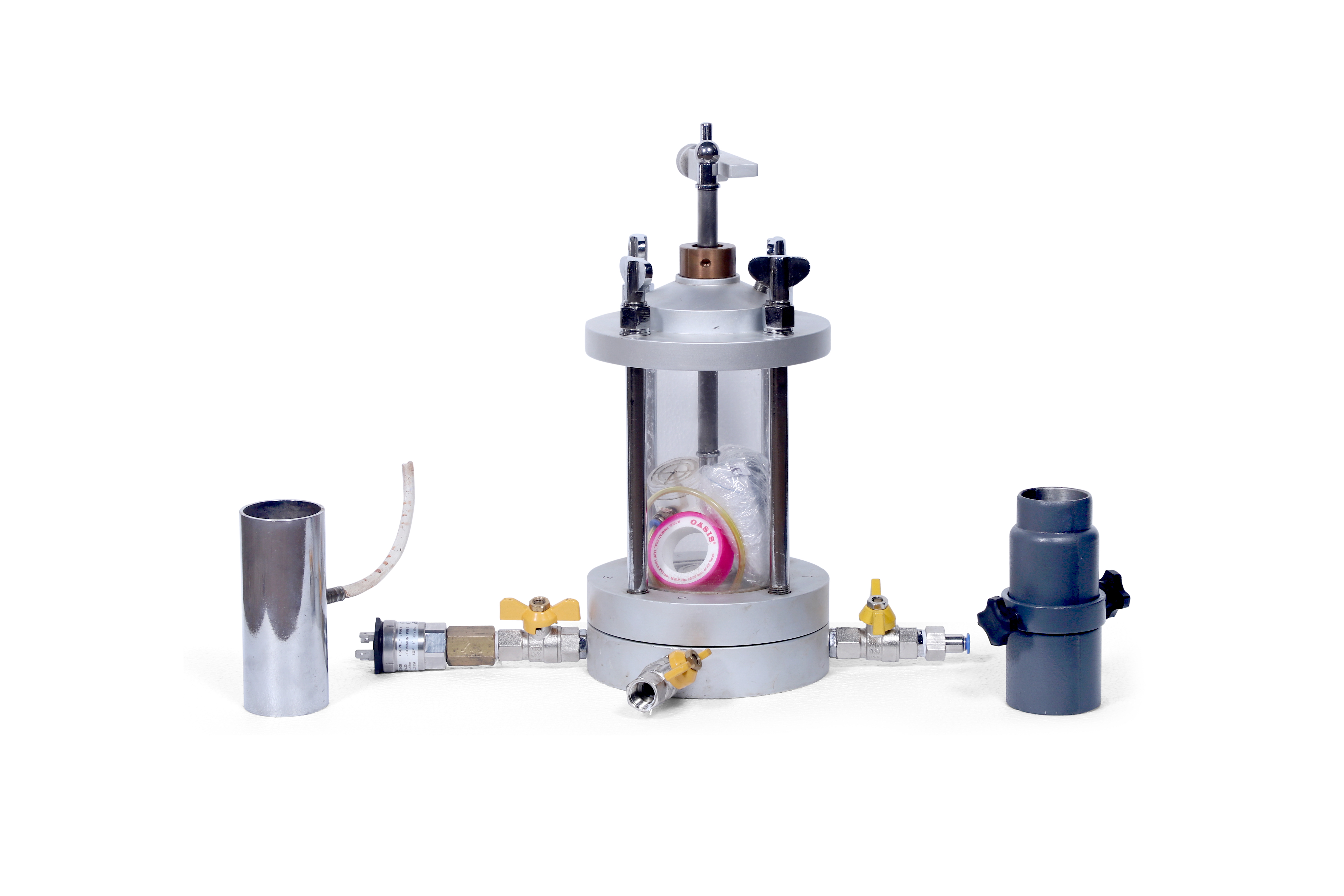

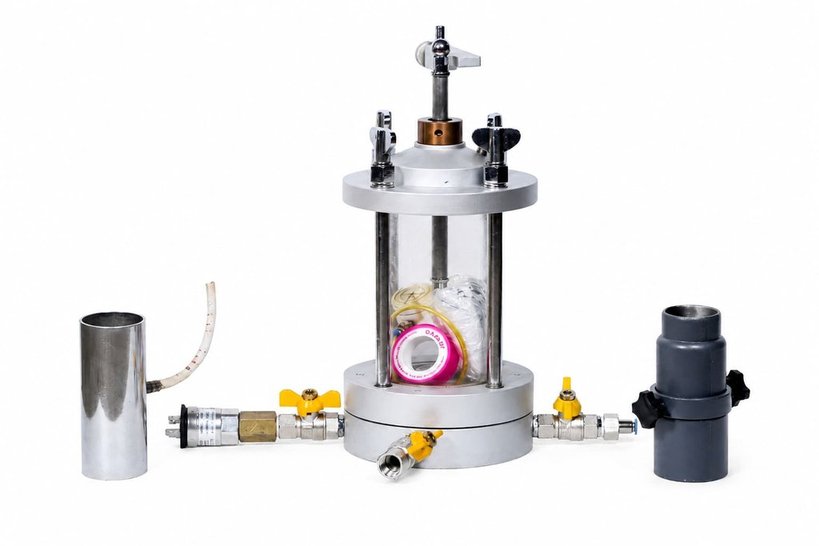

TRIAXIAL CELL - 38MM DIA SOIL SPECIMEN
Model Number : TM-172
As per IS:2720 (Part-XII). Supplied Complete with Accessories Loading pad, Plain discs, Porous Stone, Split sand former, Sheath stretcher, One dozen rubber sheaths, Synthetic Rubber 'O' rings and One Plastic drainage Tube.
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
TRIAXIAL CELL As per IS : 2720 (PART ‑XII) (Stationary Bushing) for 38mm Dia. Specimens.
- Loading pad made of Perspex for 38mm Dia. for specimens.
- Pair of plain discs made of Perspex for 38mm Dia X 6mm thick.
- Pair of porous stone for 38mm Dia. X 6mm thick.
- Split sand former for 38mm Dia. Specimen.
- Sheath stretcher for 38mm Dia. Specimen.
- 3 Nos. Rubber Sheaths for 38mm Dia. Samples.
- For synthetic rubber 'O' rings for 38mm dia. Specimen.
- One Plastic drainage tube.
Technical specification
TRIAXIAL CELL - 38MM DIA SOIL SPECIMEN
|
Overall Dimensions |
180 X 180 X 310 (L X W X D) mm |
|
Weight (Approx.) |
7.300 kg |
