DIGITAL UNCONFINED COMPRESSION TESTER

Compliance with following International Standards:

BIS 2720 (Part 10),, ASTM D2166, BS 1377-7, AASHTO T208

Physical data:

Capacity : 5 tons (50 KN)(loadframe capacity)

Load cell capacity : 2.5 kN (250 kgf)

Readout : Digital (flow and load)

Power supply : Single phase, 220 volts, 50 Hz, AC Supply

Silent Features:

1. Digital 3 Speed Unconfined Compression testing machine
2. Flow value and load on a single screen.
3. No need of separate observation on dial gauge and Proving ring
4. Facility to readout rate of loading in mm/minute.
5. Tare system to nullify initial load
6. The digital LCD display will retain the peak value until it is cleared.
7. Flow value with a least count of 0.01 mm with accuracy of 1%.
8. Load value with a least count of 0.1 kg / 0.001 KN with accuracy of 1%.
9. Back light facility to observe the readings even in the dark.
10. Four line readout showing load, flow, speed, and load at every 0.5mm flow value. (scrolling)
11. Digital selection of speed from 1.25 mm/min, 1.5 mm/min and 2.5 mm/min. No need to change the gears.
12. Over load safety at pre decided load.
13. Over travel safety.
14. Auto reverse to home position on pre set over travel
15. Auto internal calibration facility to calibrate load and flow.

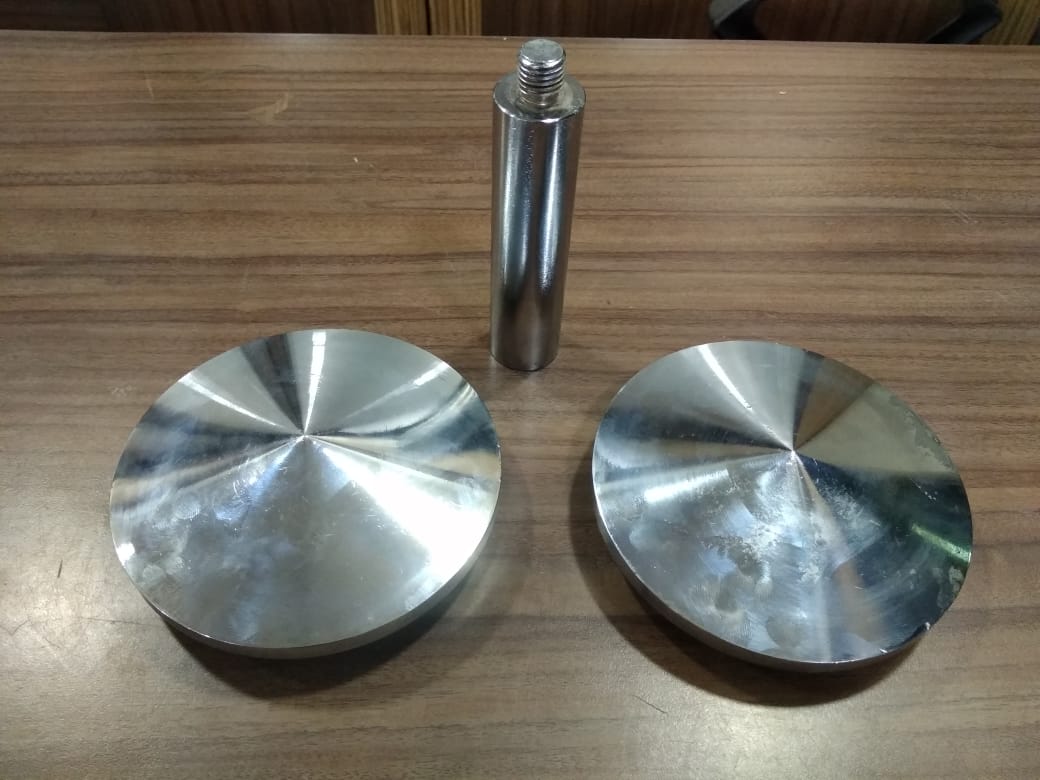

16. Complete with one pair of male/female conning tools for 38mm diameter samples, pair of cone seating.



Note:

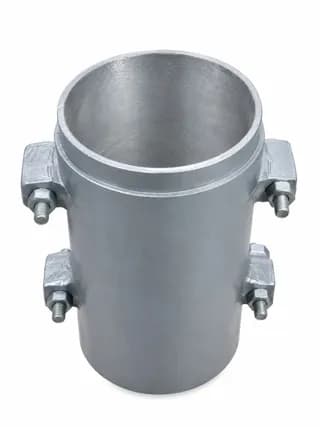

1. Coning tools and split mould for 50 mm, 75 mm and 100 mm dia available at extra cost.
2. NABL Calibration (As per ISO 17025) of Load Cell and Load Indicator at extra cost.
