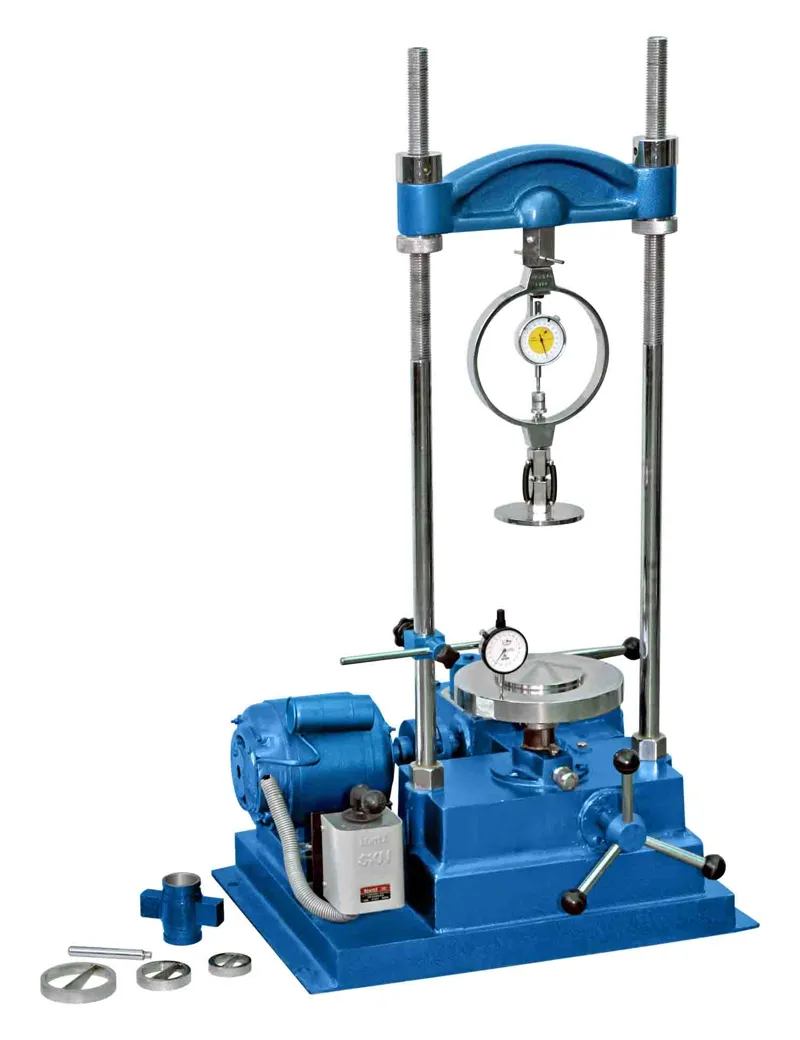

UNCONFINED COMPRESSION TESTER-(MOTORISED)-(IS 2720-PART X)

UNCONFINED COMPRESSION TESTER-(MOTORISED)-(IS 2720-PART X)

Model Number : TM-194

The Unconfined Compression Test is widely used to determine the unconfined compressive strength (UCS) of cohesive soils, which provides insight into the soil’s ability to withstand load without lateral support. The primary goal of this test is to determine the unconfined compressive strength of soil, which is a measure of its resistance to axial loading without any confining pressure. It is particularly applicable for cohesive soils (e.g., clay) that are fully saturated. As per IS : 2720 (PART‑X), IS : 4332 (PART‑V)


Compliance Standards:

IS : 2720 (PART‑X), IS : 4332 (PART‑V)

Details:

  1. A screw operated load frame capacity 50 KN (5000 kgf) with a gear box and motor drive giving 1.25, 1.5 and 2.5mm/min, rates of strain, Suitable for operating on 230 volts, single phase AC.
  2. Cone seating : One pair of cone seating
  3. Adapter : Adapter for proving ring and strain dial gauge bracket.
  4. Coning tools : One pair of male/female coning tools for 38 mm dia samples

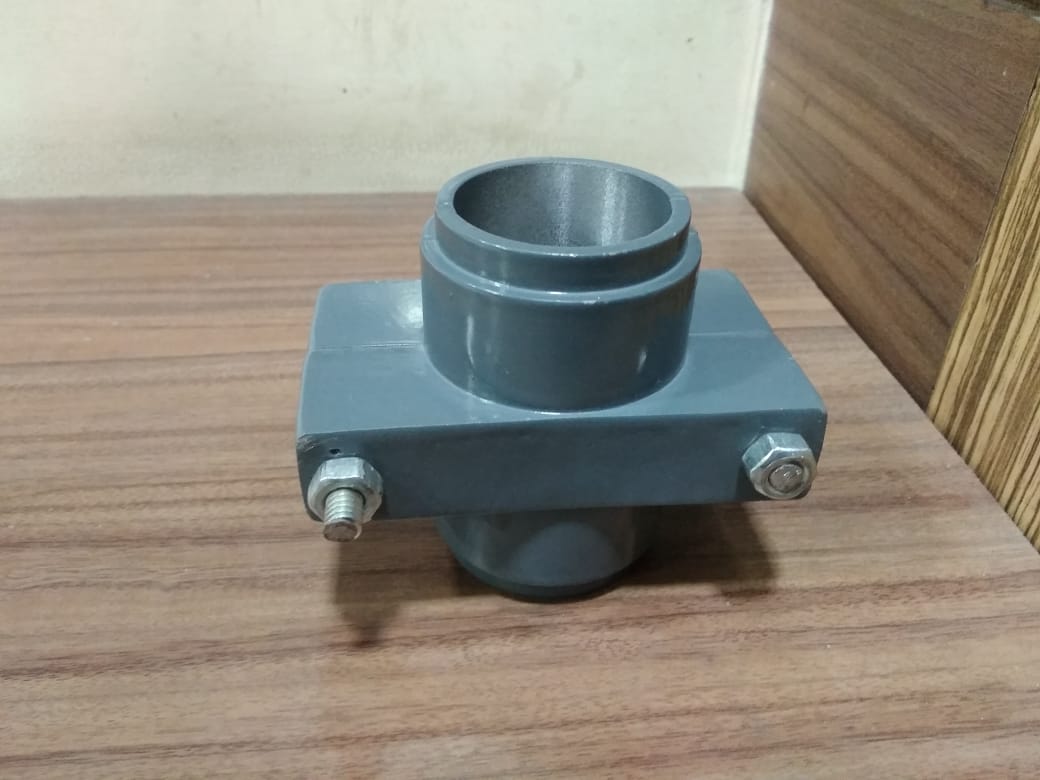

  5. Split Mould Size : 38 mm x 76 mm ‑ 1 no.
  6. Proving ring : High sensitivity proving ring 250 kgf with Calibration chart
  7. Dial gauge : 0.01 mm x 25 mm travel

Note:

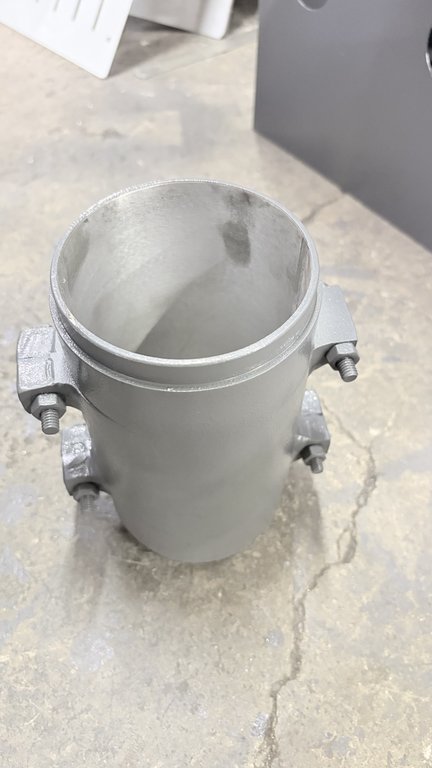

  1. Coning tools and split mould for 50 mm, 75 mm and 100 mm dia available at extra cost.
  2. Also available as per ASTM D2166/D2166M / BS 1377-7 / AASHTO T 208

Overall Dimensions

560 X 630 X 1270 (L X W X D) mm

Weight (kg)

128
