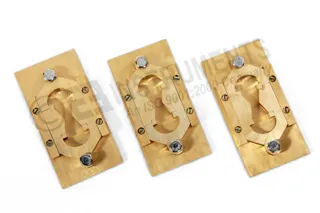

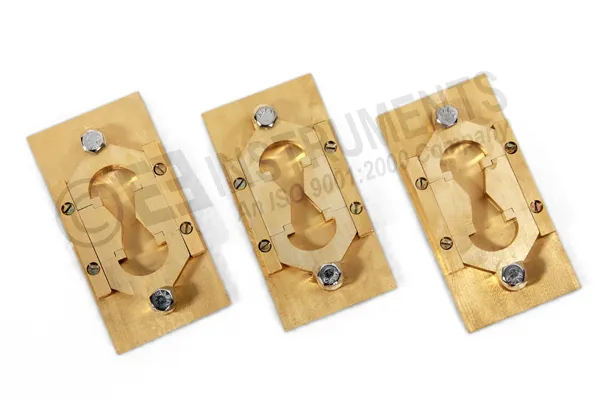

DUCTILITY MOULD - BRASS WITH BASE PLATE - PRICE PER MOULD

Ductility Mould With Base Plate

Model Number : TM-40.1

Compliance Standards : IS 1208

Ductility Mould with base plate for casting

Add to Cart
  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton

Ductility Mould with base plate for casting:

Compliance with following International Standards:
IS:1208‑1978 (FIG.1)

Construction Details:
Made of brass/Gunmetal with the shape, dimensions and tolerances as shown  in fig.1 of  IS: 1208‑1978. The ends b & b' are known as clips, and the parts a & a`, as sides of the mould. The dimension of the mould will be such that when properly assembled, it will form a briquette specimen having the following dimensions.
  • Total Length  = 75 +/‑ 0.5mm
  • Distance between clips   = 30 +/‑ 0.3mm
  • Width of mouth of clips  = 20 +/‑ 0.2mm
  • Width of minimum cross   = 10 +/‑ 0.1mm
  • Section C half way between clips)
  • Thickness Arrangement    = 10 +/‑ 0.1m
