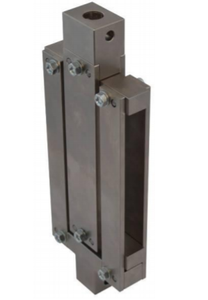

SHEAR BOND JIG-COMPRESSION METHOD-EN 1324, IS 15477, EN 12003
Model Number : EIE-PT-115TA.3C
AS PER BIS 15477
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
Compliance Standards:
IS 15477, EN 1324, EN 12003, EN 12004
Applications:
Shear Bond Jig tests for the shear strength test of dry-set cement mortar (Cemntitious Mortar)
Principle:
For this test, the dryset mortar samples are stressed in shear compression to failure using a compression test machine paired with a shear bond jig. The sample is clamped in the vice jig and tested according to the standard procedure.
Details:
- Jaws are adjustable
- Fabricated from Steel Material
- Supplied complete with upper compression plate
Note:
For checking the shear adhesion strength of the tile adhesive the UTM shall be capable of applying the compression load with displacement @ 5 ± 0.5 mm/min
Technical specification
SHEAR BOND JIG-COMPRESSION METHOD-EN 1324, IS 15477, EN 12003
|
Max. Load |
20 kN |
|
Jaw Opening Size |
12 - 45 mm |
|
Body |
Steel Material |
|
Temp Range |
0 … +70°C |
|
Weight |
13-15 kg |
|
Scope of delivery |
Fixture with compression plates |
