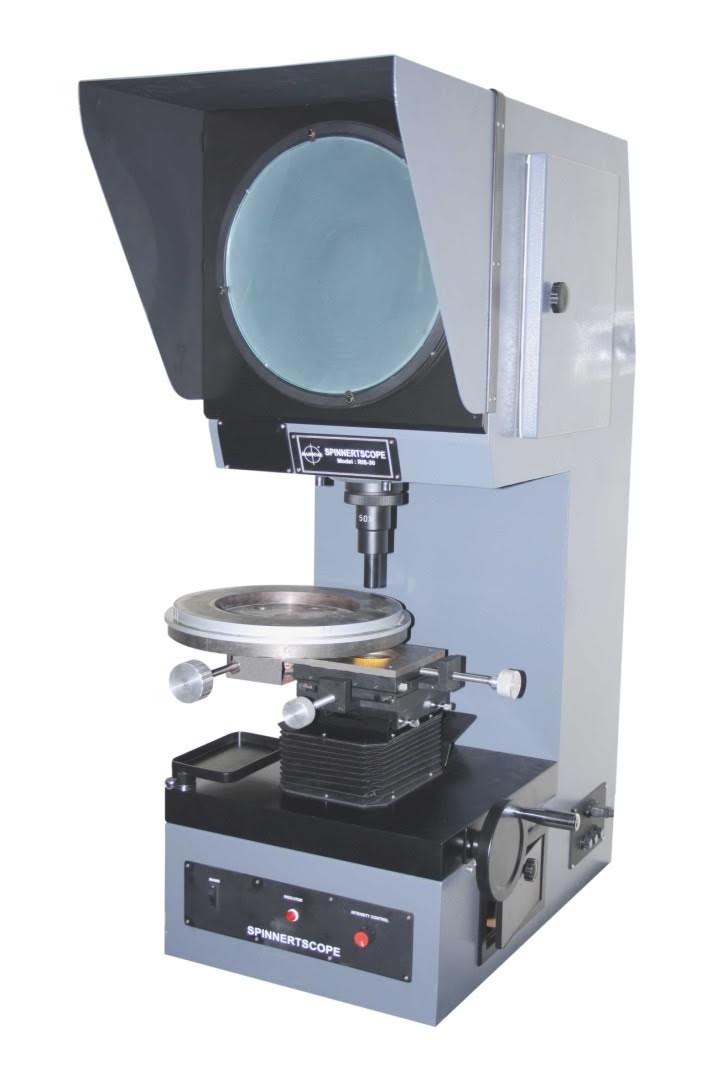

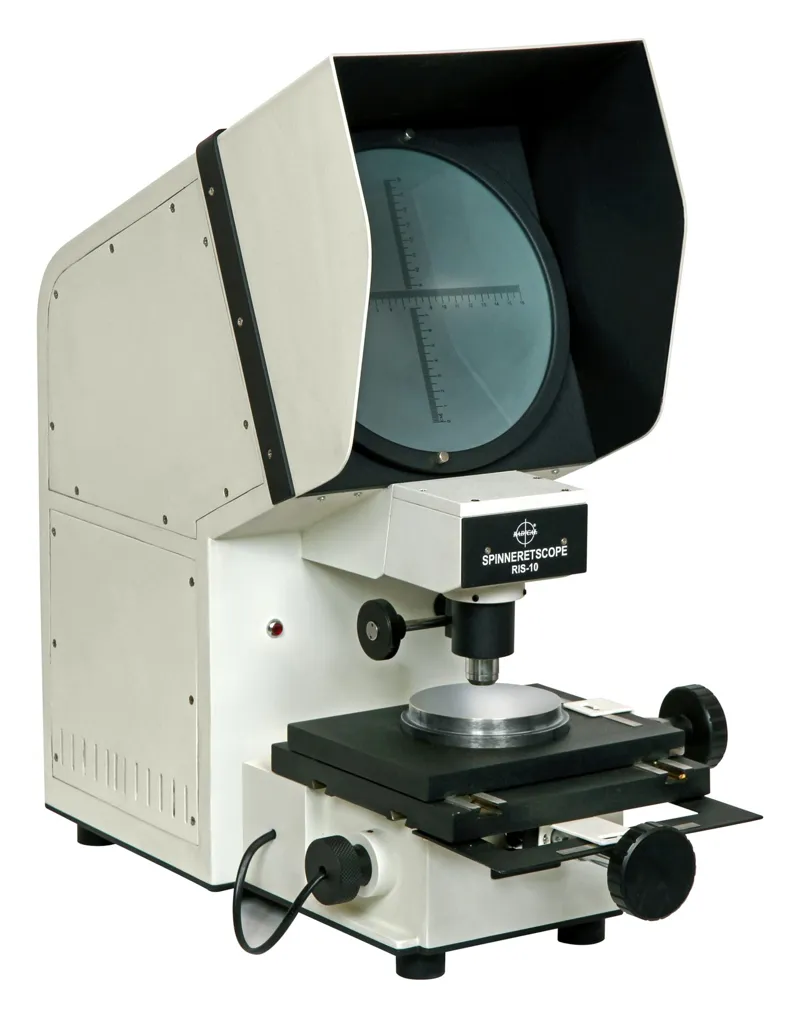

HIGH PRECISION MICROSCOPE - SPINNERETSCOPE
Model Number : EIE-POY-07RIS30
Senior Spinnertscope - 'CE Marked'. Detailed specification as follows:
SCREEN DIAMETER
- 150 MM
- 200 MM
- 300 MM
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
Specially designed to check the blockage in spinnerets, equipped with Halogen Projection lamp of 100 watts workable on 220 volts mains, cooling fan provided inside the base for continuous working. Arrangement for easy and convenient transverse movement of the spinnerets is provided both in X & Y direction.
Technical specification
Screen Diameter |
300 mm with graduation on X & Y axises. |
Magnification on the Screen |
50x. |
Field of View |
6 mm (Focusing by Worm & Worm Gear) |
