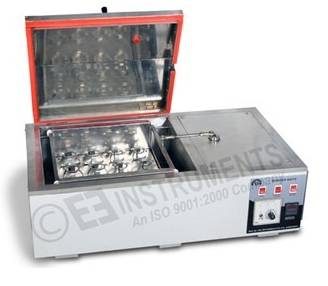

WATERBATH INCUBATOR SHAKER-SHAKING WATERBATH

WATERBATH INCUBATOR SHAKER-SHAKING WATERBATH

Model Number : EIE-405DP30

Double walled, inner chamber made of S.S.304 - fully argon welded, Outer chamber of CRC-powder coated, Rockwool insulation, Can take 9 flasks of 100 ml or 5 Flaks of 250 ml or can be customized as per the customer requirements, Digital Temp.and RPM indication, Can be operated in Air or Water. Temp.range from 5 °C above ambient to 99 °C. To and Fro Ocillation of shaking tray, electronic speed controlled between 40-150 oscillation per minute. Further description of item is as per follows.

Add to Cart
  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton

Double walled, inner chamber made of S.S.304 - fully argon welded, Outer chamber of CRC-powder coated, Rockwool insulation, Can take 9 flasks of 100 ml or  5 Flaks of 250 ml or can be customized as per the customer requirements, Digital Temp.and RPM indication, Can be operated in Air or Water. Temp.range from 5 °C above ambient to 99 °C. To and Fro Ocillation of shaking tray, electronic speed controlled between 40-150 oscillation per minute. Further description of item is as per follows.


Applications :

  1. Used for shaking of flasks in indirect water controlled environment
  2. Applications ranging from Pharmaceuticals, Petrochemicals, General Laboratory to textile industries etc.


Salient Features :

  1. Unique design
  2. Aesthetic exterior appearance
  3. Ease of Maintenance and easy to operate
  4. Double walled chamber design
  5. Improved version of waterbath incubator shaker
  6. Can operate in both - Air and Water Media
  7. No leakage of water or no replacement of shaking tray
  8. The bath is ARGON WELDED to ensure lifetime leakage free performance. (No soldering )
  9. Bath is fitted with specially designed dome type hinged lid made of stainless steel material for convenient operation.
  10. Bath Panel consists of 2 pilot LED lamps & on/off switch.
  11. Bath is also equipped with a digital RPM Indicator for indication of shaking speed
  12. The chamber has an oscillating tray, riding on ball rollers and drive motor with variable speed control.


Technical specification
up-botton
SHAKING WATERBATH - 5 X 250 ML- INNER S.S.

Construction

Double Walled

Inner chamber

Fabricated from polished stainless steel material S.S. - 304 grade

Exterior body

Fabricated from Mild steel material

Paint

Powder Coating

Insulation

Glass wool insulation between inner chamber and exterior body to prevent direct thermal heat loss

Temperature Range

From 5 °C above ambient to 99 °C

Heating

Heated by open type Air heaters placed at the bottom of the inner chamber.

Temperature controller

Microprocessor based Auto-Tune PID Digital Temperature controller cum indicator

Temperature Stability

± 0.5 °C

Temperature Accuracy

± 0.5 °C

Heater control

By control switch installed in the control panel

Heater Status

Control indication lamp

Shaking

Achieved by PMDC Geared Motor

Motor RPM

40 - 150 RPM

Motor speed display

Digital RPM Indicator

Speed control

By electronic Speed Regulator

Shaking racks

9 flasks of 100 ml or 5 Flaks of 250 ml

Shaking racks material

Manufactured from polished stainless steel material S.S. - 304 Grade

Bath chamber Size

15” x 16” x 8” cm (W x D x H)

Bath Volume

30 Liters

Power Consumption

02 KW

Operates on

230 Volts, 50 Hz, Single phase, AC Supply

Supplied complete with Top Stainless Steel Pyramidal Lid

Aesthetic outer appearance

Unique design
