- To determine the Tensile Adhesion Strength for cementitious adhesive
- To determine Shear Adhesion Strength of Dispersion & Reaction resin adhesive
- To determine Flexural strength (Degree of deformability) of Cementitious Adhesive and Grouts Material.

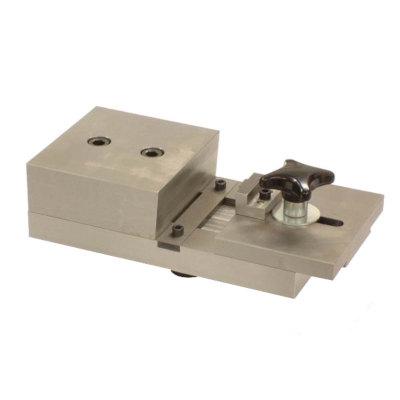

- Shear adhesion Jig/Fixture as per Figure 6 of BIS 15477 (Please see optional accessories)
- Tensile adhesion bond Jig/Fixture as per Figure 1 & 2 of BIS 15477 (Please see optional accessories)
- For checking the tensile adhesion strength of the tile adhesive, the UTM will be capable of applying the load to the pull head plate @ 250 ± 50 N/sec (Pull headed plate set, trowel and concrete slab shall be procured at extra cost)
- For checking the shear adhesion strength of the tile adhesive, the UTM will be capable of applying the compression load with displacement @ 5 ± 0.5 mm/min (Shear bond jig compression type shall be procured at extra cost)
- .For checking the deformation of the tile adhesive, the machine will be capable of applying the anvil to the test piece @ 2 mm/min (Deformation jig with additional mixing and compacting accessories shall be procured at extra cost)

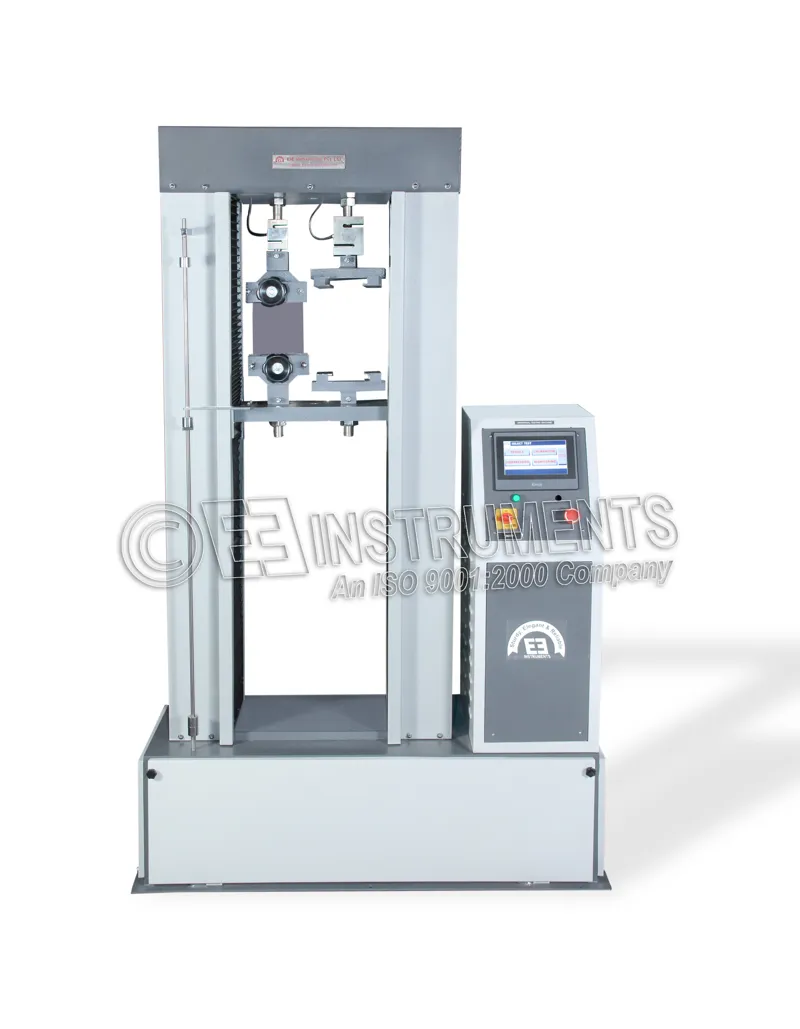

- Floor standing model
- Aesthetic exterior appearance
- Strong and durable load frame
- Simple and easy to understand servo operation
- Fulfills complete test requirements of EN 1348, EN 12004, EN 12003, BS 5980, BIS 15477, ANSI 118.1 Standards
- Equipped with Twin (Dual) Load cells - 5KN & 30KN
- Equipped with Servo Motor, Servo drive, Touch screen HMI & PLC Controller
- Auto Load rate/Strain rate control using Imported Servo drive
- On-screen one touch Easy load cell selection
- Permanently mounted calibrated load cells
- Overload & extension protection parameter for mechanical safety by help of limit switches
- Also fitted with Emergency stop button to stop the test in between
- Automatic electronic controllable movement of Cross-head travels (START-STOP-UP-DOWN)
- Auto-stop / Return of cross heads to home position as and when sample breaks
- Speed Variation by dedicated Servo Drive from 0.01 mm/min to 500 mm/min
- Extension indication with least count of 0.01 mm through accurate & precise optical encoders
- Dedicated PC Software with RS-232 Interface & connectivity cable
- Facility to export the generated data to Excel/PDF files for further analysis
- Also, Supplied complete with Instruction manual, Test report and calibration certificate
- RS 232 interface with WINDOWS based software to conduct test and keep record of generated data with Graphical Representation
- Also, keep record of generated results i.e. Yield Load, Yield Extension, Break Load, Break Extension, and Modulus of Elasticity
- Line, Doted line, etc facility in graph
- Graph Grids color combination facility
- Graph zooming facility
- Individual graph comparison facility
- Graph overlapping facility for analysis of material property
- Auto scaling facility
- Company logo insertion facility
- Software can run various tests and can recall data for any test done in history. (If Saved)
- Software is Menu Driven for easy navigation through tests.
- Test reports and graphs directly printed on terminal printer through direct print commands after the test is completed.
- Data and Result Units Selectable
- User can operate the machine directly from the software itself
- User can export the generated data in various file formats such as i.e. Excel, PDF etc
- Large Storage capacity (More than 50,000 tests) Depending upon Hard Disk capacity.
Model |
Floor Standing Model |
Paint |
Powder Coating |
Structure |
Heavy duty frame structure, Gear box and "servo motor” driven machine. |
Load Capacity |
3000 Kgf (3 Ton) & 500 Kgf (0.5 Ton) |
Load Least Count |
0.01 KN and 0.1 KN respectively |
Vertical daylight in mm |
1100 mm |
Horizontal daylight in mm |
400-450 mm |
Cross head travel |
1000 mm |
Display |
7” touch screen HMI Display |
Controller |
PLC Controller system |
Limit switch |
For protection of cross head travel |
Speed |
Variable by servo drive (Danfoss make) with close loop system. |
Speed Range |
1 mm/min - 500 mm/min |
Encoder |
For elongation indication, 500 PPR |
Overload Protection |
Over load excess elongation protection provided. Over Voltage protection |
Unit Selection |
Newton / Kgf / KN / MPa / PSI |
Software CD |
Software CD will be provided with machine. |
Interface |
RS 232 interface with PC Connectivity |
Indication parameters |
Maximum Load, Maximum Elongation, Selected Load Cell, Breaking Load, %Elongation, Current Load |
Operation on |
230 volts, 50 hz, single phase, AC Supply |
Note |
In addition to this we request you to buy Personal Computer with CD Rom & Serial interface COM Port (COM1 or COM2). |
