Compliance Standards

BIS 15477, EN 1348, EN 12003, EN 12004, BS 5980 (1980), ANSI 118.1, ISO 13007, BIS 15477:2019

Applications

1. To determine the Tensile Adhesion Strength for cementitious adhesive
2. To determine Shear Adhesion Strength of Dispersion & Reaction resin adhesive
3. To determine Flexural strength (Degree of deformability) of Cementitious Adhesive and Grouts Material.

Supplied without the following fixtures / Jaws / Test Grip

1. Shear adhesion Jig/Fixture as per Figure 6 of BIS 15477 (Please see optional accessories)
2. Tensile adhesion bond Jig/Fixture as per Figure 1 & 2 of BIS 15477 (Please see optional accessories)

Test Requirement as per BIS 15477-2019, EN 1348 & ANSI 118.1

• For checking the tensile adhesion strength of the tile adhesive, the UTM will be capable of applying the load to the pull head plate @ 250 ± 50 N/sec (Pull headed plate set, trowel and concrete slab shall be procured at extra cost)
• For checking the shear adhesion strength of the tile adhesive, the UTM will be capable of applying the compression load with displacement @ 5 ± 0.5 mm/min (Shear bond jig compression type shall be procured at extra cost)
• .For checking the deformation of the tile adhesive, the machine will be capable of applying the anvil to the test piece @ 2 mm/min (Deformation jig with additional mixing and compacting accessories shall be procured at extra cost)

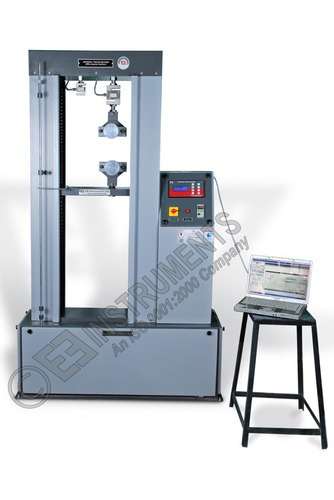

Salient Features:

• Floor standing model
• Aesthetic exterior appearance
• Strong and durable load frame
• Simple and easy to understand operation
• Fulfills complete test requirements of EN 1348, EN 12004, EN 12003, BS 5980, BIS 15477, ANSI 118.1 Standards
• Equipped with Twin (Dual) Load cells - 5KN & 30KN
• Equipped with AC Induction Motor, AC drive for speed variations, & Microprocessor based controller with LCD Display Screen
• Auto Load rate/Strain rate control using AC drive
•  Load cell selection through Load cell selector switch
• Permanently mounted calibrated load cells
• Overload & extension protection parameter for mechanical safety by help of limit switches
• Also fitted with Emergency stop button to stop the test in between
• Automatic electronic controllable movement of Cross-head travels (START-STOP-UP-DOWN)
• Auto-stop / Return of cross heads to home position as and when sample breaks
• Speed Variation by dedicated Servo Drive from 10 mm/min to 400 mm/min
• Extension indication with least count of 0.01 mm through accurate & precise optical encoders
• Dedicated PC Software with RS-232 Interface & connectivity cable
• Facility to export the generated data to Excel/PDF files for further analysis
• Also, Supplied complete with Instruction manual, Test report and calibration certificate

Specifications of Dedicated Software:

• RS 232 interface with WINDOWS based software to conduct test and keep record of generated data with Graphical Representation
• Also, keep record of generated results i.e. Yield Load, Yield Extension, Break Load, Break Extension, and Modulus of Elasticity
• Line, Doted line, etc facility in graph
• Graph Grids color combination facility
• Graph zooming facility
• Individual graph comparison facility
• Graph overlapping facility for analysis of material property
• Auto scaling facility
• Company logo insertion facility
• Software can run various tests and can recall data for any test done in history. (If Saved)
• Software is Menu Driven for easy navigation through tests.
• Test reports and graphs directly printed on terminal printer through direct print commands after the test is completed.
• Data and Result Units Selectable
• User can operate the machine directly from the software itself
• User can export the generated data in various file formats such as i.e. Excel, PDF etc
• Large Storage capacity (More than 50,000 tests) Depending upon Hard Disk capacity.

Commissioning of universal testing machine:

Customer has to prepare foundation for the machine as per the drawings supplied by the manufacturer. Also, all electrical connections to be completed before the machine arrive and shall render assistance of semi/unskilled labor to complete the commissioning part. Unloading the machine and placing the same on the foundation has to be arranged at the customer end.

NOTE :

THIS MACHINE IS SUITABLE TO TEST TILE ADHESION UPTO TYPE 4. IF TESTING OF TYPE 5 REQUIRED THEN HIGHER MACHINE CAPACITY IS REQUIRED.
