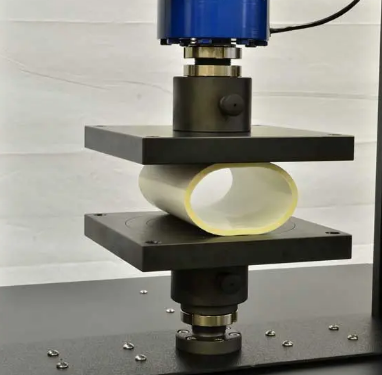

ASTM D2412-COMPRESSION FIXTURE-FOR PVC PIPE RING STIFFNESS TEST & FLATTENING TEST

ASTM D2412-COMPRESSION FIXTURE-FOR PVC PIPE RING STIFFNESS TEST & FLATTENING TEST

Print

More Information
Technical specification
Accessories
Spares

More Information

Compliance Standards

IS 12235 (P-19), ASTM D2412

Applications

To determine the ring stiffness and flattening characteristic of PVC, UPVC & CPVC Pipes

Details

Fabricated from Mild Steel Material
Powder coated in attractive shades
Platen size : 350 x 350 x 15 mm thick

Technical specification

ASTM D2412-COMPRESSION FIXTURE-FOR PVC PIPE RING STIFFNESS TEST & FLATTENING TEST

Tensile force capacity	1 kN
Specimen thickness	0 - 7 mm
Clamping surface	Pyramid (serrated) faced roller, 25mm Ø, steel, nickel plated
Temperature Range	0°C - +70°C (depending on jaws)
Body	Anodized aluminium
Weight	650 Grams
