ASTM D3950 - CAPSTAN GRIP FOR TENSILE TEST OF NON METALLIC STRAPS, SEAT BELTS AND WEBS
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
Compliance Standards
ASTM D3950, ASTM D6775
Applications
To carry out tensile test of Non metallic straps, webs, ribbons, seat belts and other high strength belts and tapes.
Details
- Designed to permit predetermination of specimen length
- Allow quick, convenient loading.
- Minimizes jaw breaks
- Easy to use and handle
- Easy to clean
- Scope of supply : 01 Pair
Operating Principle

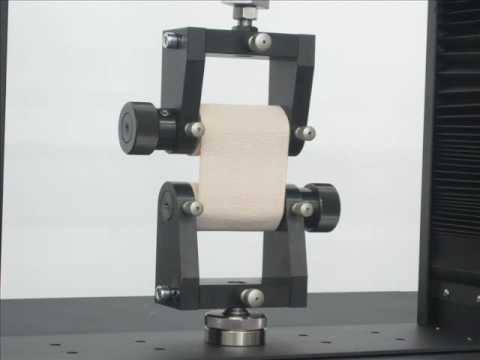

These webbing capstan grips incorporate an ingenious double capstan design which provides for fast, easy loading together with a gripping action that results in proper breaks in the full gauge length of the specimen. A split capstan has been arranged so that it can be rotated within a completely separate outer capstan. To load a specimen simply insert an end into the inner split capstan and then rotate this through 360°, and lock in position. This distributes the load over both the inner and outer capstan, thereby minimizing failures at the bite. These grips offer positive relief from the awkward, time consuming capstan loading, and recurring jaw breaks that are usually associated with the testing of seat belts and other high strength belts and tapes.
Technical specification
|
Tensile force capacity |
50 kN |
|
Specimen thickness |
0 - 5 mm |
|
Design Structures |
Offset double drum type |
|
Clamping surface |
Smooth |
|
Working principle |
Mechanical, Double Capstan |
|
Temperature Range |
0°C - +70°C (depending on jaws) |
|
Body |
Heavy duty cast iron / Mild Steel |
Accessories
CTM SOFTWARE WITH PC INTERFACE
Direct analytical reports on computer, Auto generation of load/time graph. Auto calculation of average of 3 readings, Two way communication facility - Can operate the machine through PC, Name of Issuing Lab and customer name can be inserted, Auto date and time of testing with age of testing (from the date of sample receipt), Transfer of result to PC on pressing ENT key. Results can be printed in EXCEL format. Data and design subject to change due to continuous R&D
SPLITTING TENSILE ATTACHMENT FOR CONCRETE CUBE AND PAVER BLOCK - BIS 516, BIS 15658, ASTM C496
This is an attachment to Compression Testing Machine. Compliance Standards, IS: 516 – 1959, IS:5816, IS: 1199-1959, SP: 23-1982, IS: 10086-1982, ASTM C496, BS1881, BIS 15658. Detailed specification mentioned in the long description.
LOAD FRAME FOR 500 KN - CTM AUTOMATIC-
This is an attachment to Automatic Compression Testing Machine of 1000 / 2000 / 3000 kN Capacity. The Pumping unit is shared by both the Load Frames. A valve is provided on the back of the Pumping unit to switch Flow of Hydraulic Oil either to 500 KN CTM Load Frame or to higher Capacity Load Frame. The attachment enable us test of Cement Cubes in addition to Concrete cubes without compromising the accuracy.
ELECTRONIC WEIGHING BALANCE-20 KG-1 GM-WITH INTERFACE TO CONNECT CTM
High Impact FRP Body, wide platform size 250 x 300 mm, with built in battery back up and with certificate of stamping from W&M department. Multi function and Auto calibration with external weight. We can also offer economic weighing balance having ABS body and small platform size of 200 x 250 mm.
Spares
