ASTM D412, D624, ISO 283-ECCENTRIC ROLLER GRIP-FOR VULCANIZED RUBBER, ELASTOMERS, RUBBER CONVEYOR BELTS, FILMS, SHEETS
Model No: None

None
Compliance Standards
ASTM D412, ISO 37, EN ISO 283, ASTM D378, BIS 1891

Applications
To carry out tensile test of vulcanized rubber, elastomers, Rubber conveyor & elevator belt, Films, Sheets

Details

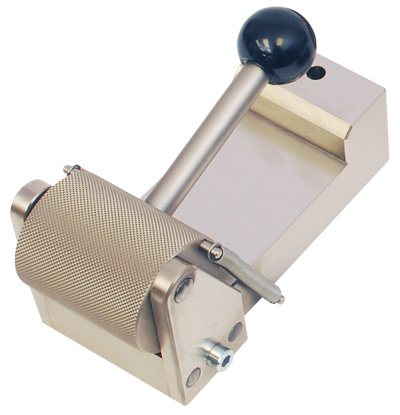

  • Self tightening type Eccentric roller grip
  • Self-tightening grips are ideal for materials that thin as they are stretched such as elastomers and other soft materials.
  • Enable fast loading of plastics, fabrics, flexible films, rubber Etc
  • Easy to use and handle
  • Easy to clean
  • Scope of supply : 01 Pair

Tensile force capacity 1 kN
Specimen thickness 0 - 7 mm
Clamping surface Pyramid (serrated) faced roller, 25mm Ø, steel, nickel plated
Temperature Range 0°C - +70°C (depending on jaws)
Body Anodized aluminium
Weight 650 Grams
